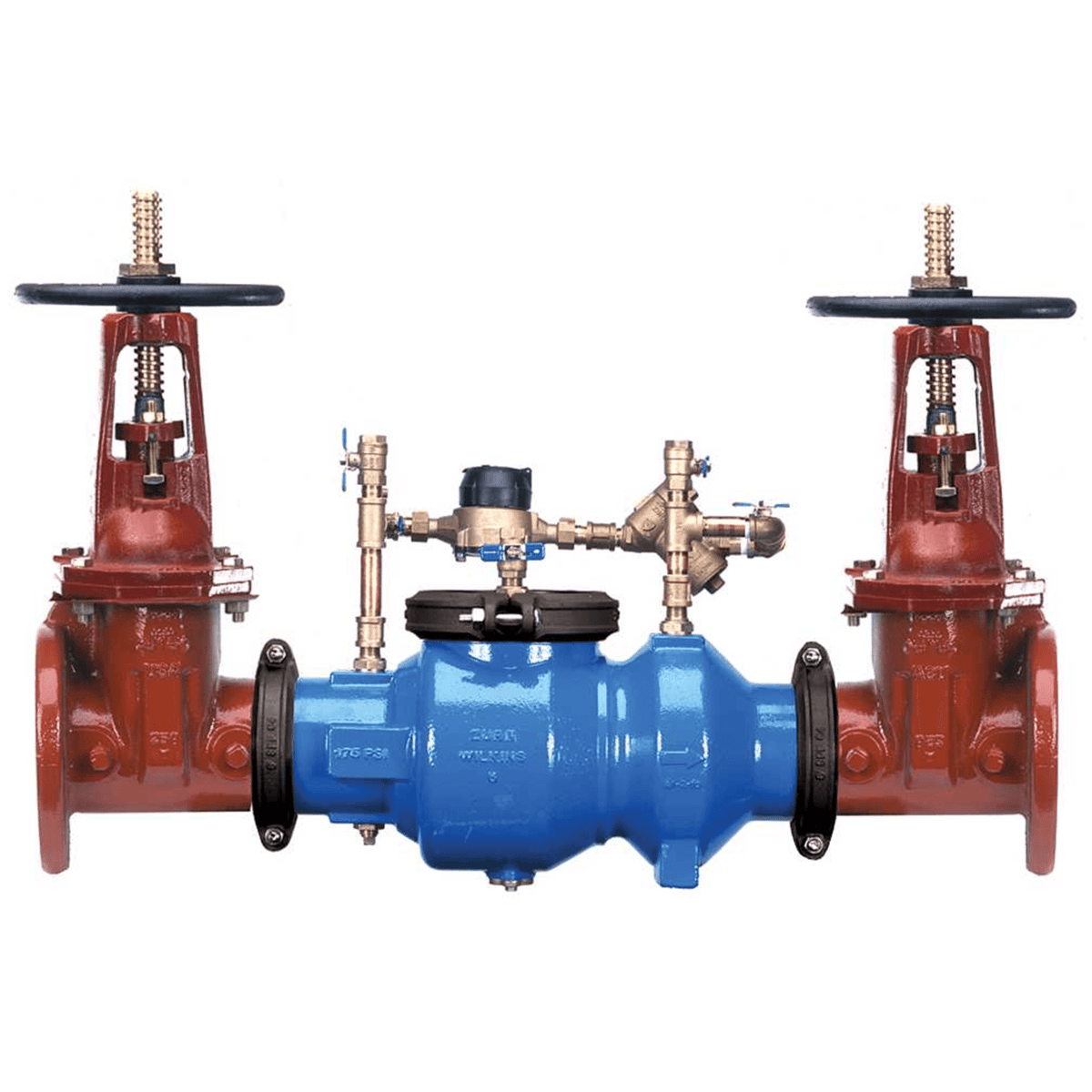

Zurn 4" 350ADA Double Check Detector Backflow Preventer with Sensus cu.ft Meter, 4-350ADASCFM
Description
The 4" 350ADASCFM Double Check Detector Backflow Assembly, with flanged end OS&Y gate valves and sensus cubic feet meter, protects against both backsiphonage and backpressure in low health hazard, fire protection applications. Featuring a metered bypass system, the 350ADA efficiently detects leaks and any unauthorized water use. Its single access cover reduces down time and added costs associated with maintenance and repairs. Lighter in weight than the 350DA Model, the 350ADA features a short lay-length for compact, versatile installation in horizontal or vertical positions.
Features
Horizontal or vertical installation offers versatility and reduces installation time
Leak and unauthorized water use detection decreases costs over time
Patented Compound Check offers reliable performance and improved flow characteristics
Lack of threads or taps in cover and body reduces corrosion exposure
ASSE® Listed 1048
AWWA Compliant C510 (with gates only), and C550
CSA® Certified B64.5
UL® Classified
Product Specifications
Body Material Type | DUCTILE IRON |
Outlet Valve Type | Flanged |
Bypass Meter (Y/N) | N |
Type of Check Valve | BACKFLOW PREVENTER |
Valve Size (IN) | 4 |
Working Pressure (PSI) | 175 |
Detector (Y/N) | Y |
Brand | Zurn |
Application | WATER |
Valve Type | GATE |
End Connection 1 | FLANGED |
