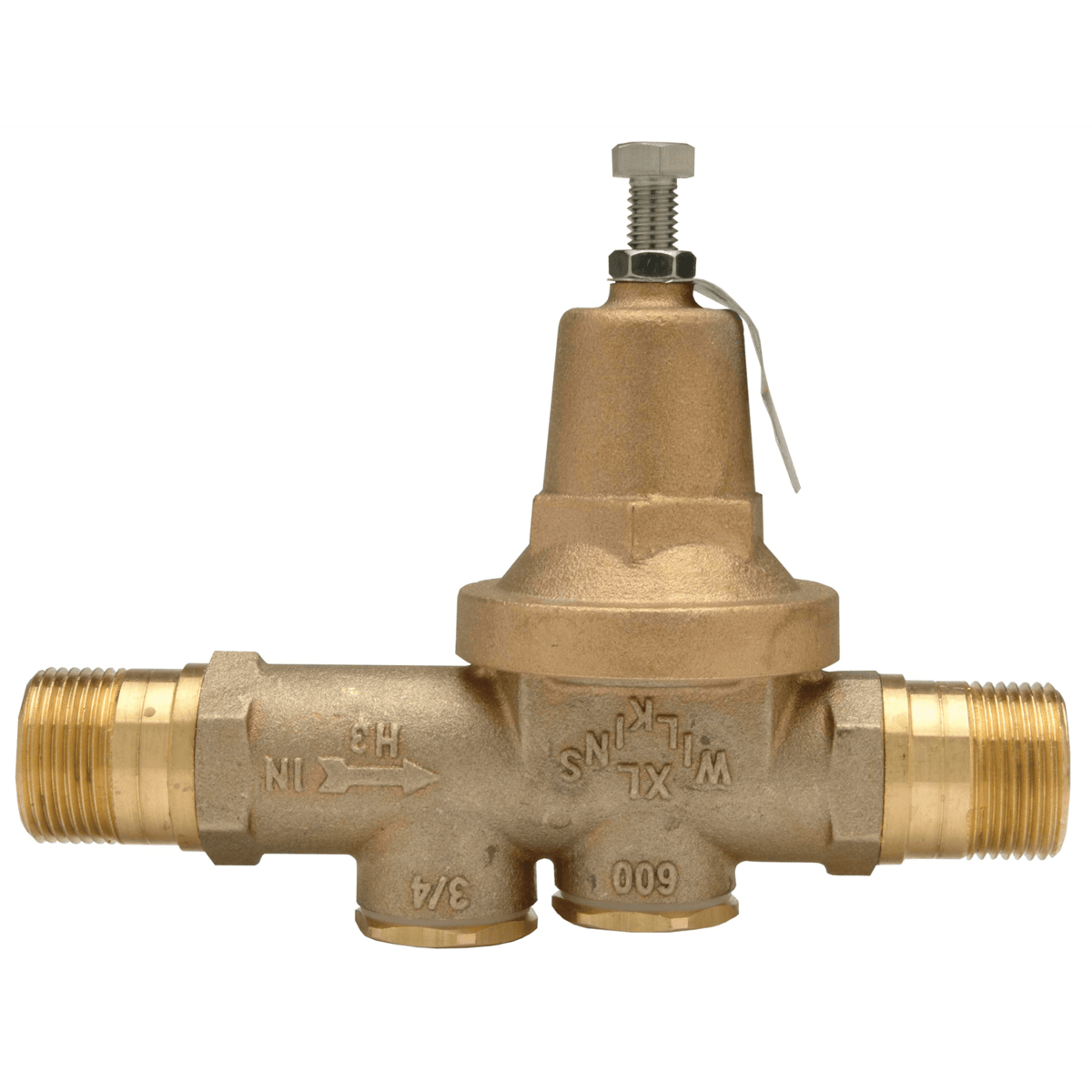

Zurn 3/4" 600XL Pressure Reducing Valve with Double Male Meter Connections, 34-600XLDMHR

By Zurn
$410.95 | EA
Product #: 112527
Mfr. Part #: 34-600XLDMHR

Out of Stock - Ships in 14 Days

Back

Description

The 3/4" 600XLDMHR Pressure Reducing Valve with Double Male Meter Connections handles sandy, debris-laden water systems for meter setter applications, and is equipped with a sealed cage for below grade applications. It meets compliance with universal plumbing code. The stainless steel strainer includes a standard 20 mesh configuration and separate-access cover for simplified cleaning, while the bronze threaded bell and stainless steel adjustment bolt provide superior corrosion-resistance and speed access to the internals – together, cutting labor time up to 50%. Internal components of the 600XLDMHR utilize a balanced design, providing accurate downstream pressure without consideration of the incoming pressure. It includes a high range of 75 psi to 125 psi, factory set at 85 psi.

Features

  • Stainless steel strainer screen features single-cap removal for reduced cleaning time

  • Durable construction ensures low maintenance and lifecycle costs

  • Inlet pressure changes with balanced design features to protect the system

  • Bronze threaded bell and stainless steel adjustment bolt protect against corrosion

  • ASSE® Listed 1003

  • IAPMO® Listed

  • CSA® Certified

  • City of Los Angeles Approved

Product Specifications

Body Material Type BRASS
Pressure Range 75 - 125 PSI
Pressure Setting 85 PSI
Valve Size (IN) 3/4
Flow Rate (Max) (PSI) 300
Application WATER
Brand Zurn
End Connection 2 MALE METER THREAD
End Connection 1 MALE METER THREAD
