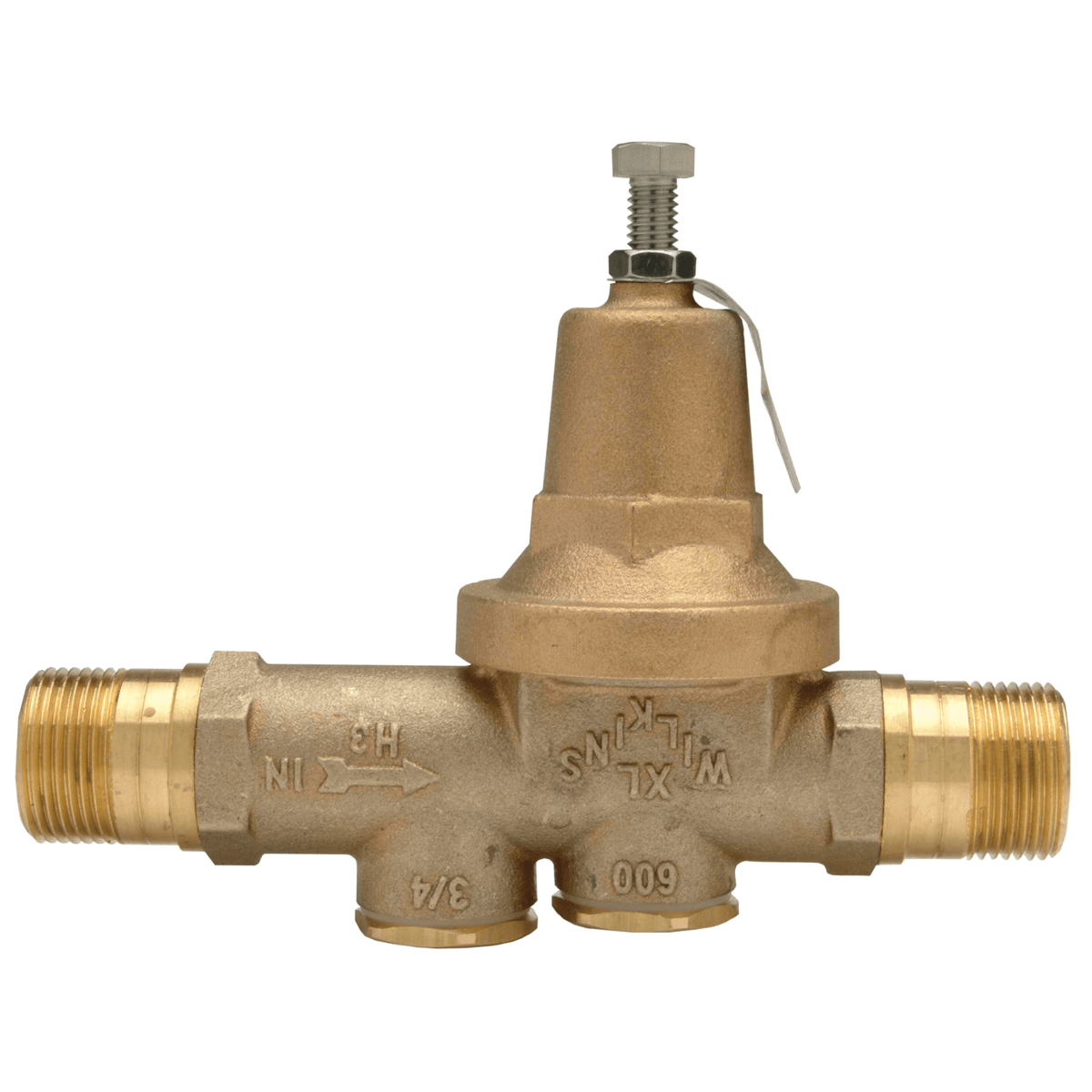

Zurn 3/4" 600XL Pressure Reducing Valve with Double Male Meter Connections, 34-600XLDM

By Zurn
Zurn 3/4" 600XL Pressure Reducing Valve with Double Male Meter Connections, 34-600XLDM

Call For Pricing

Product #: 112526
Mfr. Part #: 34-600XLDM

Out of Stock - Ships in 14 Days

Back

Description

The 3/4" 600XLDM Pressure Reducing Valve with Double Male Meter Connections handles sandy, debris-laden water systems for meter setter applications, and is equipped with a sealed cage for below grade applications. It meets compliance with universal plumbing code. The stainless steel strainer includes a standard 20 mesh configuration and separate-access cover for simplified cleaning, while the bronze threaded bell and stainless steel adjustment bolt provide superior corrosion-resistance and speed access to the internals – together, cutting labor time up to 50%. Internal components of the 600XLDM utilize a balanced design, providing accurate downstream pressure without consideration of the incoming pressure.

Features

  • Stainless steel strainer screen features single-cap removal for reduced cleaning time

  • Durable construction ensures low maintenance and life cycle costs

  • Inlet pressure changes with balanced design features to protect the system

  • Bronze threaded bell and stainless steel adjustment bolt protect against corrosion

  • ASSE® Listed 1003

  • IAPMO® Listed

  • CSA® Certified

  • City of Los Angeles Approved

Product Specifications

End Connection 2 MALE METER THREAD
End Connection 1 MALE METER THREAD
Body Material Type BRASS
Valve Size (IN) 3/4
Flow Rate (Max) (PSI) 300
Application WATER
Brand Zurn
Pressure Range 25 - 75 PSI
Pressure Setting 50 PSI
