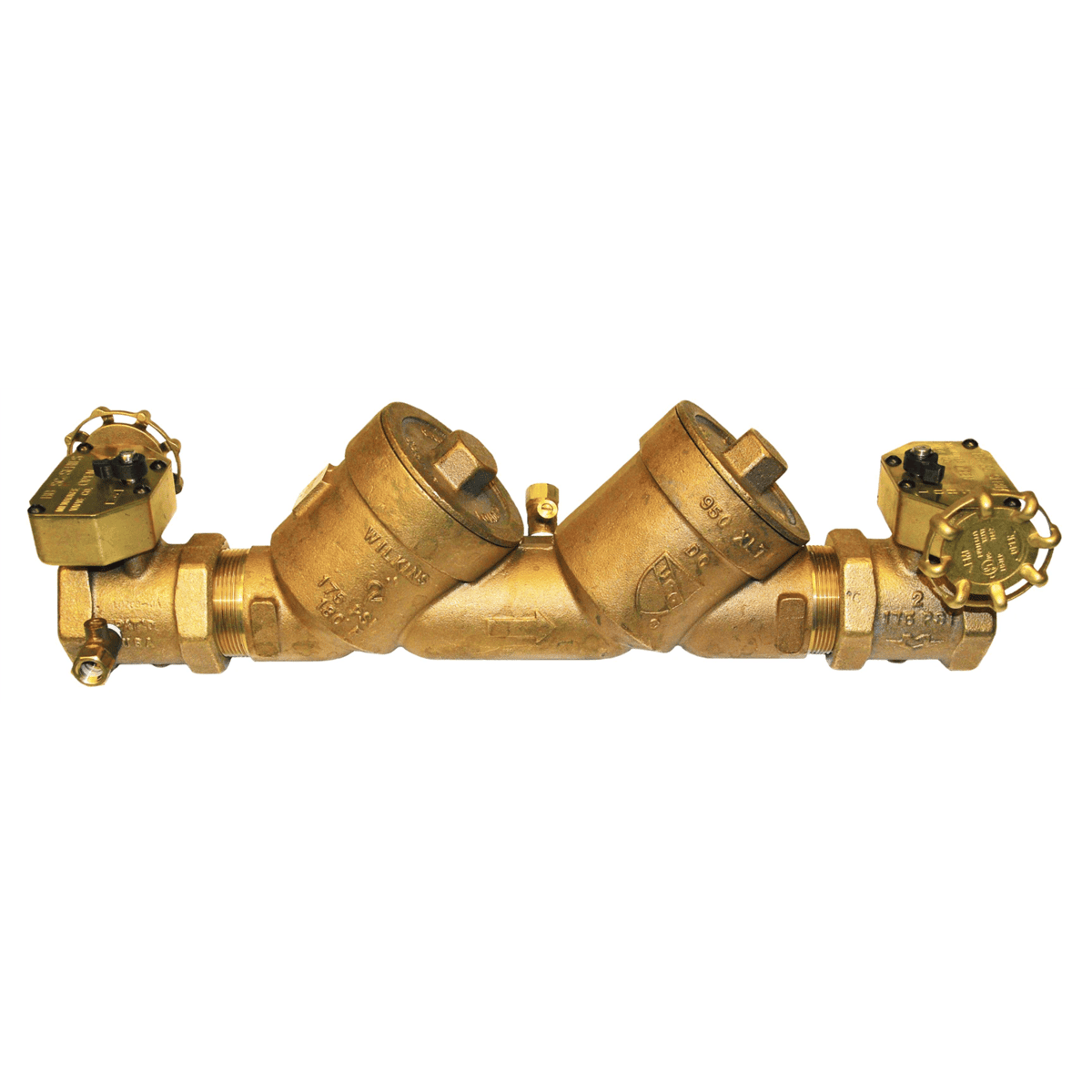

Zurn 2" 950XL top Access Double Check Valve Assembly, 2-950XLTBFSS

By Zurn
$2,922.99 | EA
Product #: 112562
Mfr. Part #: 2-950XLTBFSS

Out of Stock - Ships in 14 Days

Back

Description

The 2" 950XLTBFSS Double Check Valve Assembly, with butterfly shutoff valves and supervisory switches, includes top access check covers for easy maintenance access, and is utilized in low health hazard, non-potable water applications. The 950XLTBF protects against both backsiphonage and backpressure while the test cock plug protects against fouling caused by insects, dirt, and debris. It includes corrosion-resistant stainless steel springs and fasteners. Features of the 950XLTBF include a maximum working water pressure of 175 psi, hydrostatic test pressure of 350 psi, and a maximum working water pressure of 180°F.

Features

  • Top access double checks for hassle-free maintenance and repairs

  • Seats and silicone seal rings are fully replaceable for reduced maintenance costs

  • Test cock plug protects against fouling caused by unwanted debris

  • Construction offers corrosion-resistance

  • ASSE® Listed 1015

  • UL® Classified

  • C-UL® Classified

  • Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California (horizontal only)

Product Specifications

Body Material Type BRASS
Outlet Valve Type Female NPT Outlet
Bypass Meter (Y/N) N
Type of Check Valve BACKFLOW PREVENTER
Valve Size (IN) 2
Working Pressure (PSI) 175
Detector (Y/N) N
Application WATER
Brand Zurn
Valve Type BUTTERFLY
End Connection 1 Female NPT Inlet
