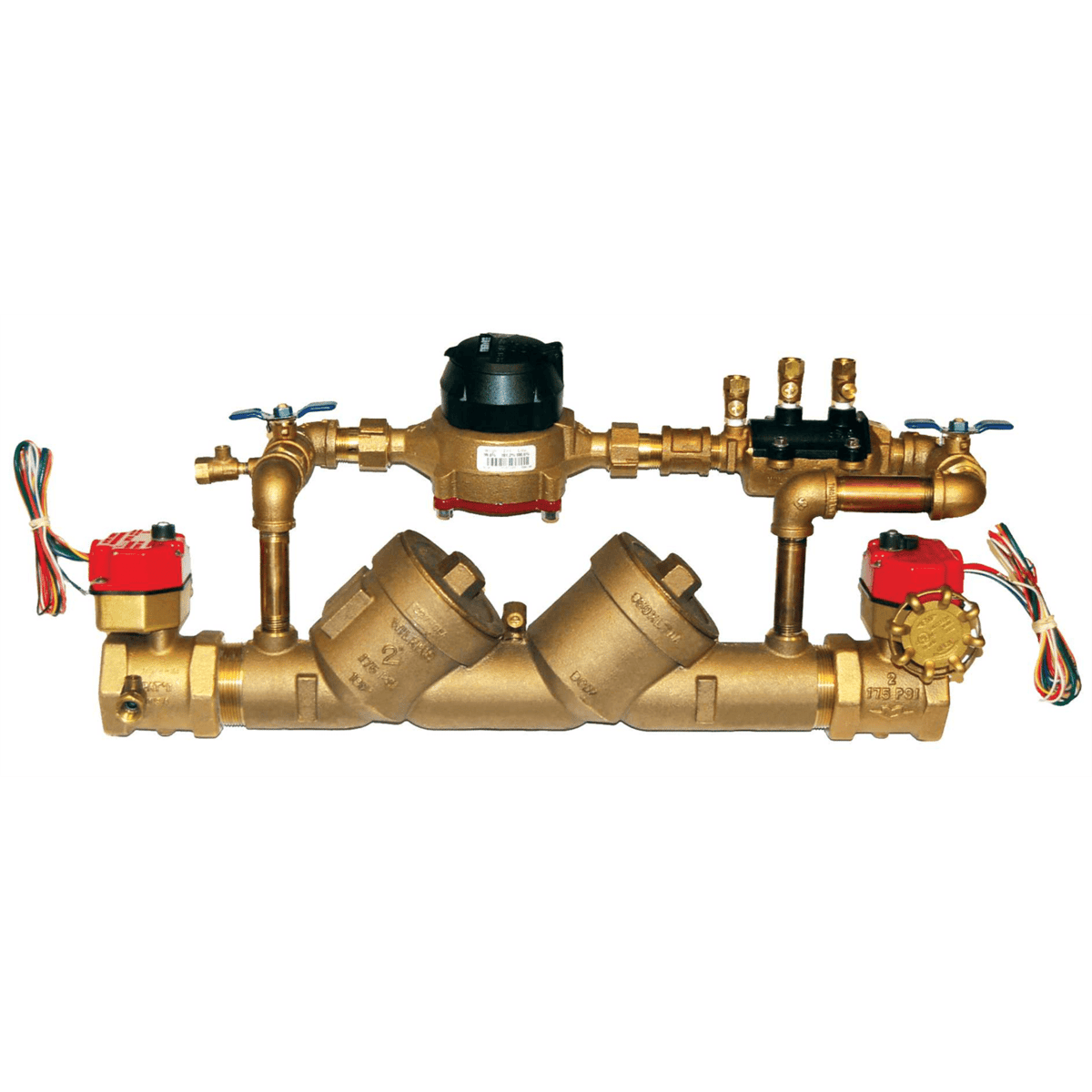

Zurn 2" 950XL DCDA w/Butterfly Shutoff Valves & Supervisory Switches, 2-950XLTDABFSS

By Zurn
$3,427.99 | EA
Product #: 112564
Mfr. Part #: 2-950XLTDABFSS

Out of Stock - Ships in 14 Days

Back

Description

The 2 950XLTDABF Double Check Detector Assembly is utilized in low health hazard, fire protection applications for protection against both backsiphonage and backpressure of polluted water into the potable water supply. It features a metered bypass to detect leaks and any unauthorized water use, saving you time and money on potentially costly repairs, and can be installed vertically or horizontally for added versatility. The 975XLTDABFSS is assembled with butterfly shutoff valves and butterfly valve supervisory switches (UL and FM approved for indoor and outdoor use). Its cast bronze body and 300 series stainless steel internals are corrosion-resistant, and it features a maximum working water pressure of 175 psi and water temperature of 180°F.

Features

  • Approved in vertical and horizontal positions for time-saving installation versatility

  • Metered bypass detects leaks and unauthorized water use for reduced maintenance and repair costs

  • Ensures protection from polluted water in fire protection applications

  • Bronze body and stainless steel internals resist corrosion

  • UL® Classified

  • C-UL® Classified

  • ASSE Listed

  • AWWA Compliant

Product Specifications

Body Material Type BRASS
Outlet Valve Type Female NPT Outlet
Bypass Meter (Y/N) N
Type of Check Valve BACKFLOW PREVENTER
Valve Size (IN) 2
Working Pressure (PSI) 175
Detector (Y/N) Y
Application WATER
Brand Zurn
Valve Type BUTTERFLY
End Connection 1 Female NPT Inlet
