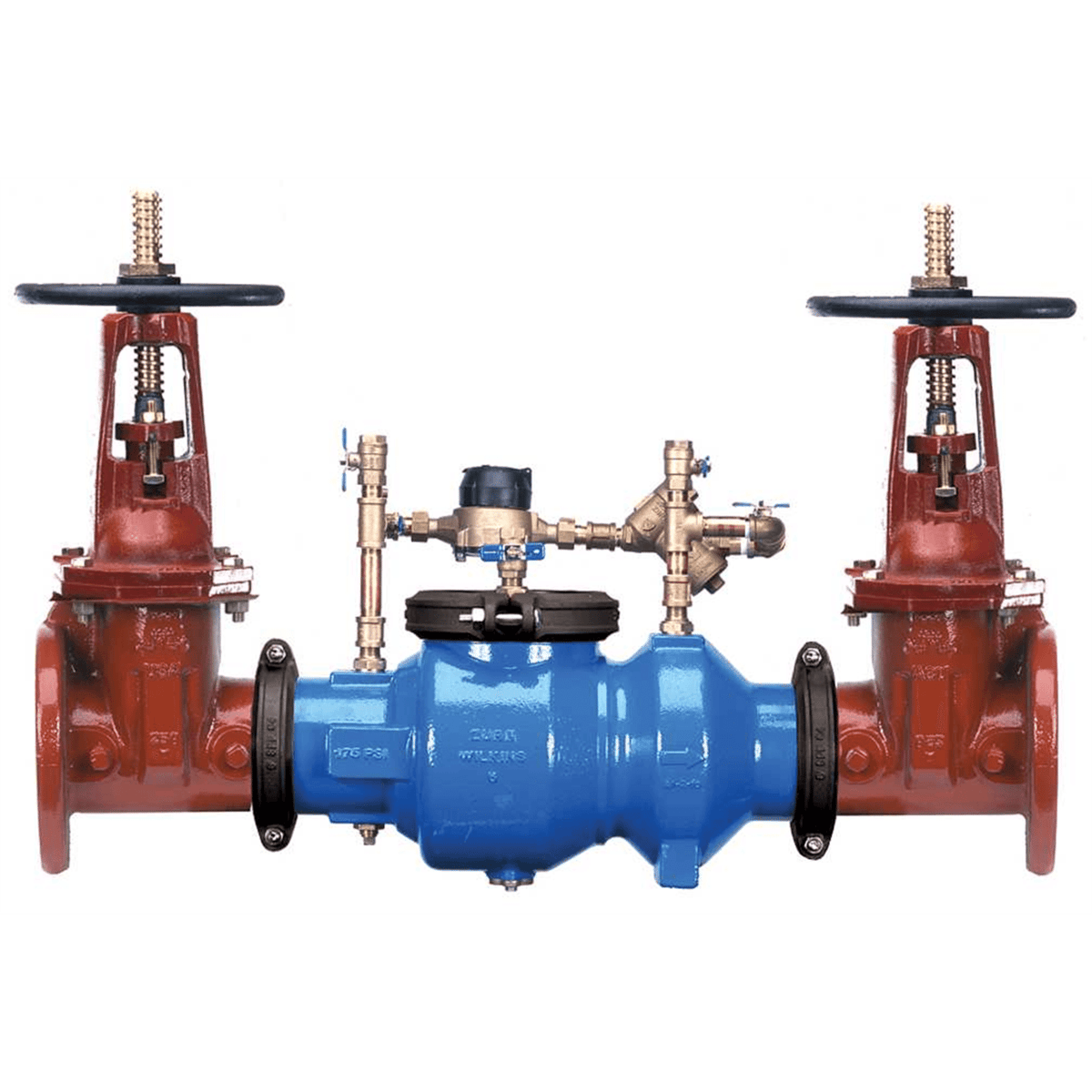

Zurn 10" 350ADA Double Check Detector Backflow Preventer with cu.ft Meter, 10-350ADACFM

By Zurn
$22,939.99
Product #: 112494
Mfr. Part #: 10-350ADACFM

Drop Ship - Ships in 1-3 Days

Ships via Motor Freight
Back

Description

The 10" 350ADACFM Double Check Detector Backflow Assembly, with flanged end OS&Y gate valve and cubic feet meter, protects against both backsiphonage and backpressure in low health hazard, fire protection applications. Featuring a metered bypass system, the 350ADA efficiently detects leaks and any unauthorized water use. Its single access cover reduces down time and added costs associated with maintenance and repairs. Lighter in weight than the 350DA Model, the 350ADA features a short lay-length for compact, versatile installation in horizontal or vertical positions.

Features

  • Horizontal or vertical installation offers versatility and reduces installation time

  • Leak and unauthorized water use detection decreases costs over time

  • Patented Compound Check offers reliable performance and improved flow characteristics

  • Lack of threads or taps in cover and body reduces corrosion exposure

  • ASSE® Listed 1048

  • AWWA Compliant C510 (with gates only), and C550

  • CSA® Certified B64.5

  • UL® Classified

Product Specifications

Body Material Type DUCTILE IRON
Outlet Valve Type Flanged
Bypass Meter (Y/N) Y
Type of Check Valve BACKFLOW PREVENTER
Valve Size (IN) 10
Working Pressure (PSI) 175
Detector (Y/N) Y
Application WATER
Brand Zurn
Valve Type GATE
End Connection 1 FLANGED
