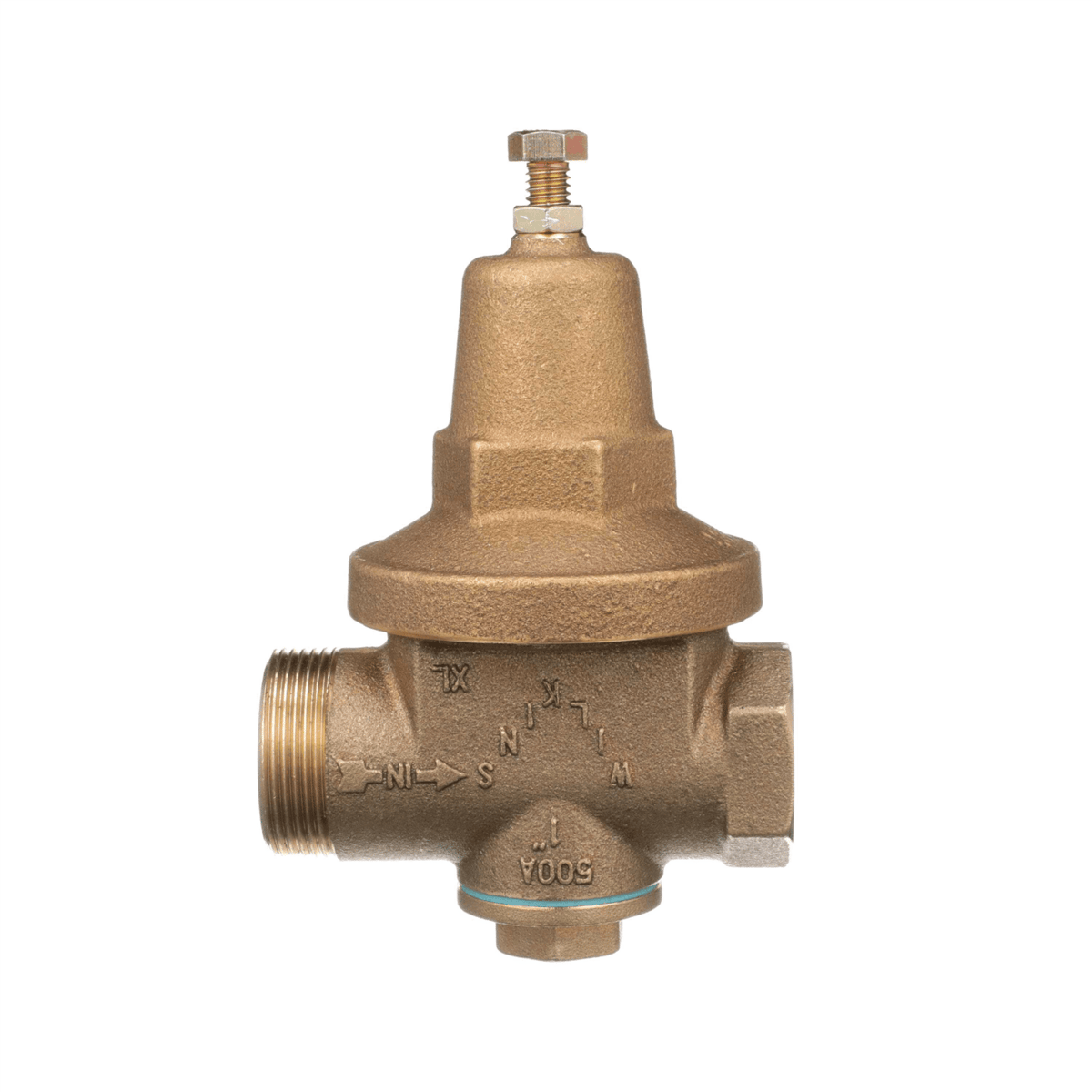

Zurn 1" 510XL Water Pressure Reducing Valve, 1-510XL

By Zurn
$559.95 | EA
Product #: 112524
Mfr. Part #: 1-510XL

This item is in stock

Back

Description

The 1" 510XL Pressure Reducing Valve works effectively for industrial water lines and commercial irrigation systems with high-flow rate capacity and low falloff. It includes a 400 psi inlet rating and 75 psi to 125 psi spring range, factory set at 85 psi (field set 2 1/2" and 3"). The balanced piston design enables the regulator to respond seamlessly to changes in the system flow demand, ultimately providing vital protection from inlet pressure changes. The direct-acting integral bypass design prevents buildup of excessive system pressure caused by thermal expansion. The all-bronze body and threaded bell provide superior corrosion resistance and easy access to the internal system. You will save valuable installation time and labor costs.

Features

  • Short lay length and compact design allow it to install in tight spaces

  • High-flow capacity suits commercial or industrial pressure reduction applications

  • Highly durable, threaded bell resists corrosion and provides easy access to cartridge internals

  • Lead-free

  • ASSE® Listed

  • IAPMO® Listed

  • CSA® Certified

  • City of Los Angeles Approved

Product Specifications

Body Material Type BRASS
Pressure Range 75 - 125 PSI
Pressure Setting 85 PSI
Valve Size (IN) 1
Flow Rate (Max) (PSI) 400
Application WATER
Brand Zurn
End Connection 2 Female NPT Outlet
End Connection 1 UNION SWIVEL
