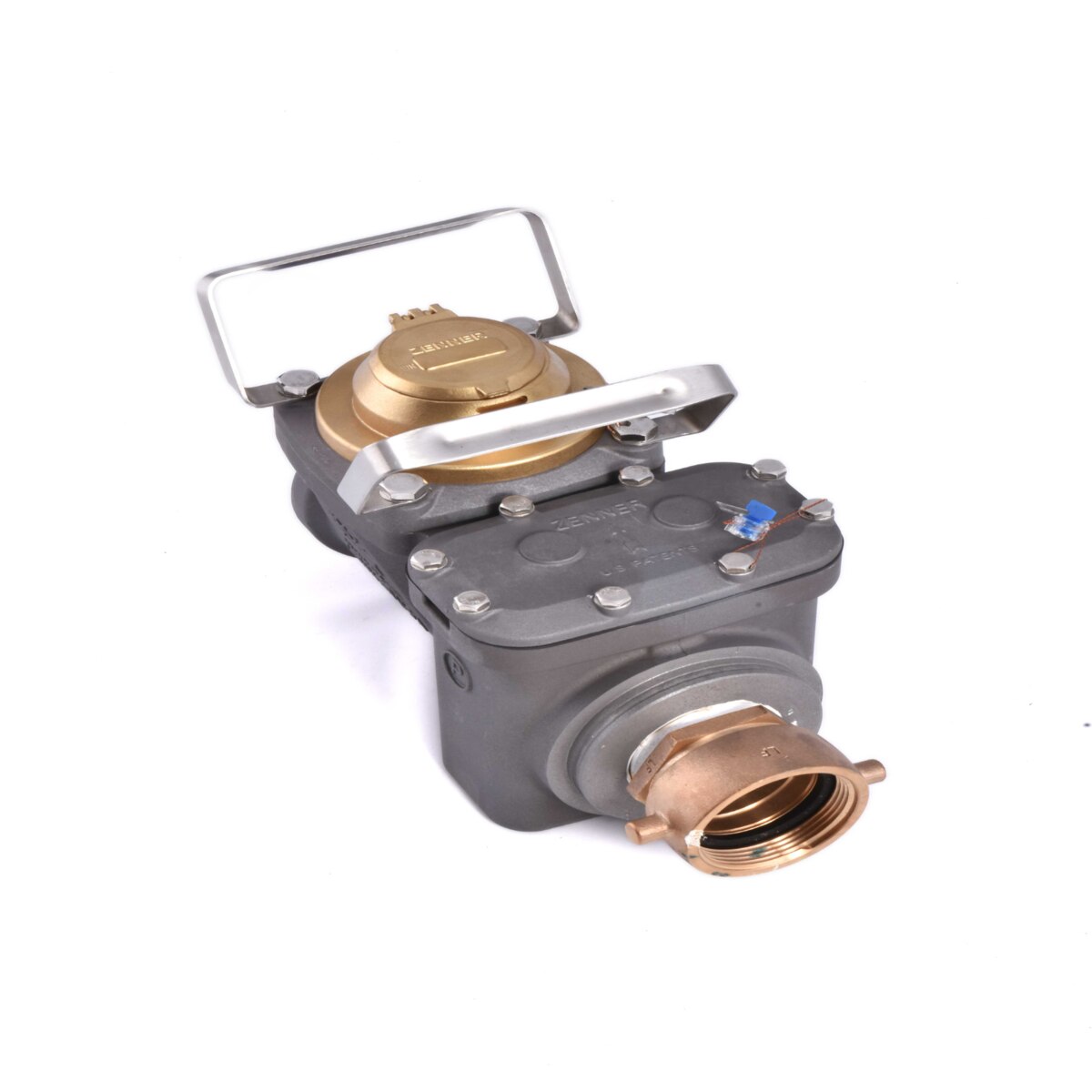

Zenner High-Performance Hydrant Meter w/ Out Gate Valve, 17"L, Gallons, FHZP25SUS

$1,095.33 | EA
Product #: 112828
Mfr. Part #: FHZP25SUS

Out of Stock - Ships in 20 Days

Description

ZENNER Performance Hydrant Meters are designed to measure a wide variety of cold potable water flows from fire hydrants where flows are in one direction. These meters are light weight portable units designed for temporary installations.

Features

  • ZENNER Performance Fire Hydrant Meters are lightweight portable units designed for temporary installations.

  • Water flows through the turbine section causing the rotor to turn proportionately to the quantity of water flowing through the meter.

  • A drive magnet transmits the motion of the rotor to a driven magnet located within the hermetically sealed register.

  • The magnet is connected to a gear train which translates the rotations into volume totalization displayed on the register dial face.

  • ZENNER Performance Hydrant Meters are engineered and manufactured to provide long-term service and operate virtually maintenance free.

Includes

ZENNER Performance Hydrant Meters consist of several basic components: light weight aluminum main case, turbine type measuring element assembly, sealed register, aluminum cover plate, stainless steel hardware, brass lid assembly, aluminum or brass swivel and nipple, aluminum or stainless steel handle. The measuring element assembly includes the rotor assembly, vertical shaft and a calibration vane which eliminates the need for calibration change gears.

Product Specifications

Flow Rate (Max) (GPM) 500
Length (IN) 17
Application WATER
Connection 2-1/2" FIPT Inlet x 2-1/2" FIPT Outlet with Restrictor on Outlet Port
