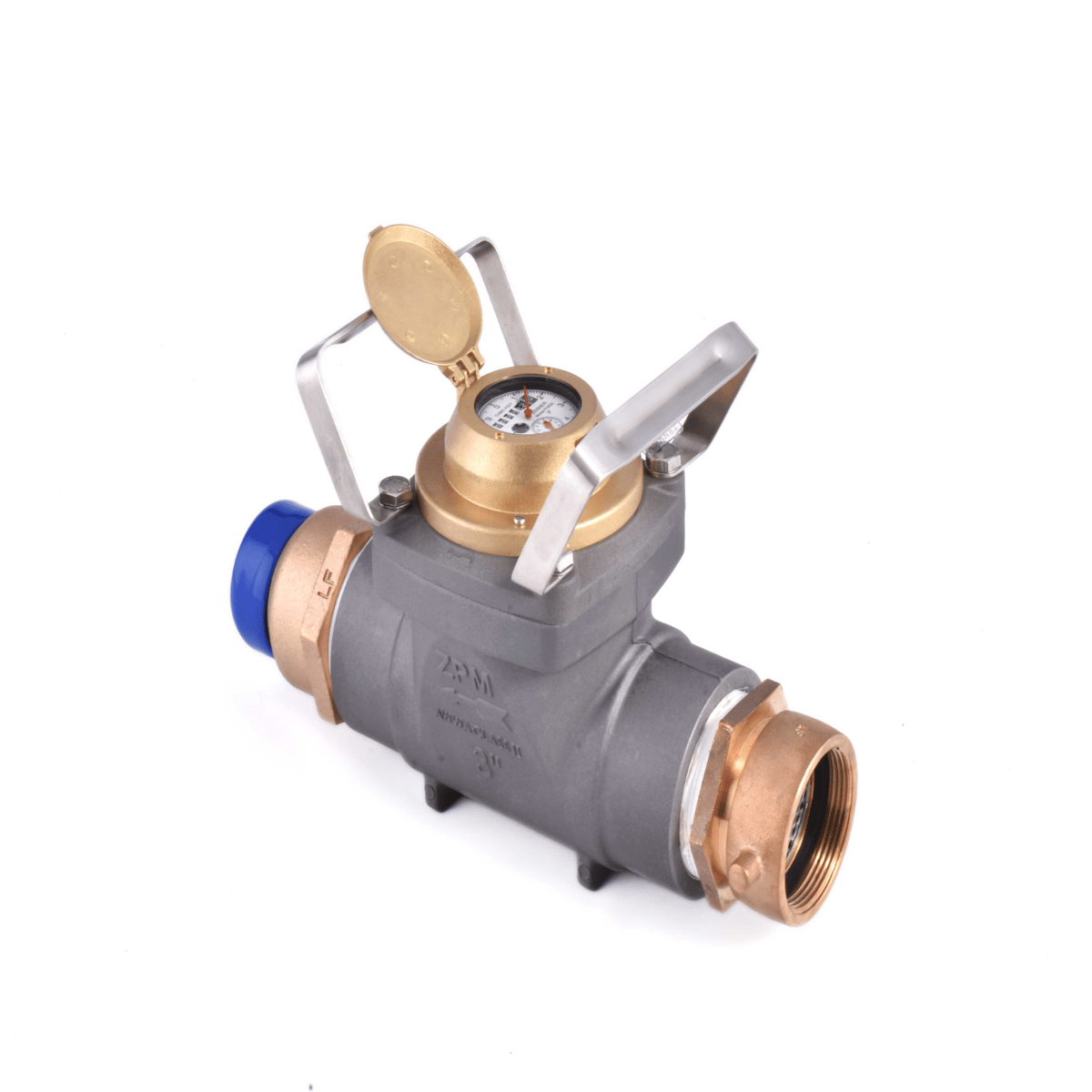

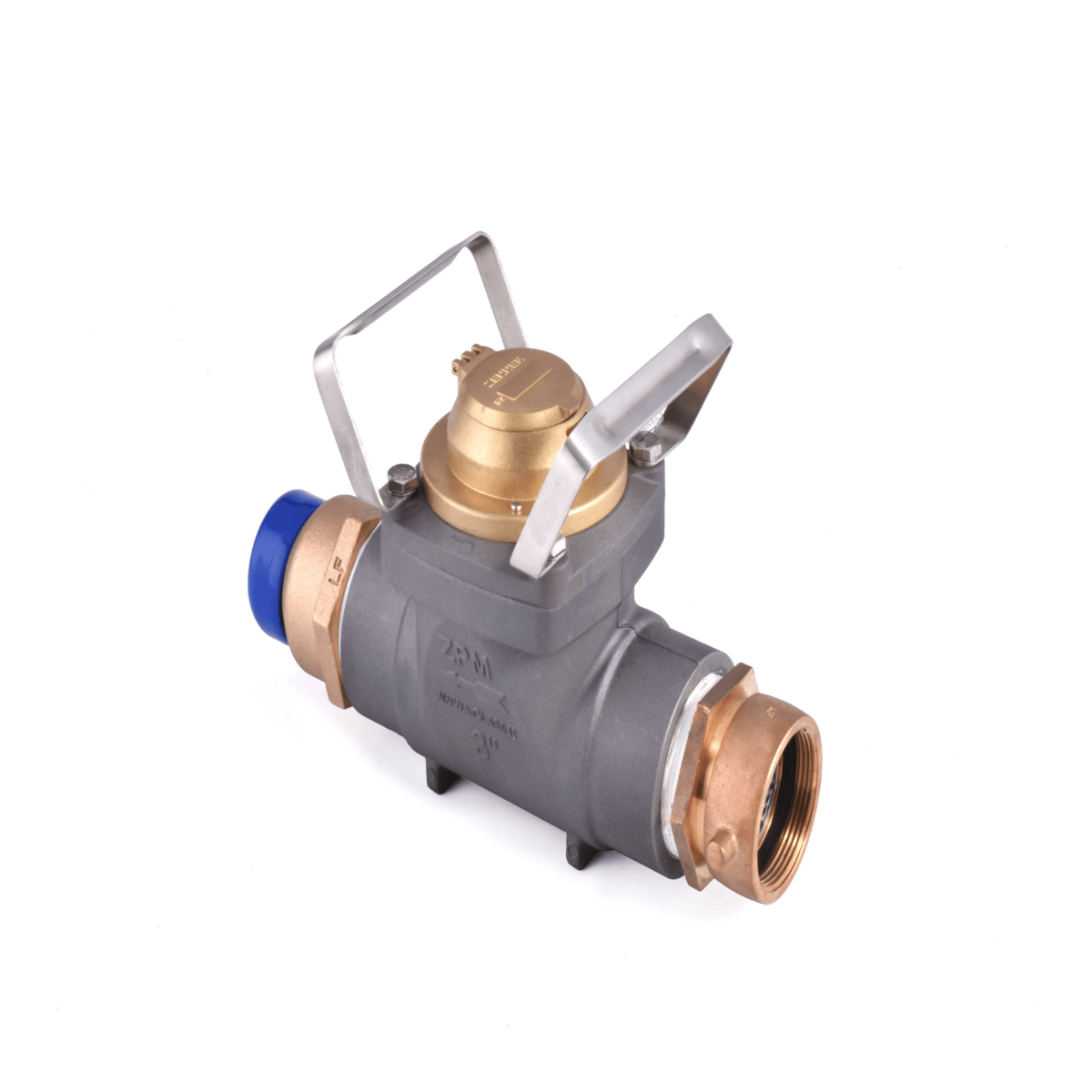

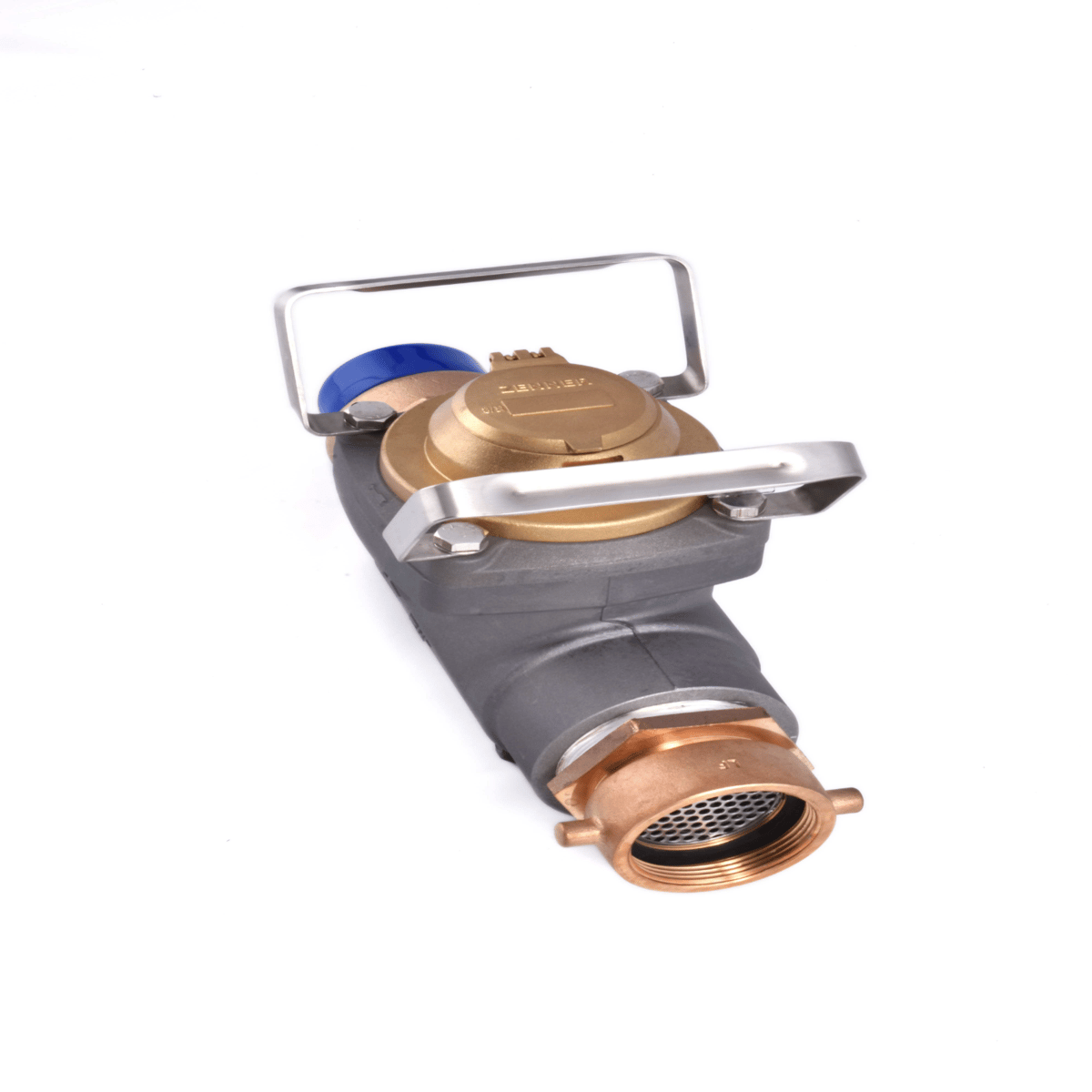

Zenner FHZ25 Fire Hydrant Meter, Gallons, FHZ25SUS

Description

The ZENNER FHZ Fire Hydrant Meters are designed to measure a wide variety of cold potable water flows from fire hydrants where flows are in one direction. These Meters are light weight portable units designed for temporary installations.

Features

• Water flows through the turbine section causing the rotor to turn proportionately to the quantity of water flowing through the meter.


• A drive magnet transmits the motion of the rotor to a driven magnet located within the hermetically sealed register.


• FHZ Fire Hydrant Meters are designed to measure a wide variety of cold potable water flows from fire hydrants where flows are in one direction.


• FHZ Fire Hydrant Meters are engineered and manufactured to provide long-term service and operate virtually maintenance free.


• FHZ Fire Hydrant Meters come with an inlet strainer built into the Swivel.

Includes

FHZ Fire Hydrant Meters consist of several basic components: light weight, aluminum main case, turbine type measuring element assembly, sealed register, aluminum cover plate, stainless steel hardware brass lid assembly, aluminum or brass swivel and nipple, aluminum or stainless steel handles. The measuring element assembly includes the rotor assembly, vertical shaft and calibration vane which eliminates the need for calibration change gears.

Product Specifications
