ZDe-Chlorinator NEMA-500 Elbow Pitot w/ PSI/GPM Gauge for NEMA-100

By ZDe-Chlorinator
ZDe-Chlorinator NEMA-500 Elbow Pitot w/ PSI/GPM Gauge for NEMA-100
$499.99 | EA
Product #: 104978
Mfr. Part #: V320-NEMA-500

This item is in stock

Add to
Or:
Create a New List
Back

Description

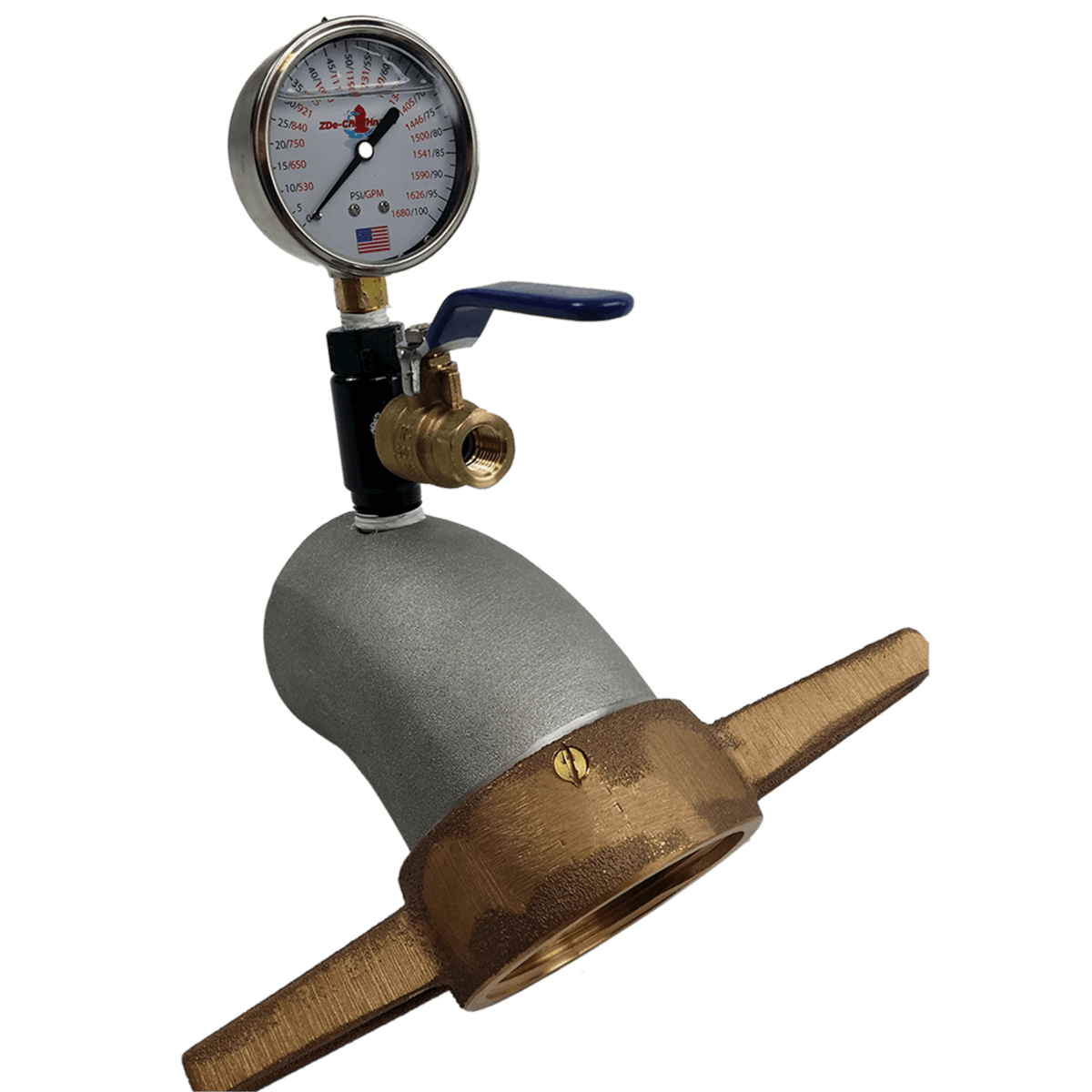

The NEMA-500 Elbow Pitot is designed for use with the ZDe-Chlorinator NEMA-100. For flow testing, remove the detachable elbow from the NEMA-100 and replace it with the NEMA-500. Unit can also be connected directly to a hydrant's 2 ½ in MNST, or any other suitably threaded device. Elbow is cast aluminum with bronze adjusting handles. Gauge is calibrated in both PSI and GPM.

Features

  • Use with the ZDe-Chlorinator NEMA-100 or connect directly to a hydrant or hose that has 2 ½ in MNST.

  • PSI calibrations of 0 to 100 PSI.

  • GPM calibrations of 0 to 1680 GPM.

  • Gauge has 20 measured graduations.

Product Specifications

Material ALUMINUM BRONZE
Mount Position Bottom
Weight 5.0000
Face Diameter (IN) 2-1/2
Connection Size (IN) 2-1/2
Flow Range (GPM) 530-1680
Stem Size (IN) 1/4
Brand ZDe-Chlorinator
Application WATER
Pressure Range UOM PSI
Back Material STAINLESS STEEL
Pressure Range 0 - 100
Stem Material Type BRASS
Filled (Y/N) Y
