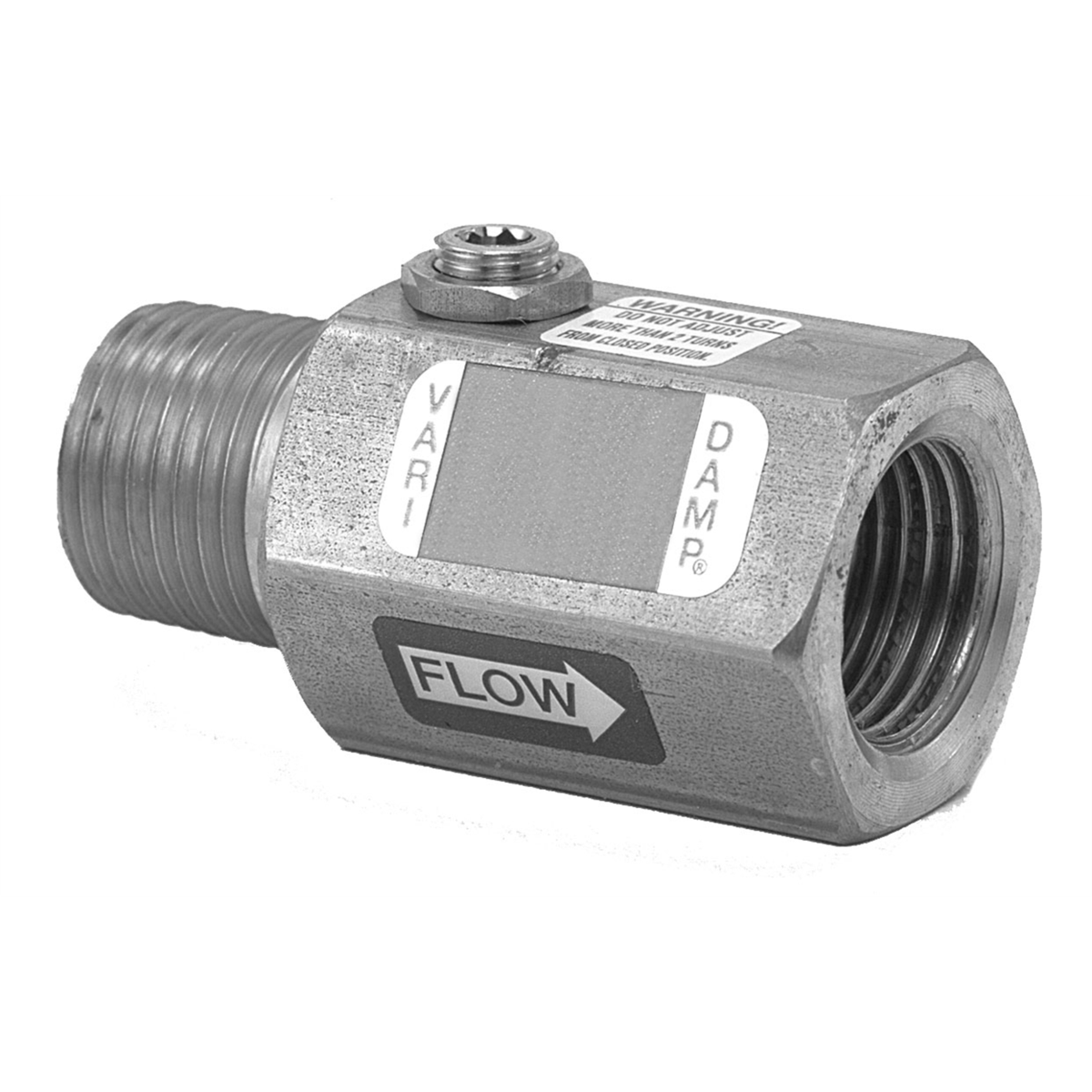

Weksler Adjustable Snubber, 3,000 psi, 1/4" NPT connection, Brass MSB4
Description
Weksler's Universal Adjustable Snubber has a ball check cut-off to block line surges, shock waves and fluid hammer; and an adjustable fine thread choke valve to tune out line pulsations. The combination of the of the ball cut-off and a tunable choke valve makes it an all-purpose, universal Snubber that is used on low displacement instruments such as bourdon tube gauges which require heavy dampening; and with high displacement instruments such as diaphragm, piston and bellows operated gauges, recorders and controllers, which require moderate to heavy dampening. The adjustable choke valve is also used as a positive shut-off valve, to isolate the gauge or instrument for servicing or replacement.
Product Specifications
Pressure Range | 3000 |
Material | BRASS |
Weight | 1.0000 |
Connection Size (IN) | 0.25 |
Brand | Weksler |
Pressure Range UOM | PSI |
End Connection(s) (NST) | MALE X FEMALE NATIONAL PIPE THREAD |
