Water Plus Corp Sampling Rod, Fits Below Grade Sampling Stations w/ Brass, Push Type, Quick Connect

Description

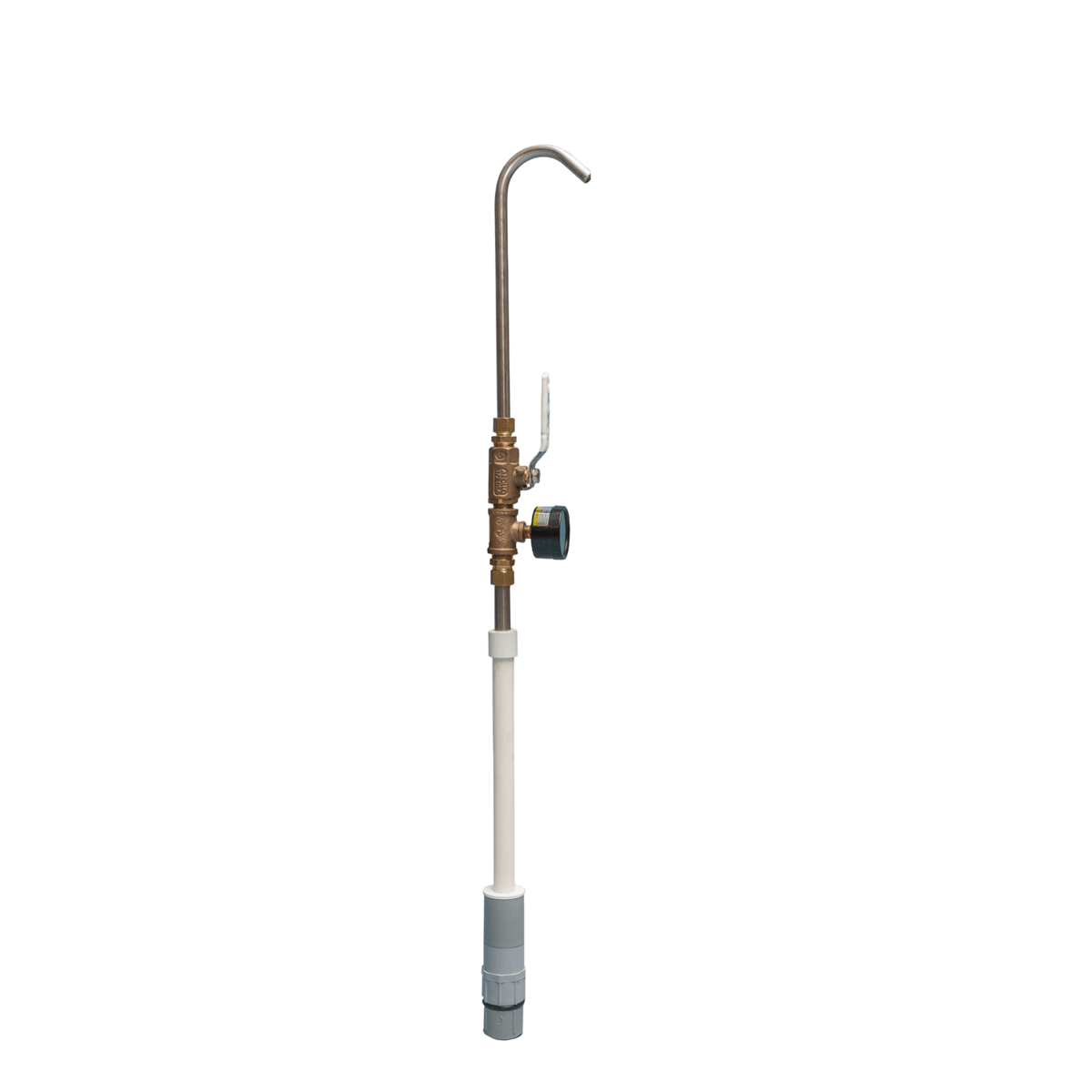

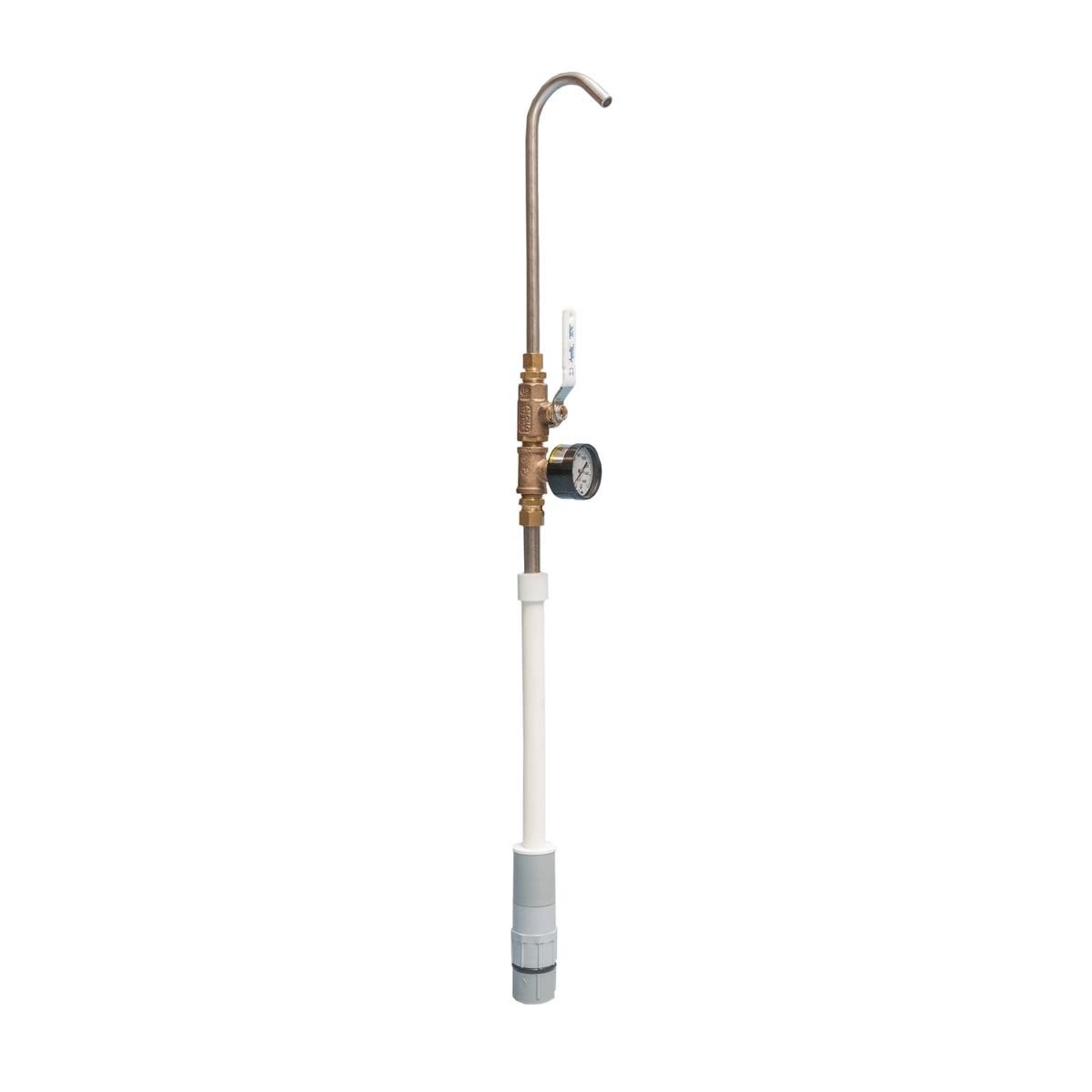

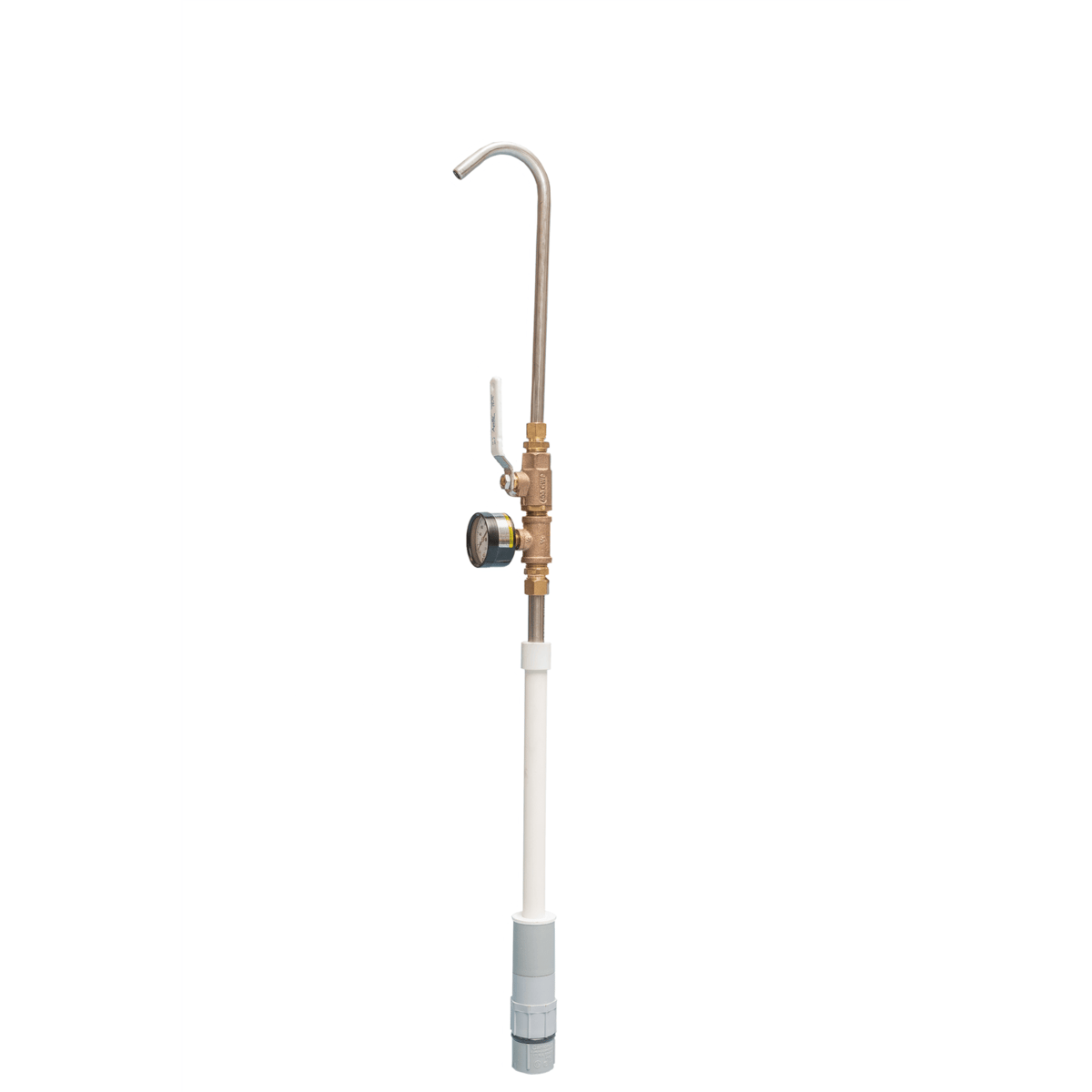

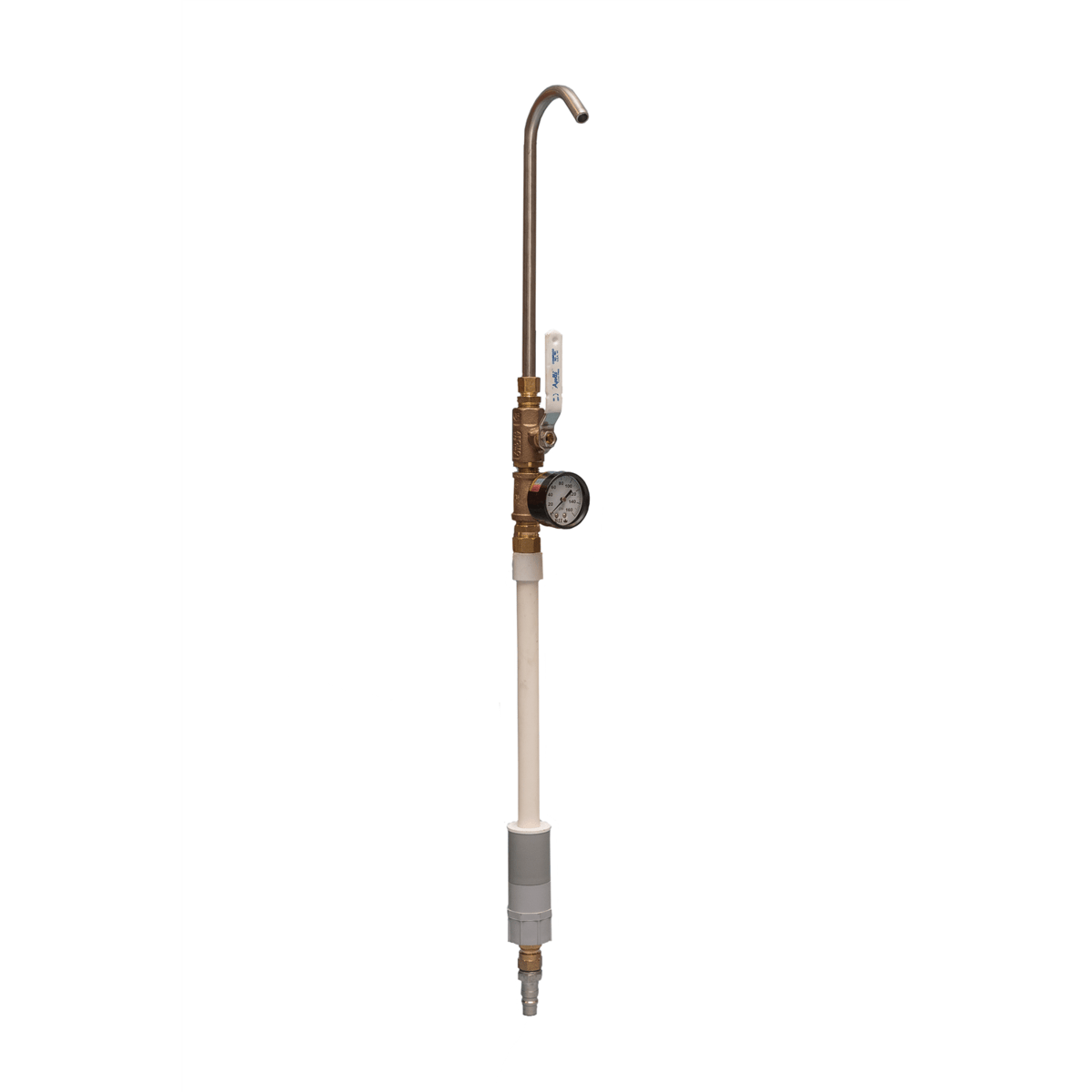

Water Plus Model 150G Sampling Rod is designed to be carried by the utility operator to each sampling site for sample collection. The rod is inserted into the female quick connect and with a downward force, the rod is locked into the female quick connect. The rod may then be flushed and flamed or decontaminated before sample collection. The rod is then disconnected from the sampling valve by simply pressing down on the PVC outer housing and the rod automatically disconnects from the sampling valve. The protective cap is then reinstalled on the sampling station and the utility operator then moves on to the next sampling site.

The Model 150G is all stainless-steel with the exception of the outer PVC housing. The rod consists of a stainless steel spigot suitable for flaming or chlorine application, for decontamination. There is a stainless-steel throttling valve with a stainless steel handle for adjusting the water discharge to achieve an optimal flow for gathering the water sample. A stainless-steel pressure gauge is provided for recording the water pressure at each sampling site. The pressure gauge has a 2″ dial reading 0-160 psi. The 150G-SS rod is completely non-corrosive, protecting against the highly corrosive properties of decontamination products. A PVC protective case for the rod is sold separately. Order case model number is CAS-150 (part number 106238)

Features

• Fits sampling stations with "push type" quick connect fittings


• Portable rod for use with multiple stations


• Pressure gauge for line pressure readings at sampling point


• Custom rod lengths available

Product Specifications
