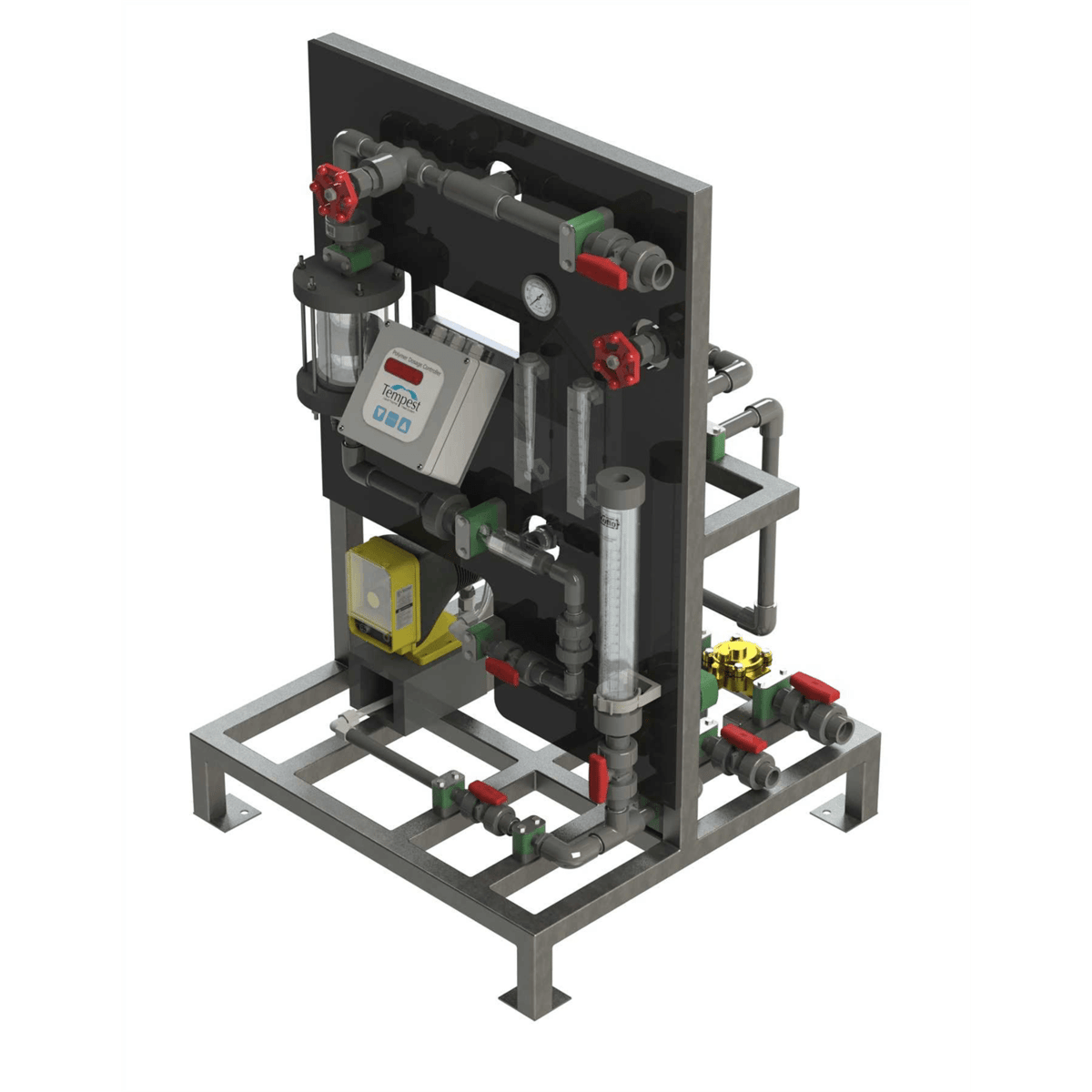

Tempest 1.0 Liquid Polymer Feed System, LMI Pump, TPS-300-D1

Description

The Tempest Series of liquid polymer feed and control stations are designed to provide the right type of mixing energy at the critical moment of inital wetting and tapers that energy through a multi-stage regime of hydrating zones. The net result is a fully hydrated polymer solution with maximum charge site exposure which assures optimized polymer usage and performance. Many Polymer feed and control stations are complicated. The Tempest's design is simple, yet highly intelligent, with the ability to provide just the right mixing energy. The unit operation is simple. The user enters the desired polymer concentration and selects manual or automatic operation. Using calculations derived from the calibration state, the unit automatically adjusts the polymer pump output to achieve the desired concentration. Under conditions of high or low concentration, a loss of water flow the system automatically shuts down and notifies with an alarm. Each feed cycle is followed by and adjustable, multi-stage flush cycle to eliminate any plugging. System can be operated remotely via a 4-20mA or simple on/off signal. It's design eliminates unwanted agglomerations, plugging and the costly mess of dealing with these issues. With the Tempest you get less waste and lower polymer consumption which saves you money while enjoying optimum performance.

Features

•

• Open architecture provided easy access to all components for easy maintenance


• Multiple Stage mixing optmizes hydration and activation


• Controller calculates and holds solution concentration.


• Neat polymer pump is paced to dilution water flow for consistent solution concentration


• Controller limits the ability to make too high or too low a solution protect against process upsets and gelling up the blending system


• Modular design allowing you to select the system that best fits your current needs while protecting your investment by allowing field upgrades to enhance control or increase system output

Product Specifications
