SubSurface Instruments PL-VF10R Pipe & Cable Locator

By Subsurface Instruments
$4,550.00 | EA
Product #: 100031
Mfr. Part #: PL-VF10R Complete

This item is in stock

Back

Description

The SubSurface Instruments PL-VF10R Locating System is simple, accurate and affordable and will meet the demands of any locate task. This locator is designed for the locating professional, but it is simple enough to be used by anyone needing to locate. This locator is is adaptable; frequencies and operational modes may be added or deleted on demand to suit the user’s locating needs.

Features

  • Three button keypad simplifies the user interface

  • Rechargeable lithium batteries

  • Transmits two frequencies at the same time

  • Receiver can remotely control transmitter from more than 400 meters away

  • Made in the USA

  • Customizable frequencies and operational modes

  • Automatic Impedance Matching Technology maximizes your transmission range while minimizing power consumption

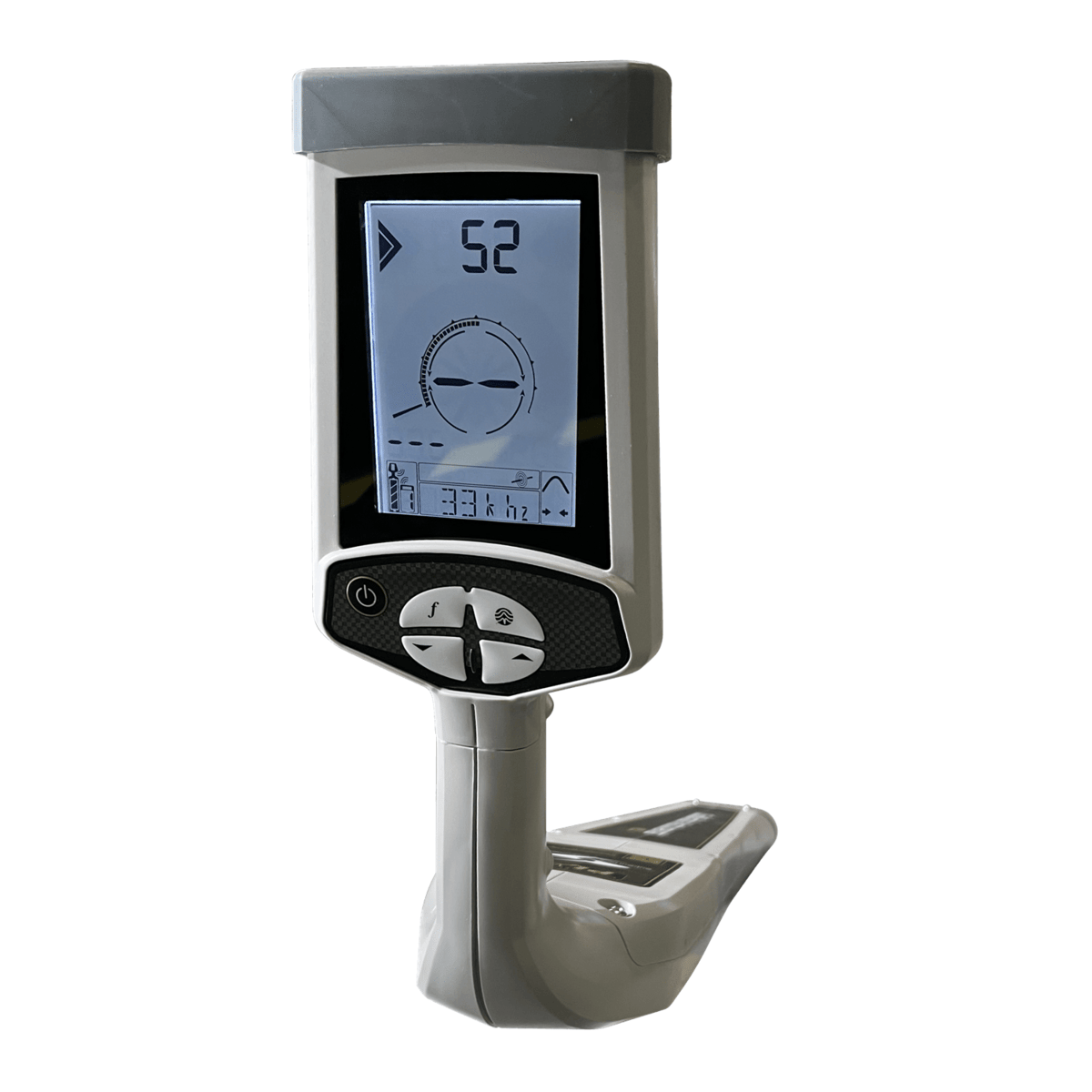

  • High-contrast backlit LCD display provides all relevant data including constant depth, current measurement, signal strength, and directional arrows

Includes

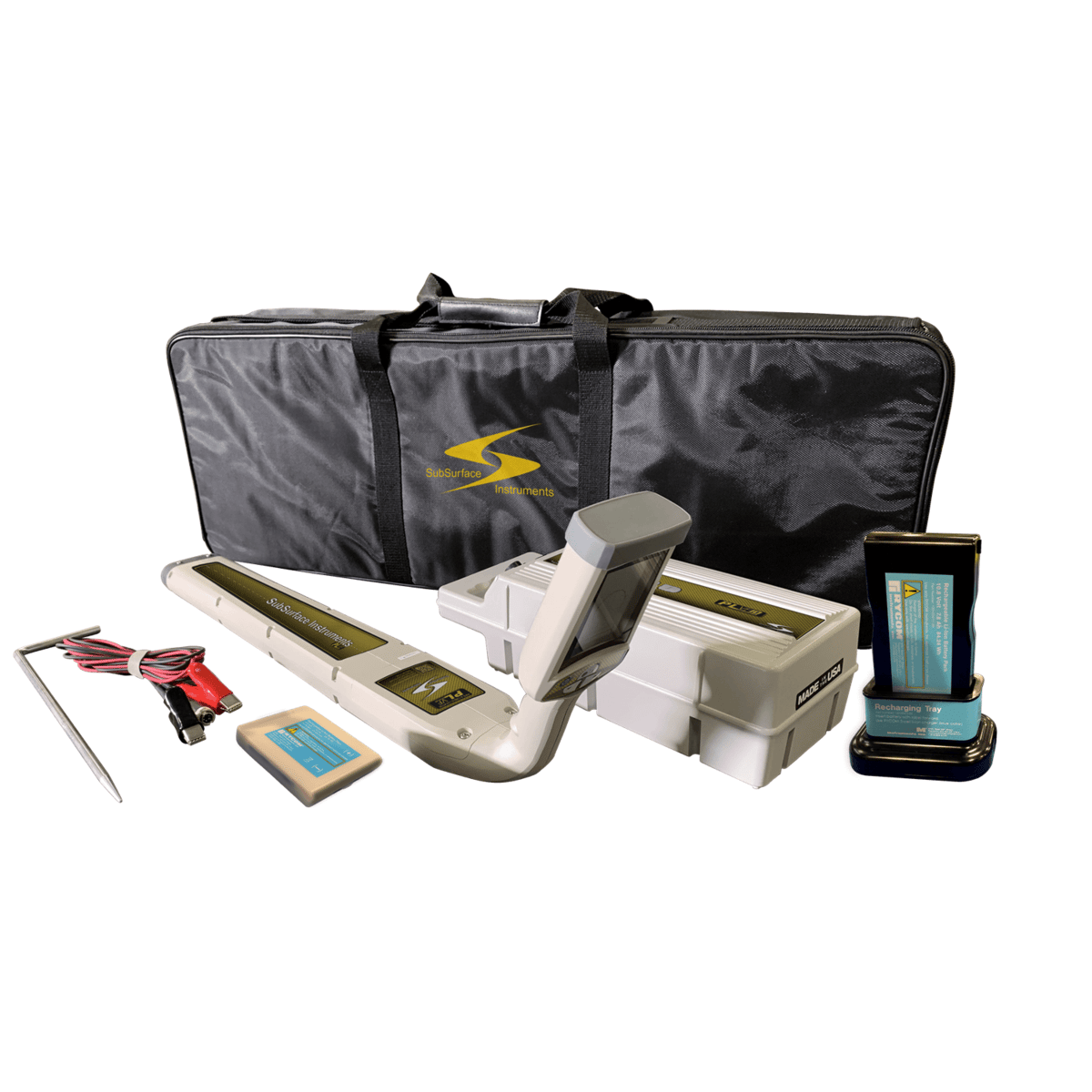

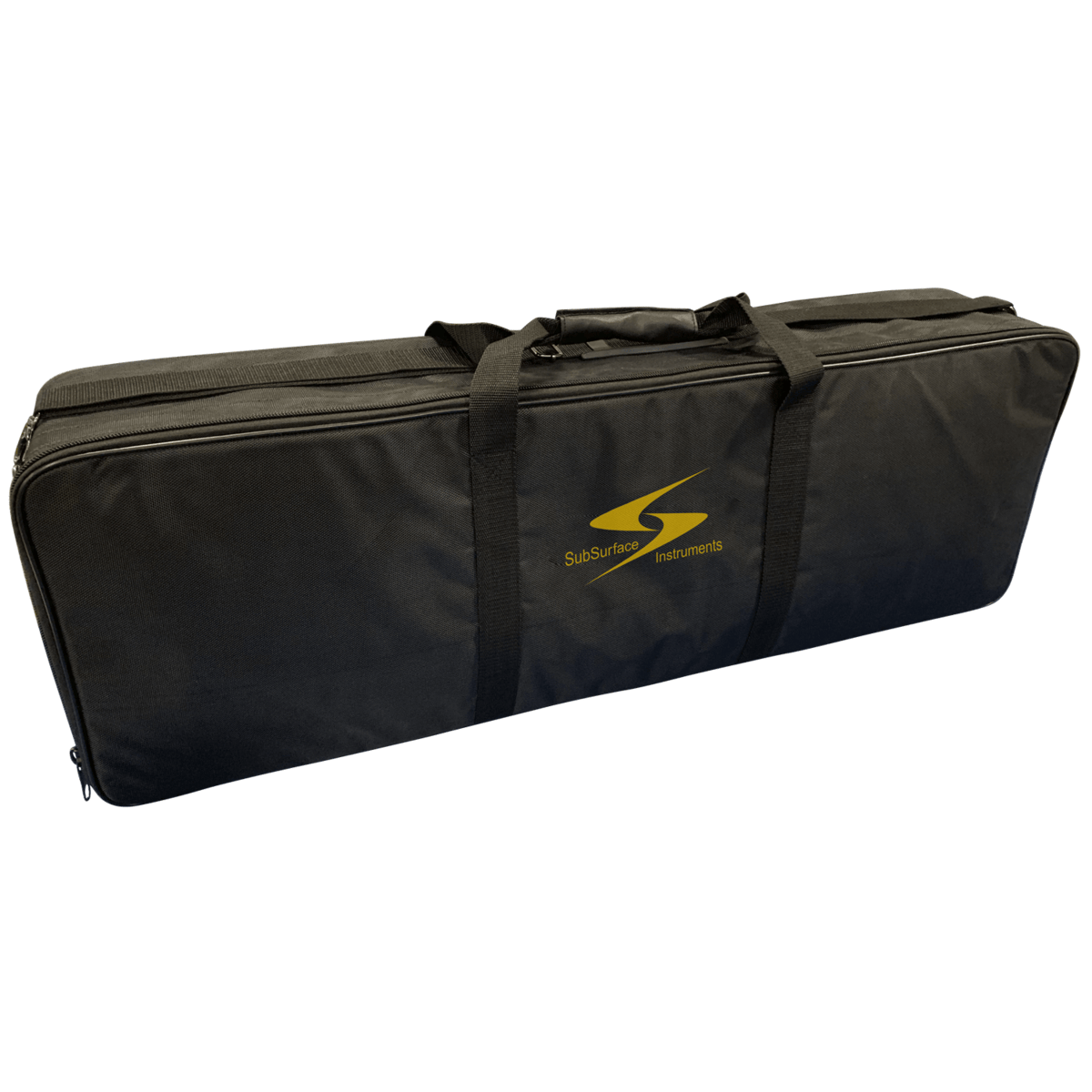

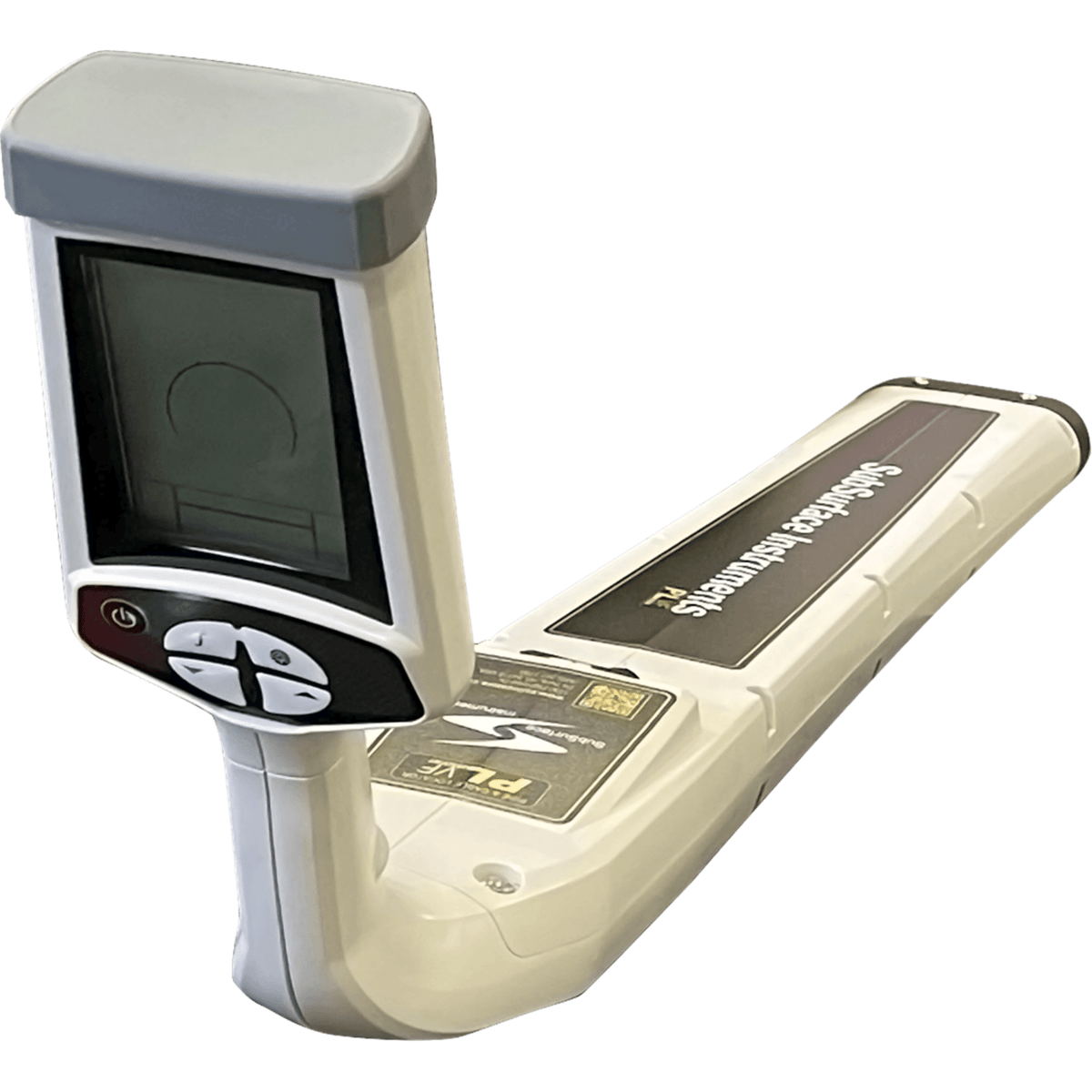

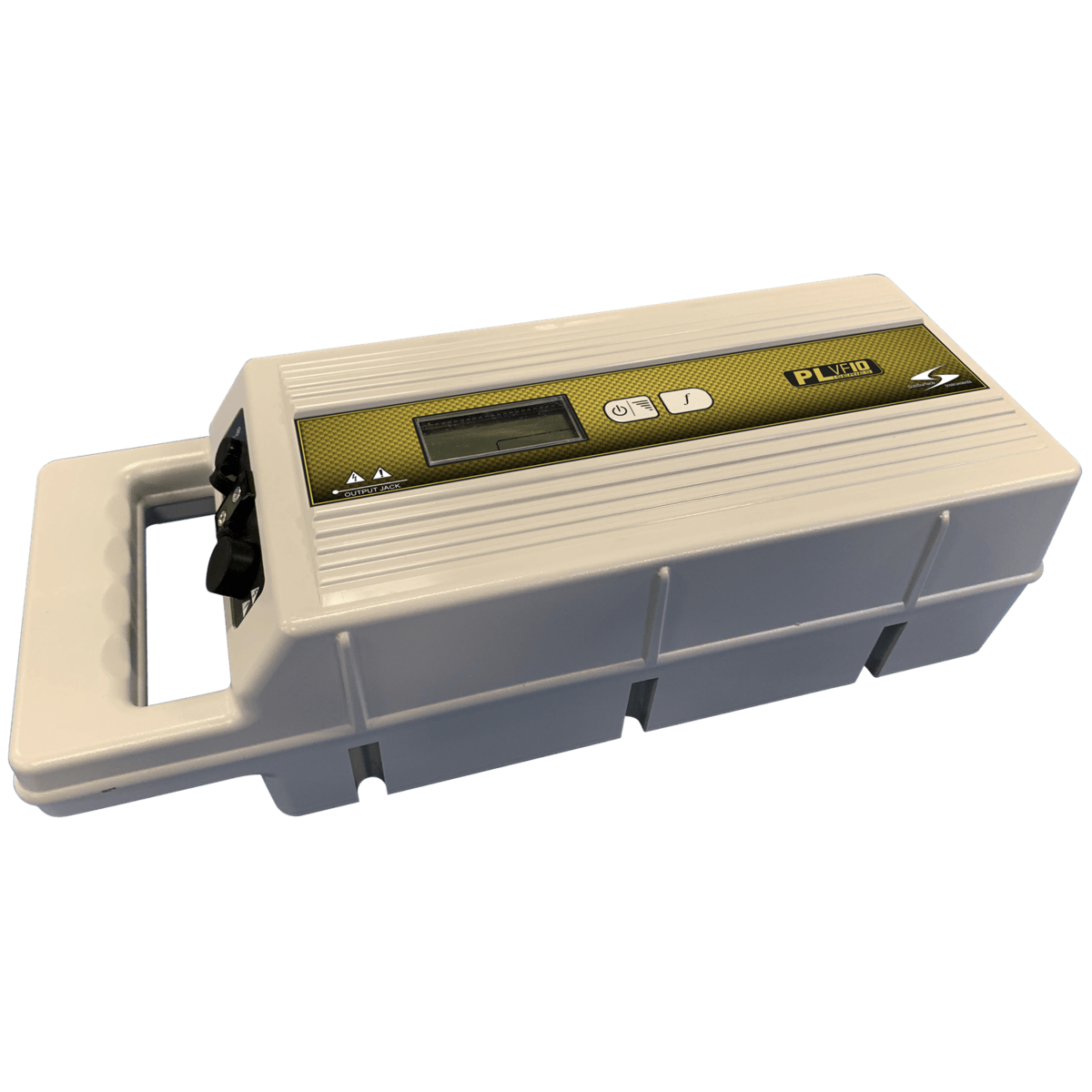

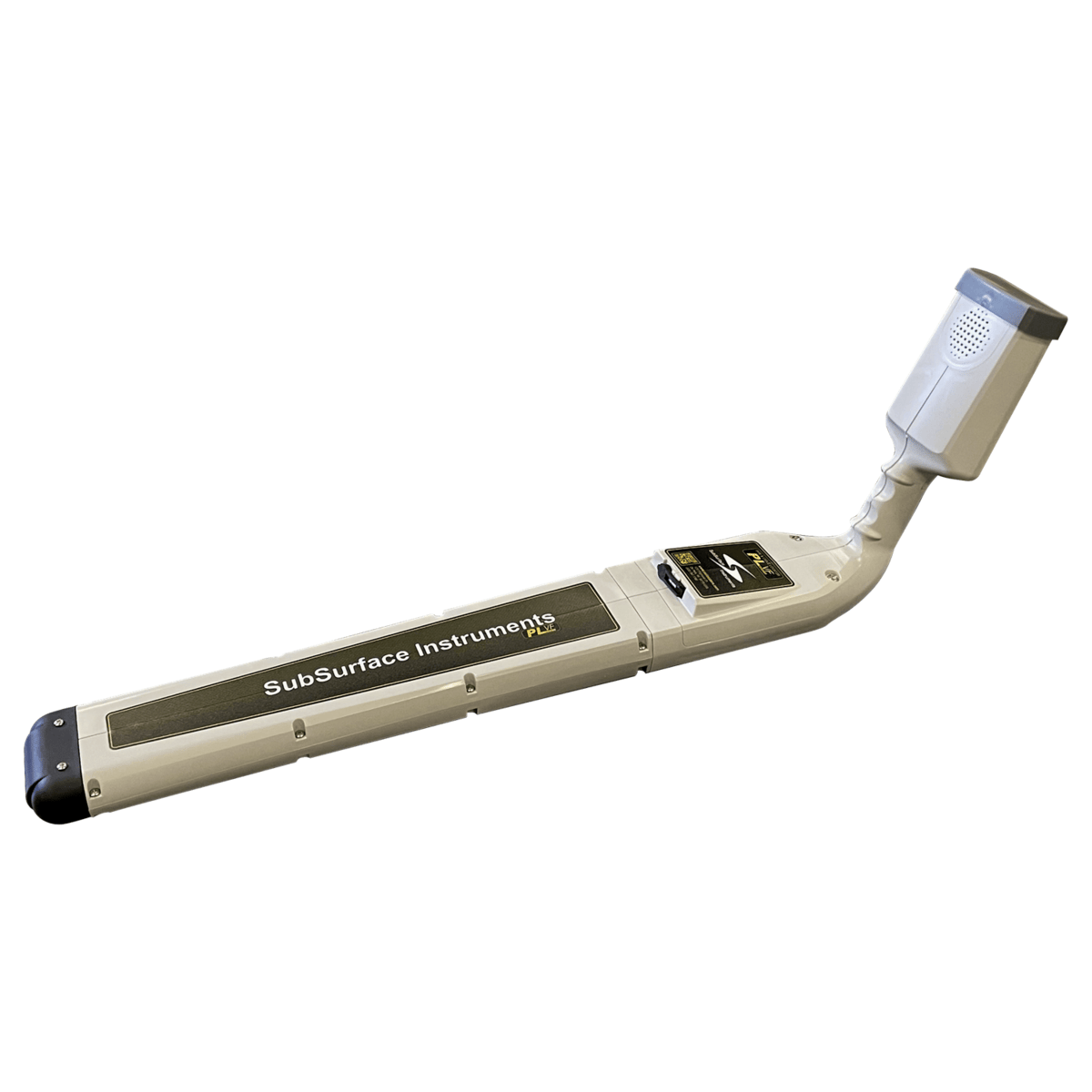

PL-VF receiver, PL-VF10 transmitter, direct connection cord, ground rod, protective carrying case, rechargeable lithium batteries, and user manual. One-year warranty.

Product Specifications

Visual Detection Output Yes
Weight (LB) 3 (receiver); 3.2 (transmitter)
Battery Life (HR) 30 to 82 (receiver); 8 to 20 (transmitter)
Transmitter Power (W) 10
Operating Temperatures (F) -4 to 133
Dimensions (IN) 30.3 x 9.4 (receiver); 16 x 6.32 x 6 (transmitter)
Product Type Pipe & Cable Locator
Brand SubSurface Instruments
Certifications IP65

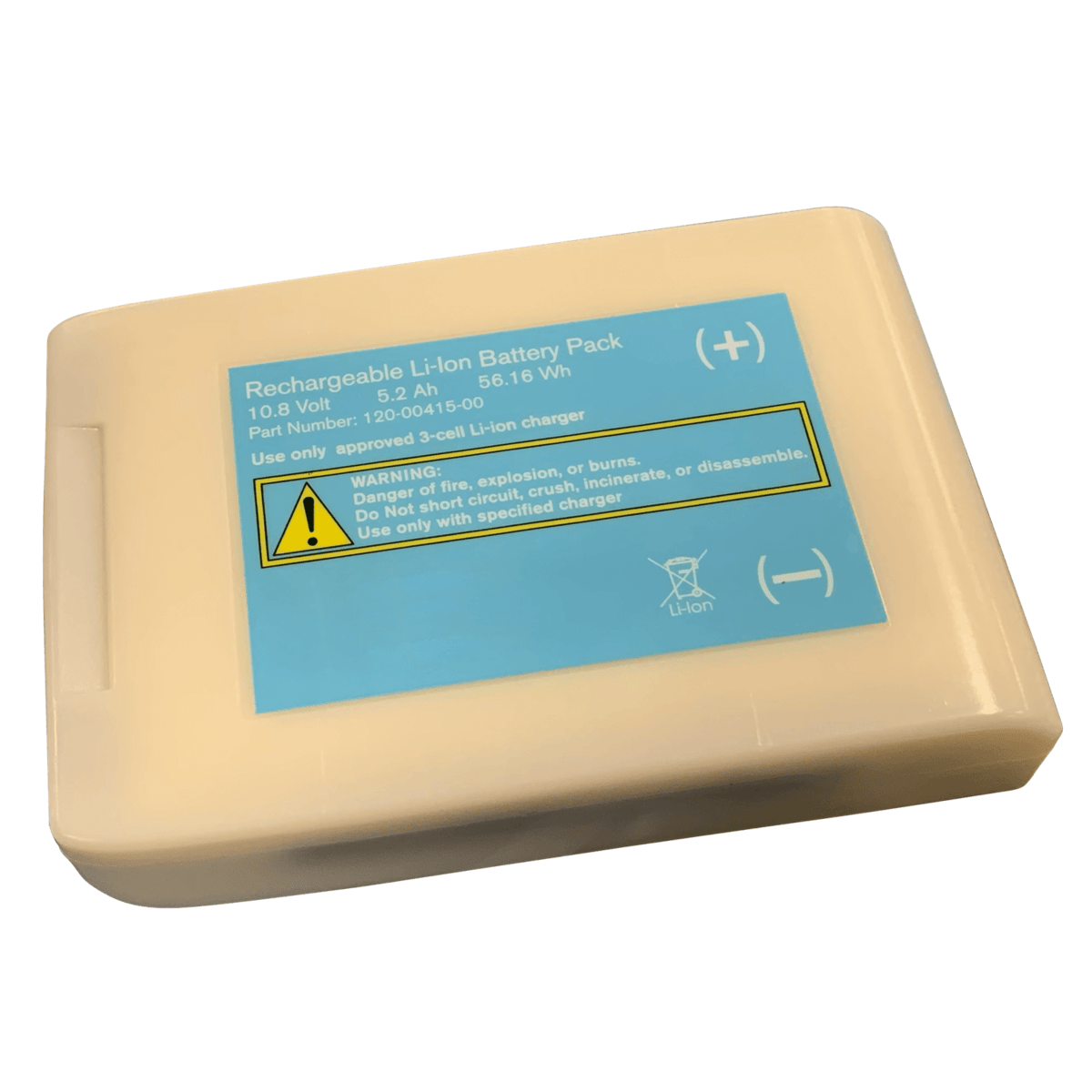

Battery Type Rechargeable lithium ion battery pack
Audio Detection Output Yes
Frequencies 50/60 Hz (passive), 200 Hz to 480 kHz

Certifications

  • IP65
