SubSurface Instruments PL-TT Pipe & Cable Locator

By Subsurface Instruments
$2,250.00 | EA
Product #: 100022
Mfr. Part #: PL-TT Complete

This item is in stock

Back

Description

The SubSurface Instruments PL-TT Pipe & Cable Locator offers sophisticated technology in an economical package. The locator can be operated for quick and simple locating using two locate modes: peak signal response or left-right guidance. This locator also has the capability to locate ferromagnetic objects.

Features

  • Pipe and cable locator with ferrous metal detection capability

  • Receiver includes an LCD screen, providing relative and actual signal strength, as well as a speaker for variable audio pitch

  • User interface is simple and easy to use

  • Weather-proof carbon fiber housing

Includes

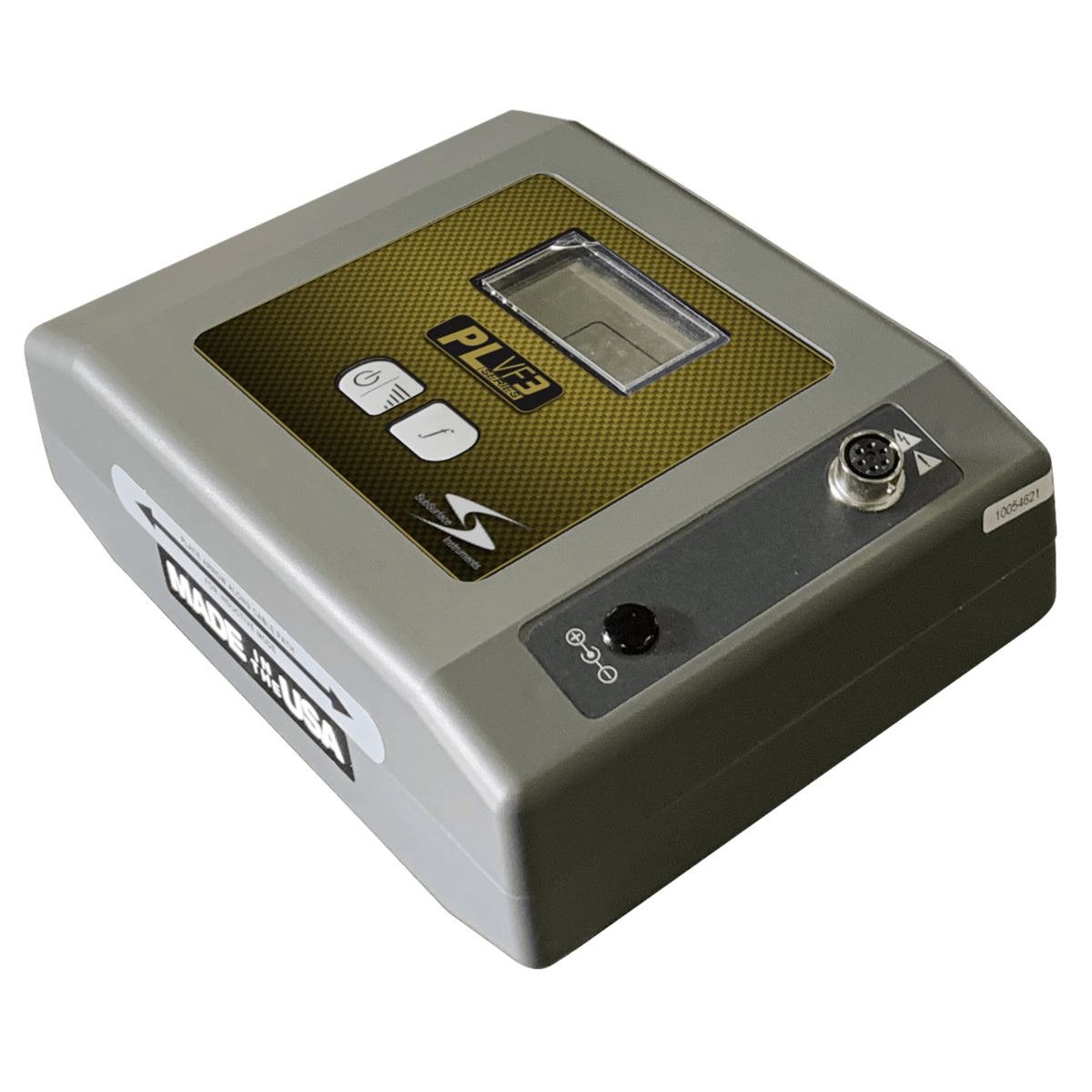

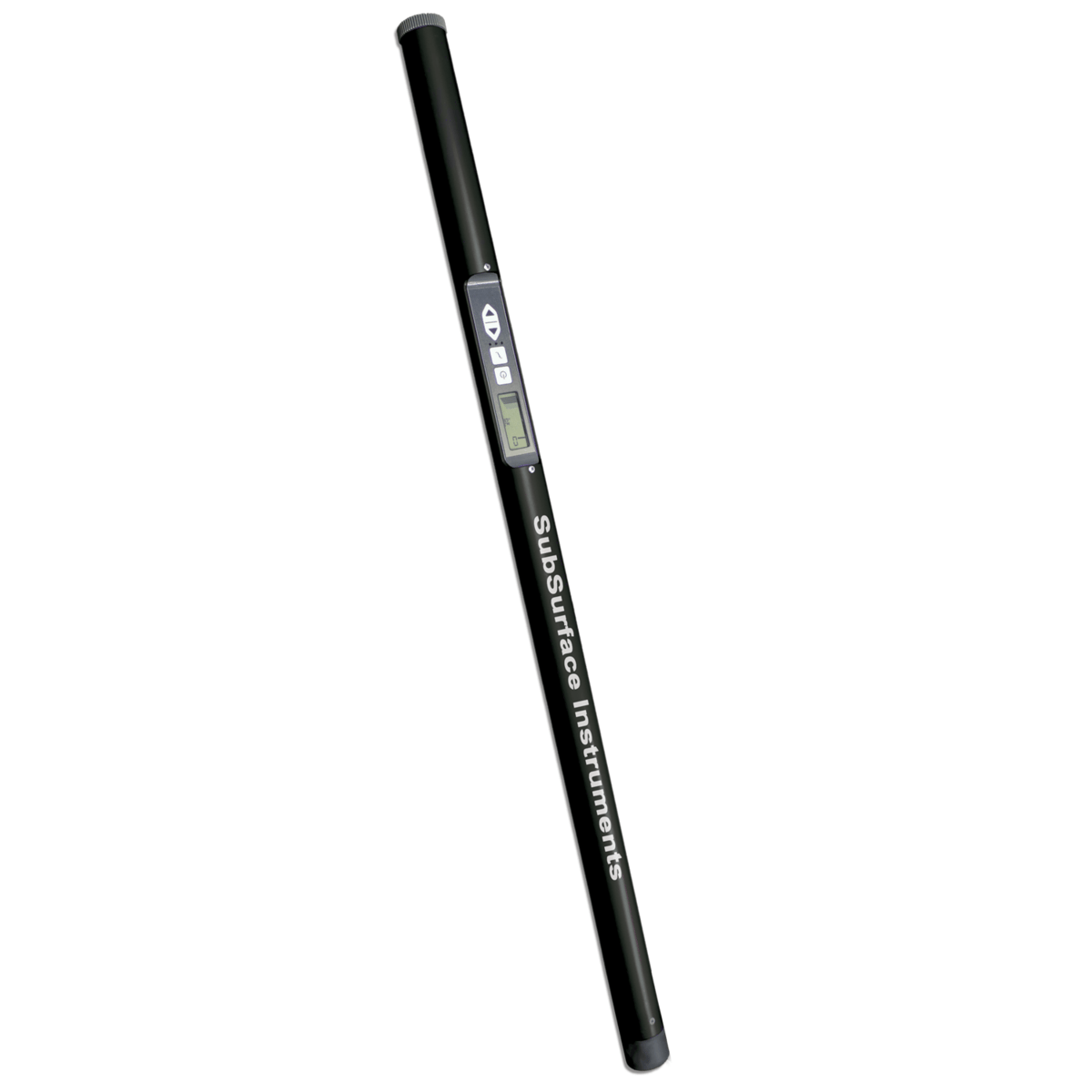

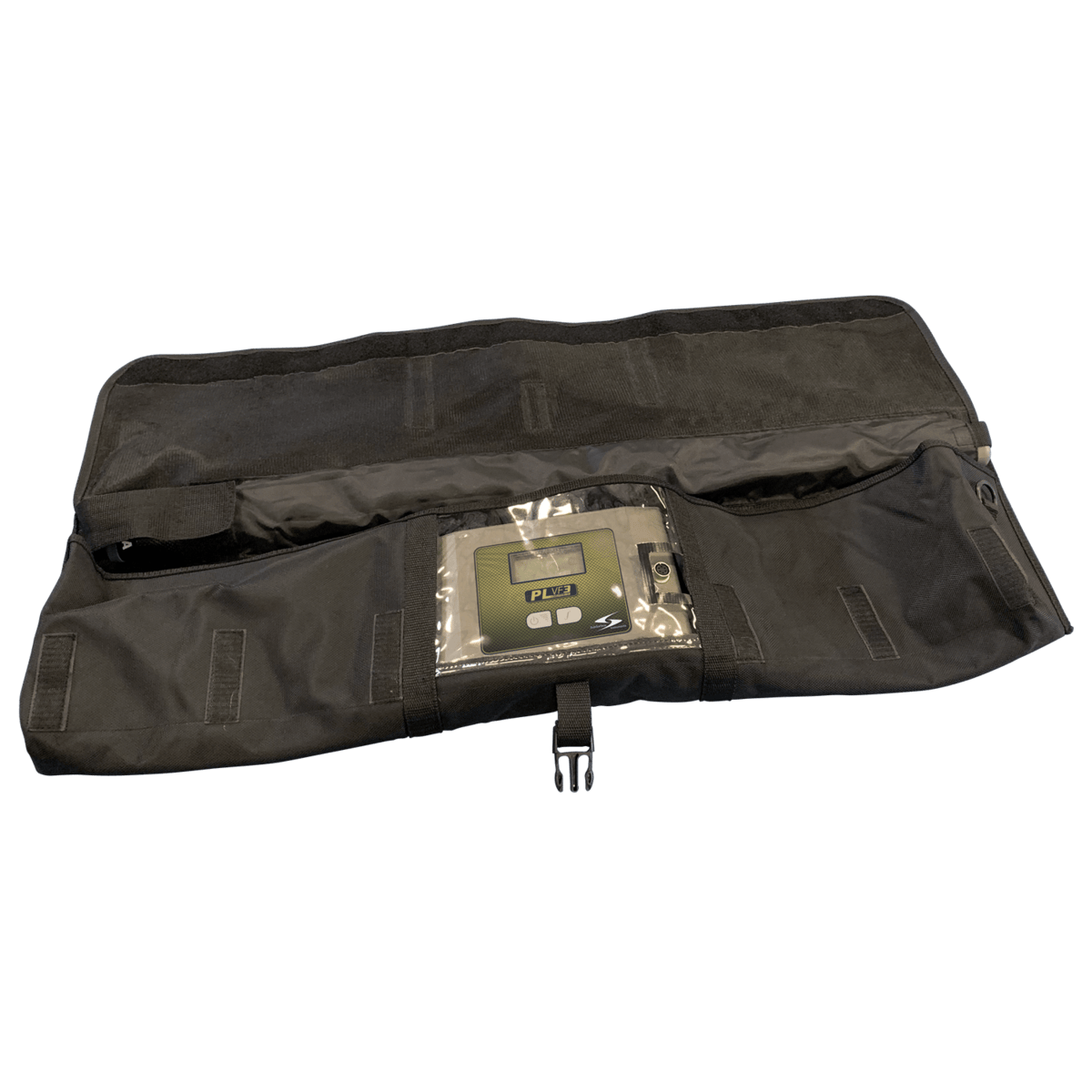

PL-TT receiver, PL-VF3 transmitter, direct connection cable, ground rod, protective carrying case, batteries and user manual. One-year warranty.

Product Specifications

Visual Detection Output Yes
Weight (LB) 1.62 (receiver); 2.2 (transmitter)
Battery Life (HR) 30 to 60 (receiver); 8 to 15 (transmitter)
Transmitter Power (W) 3
Operating Temperatures (F) -4 to 133
Dimensions (IN) 33.3 x 3.4 (receiver); 8.5 x 5.8 x 2.5 (transmitter)
Product Type Pipe & Cable Locator
Brand SubSurface Instruments
Certifications IP65
Battery Type Six "AA" batteries (receiver); Eight "C" batteries (transmitter).
Audio Detection Output Yes
Frequencies 50/60 Hz (passive), 512 Hz, 8 kHz, 33 kHz, 82 kHz

Certifications

  • IP65
