Sludge Judge® - 15 ft. (4.60 m)

Description

The Sludge Judge by Nasco Sampling is designed to take accurate readings of settleable solids, 5% or less, in a variety of liquids, to any depth. It is ideal for sewage treatment plants, chemical plants, and food processing facilities - anywhere that accurate sample levels of settleable solids in noncaustic materials are needed. The unit holds approximately 3 oz. per foot (89 ml per 0.31 m). The Sludge Judge® comes in 5 ft. (1.53 m) sections of 3/4 in. (1.90 cm) plastic pipe with screw-type connectors. The top section includes a nylon rope for raising and lowering the sampler. Individual sections can be combined as required to achieve the length needed.

Features

• Accurately measures settleable solids level in slurries that contain less than 5% solids


• Sampler breaks down into three 5-ft. sections for easy transport


• Length can be extended by adding additional 5-ft. middle sections


• Constructed of 3/4 inch butyrate tubing holding approximately 3 oz. of sample per foot


• Identify by red foot markings and black fittings


• Not designed for sampling of ethanol or ethanol blended fuels

Includes

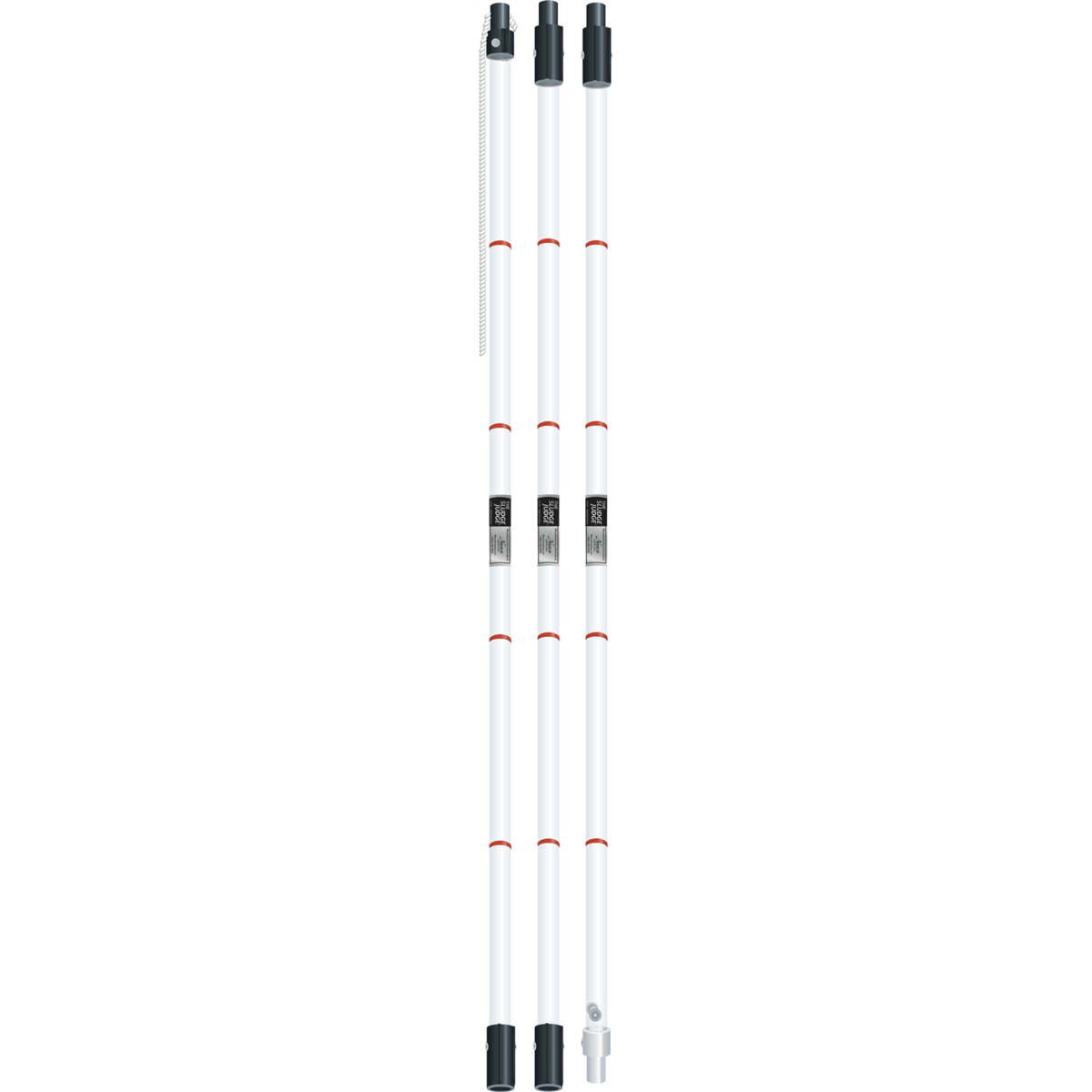

Three 5 ft. sections with screw-type connections (top, middle and bottom). Top section includes rope.

Product Specifications
