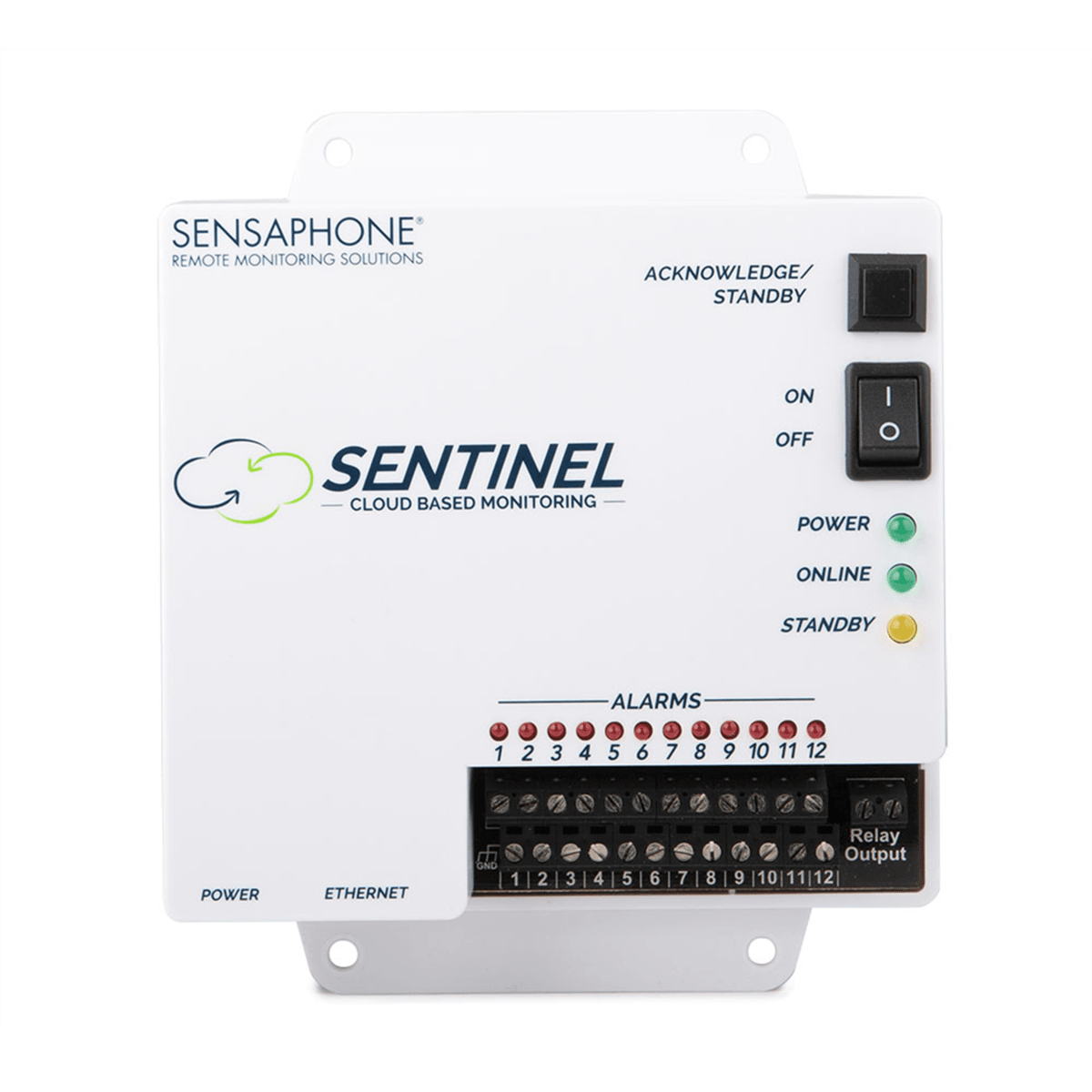

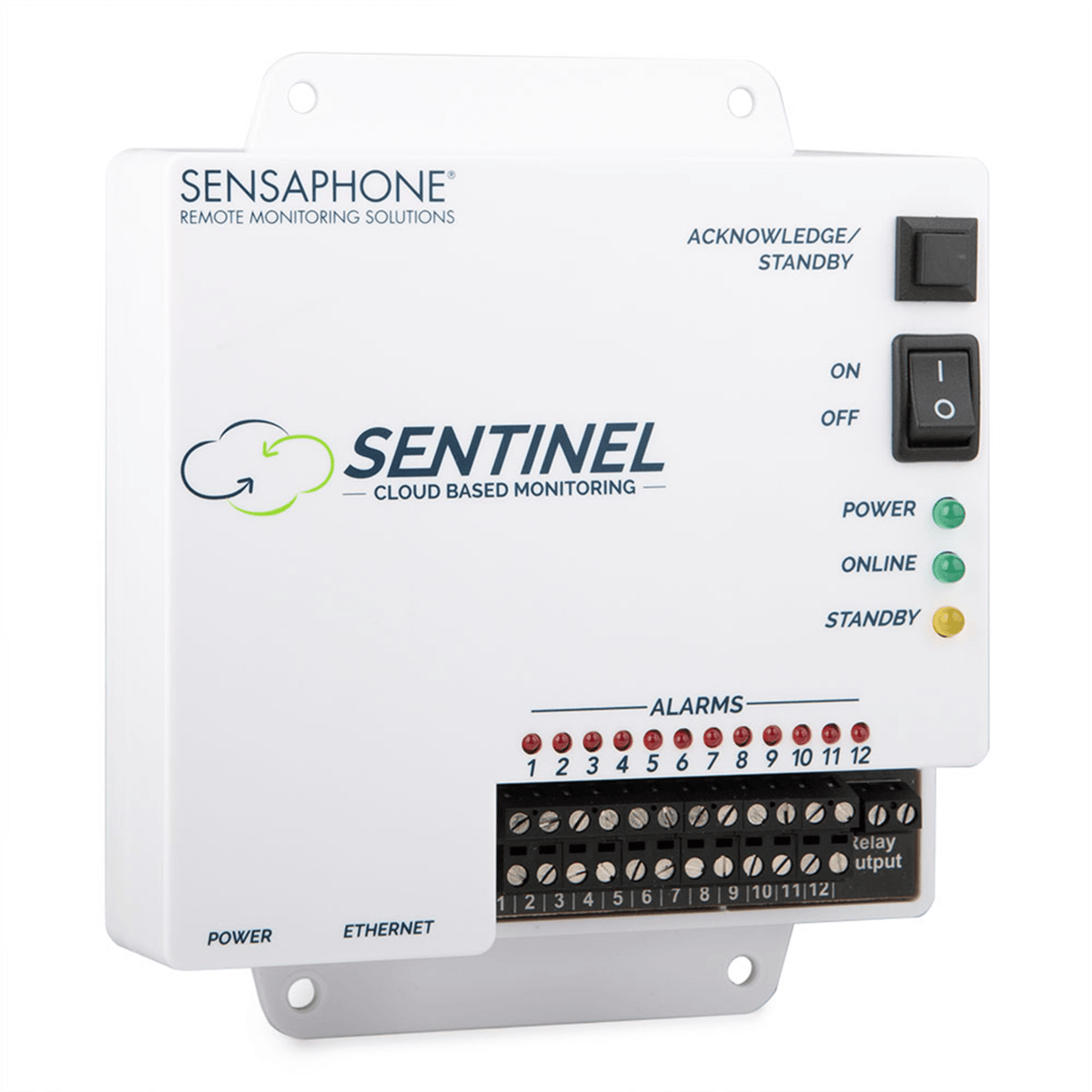

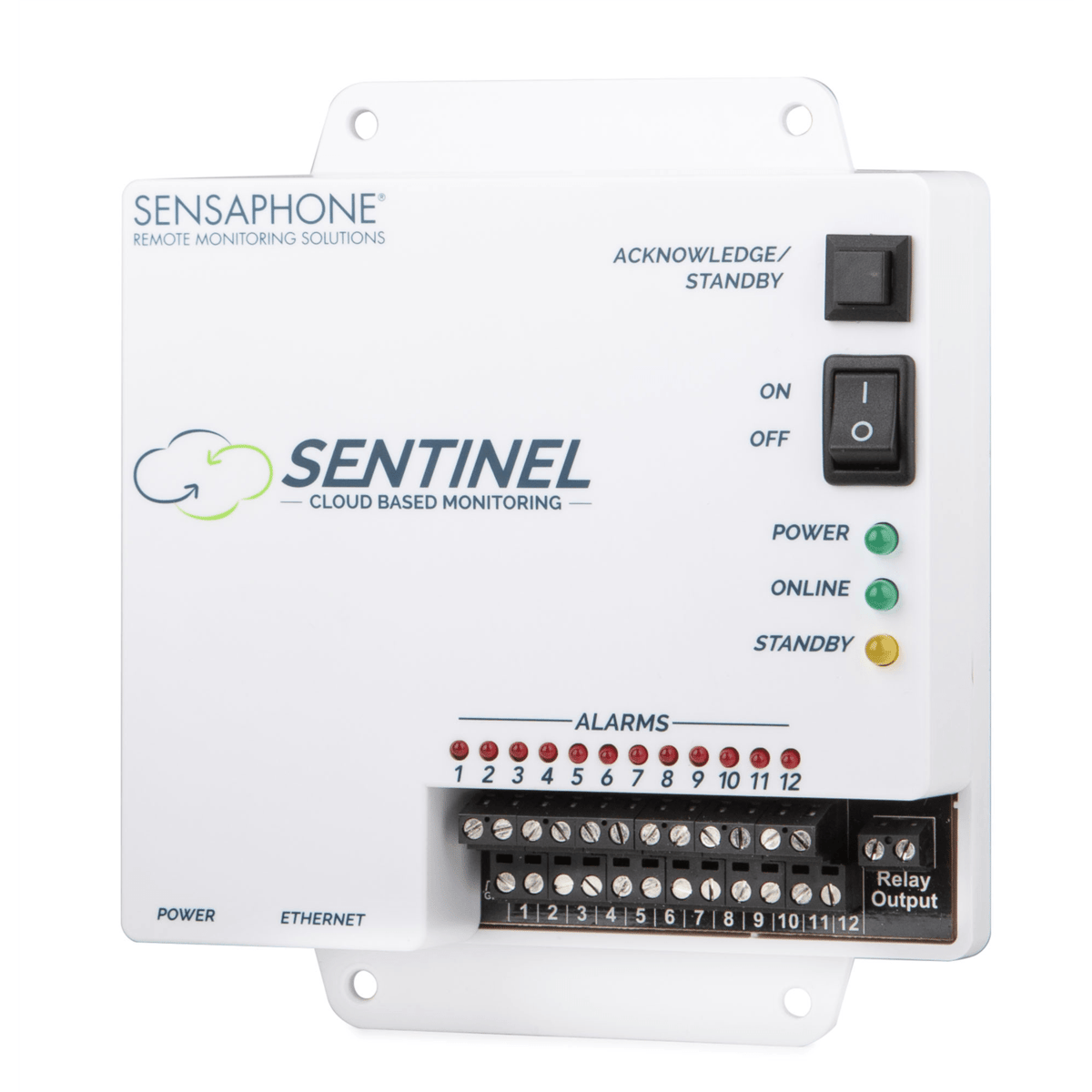

Sensaphone Sentinel Standard Ethernet Version SCD-1200

Description

The Sensaphone Sentinel is a powerful monitoring, alarm, and event logging system. It can monitor equipment and environmental conditions using twelve universal Zones with scalable range, built-in power failure detection, and one relay output for manual control, or automatic control from alarms. The unit will monitor and alarm on twelve zones: these can be N.O./ N.C.(Normally Open or Normally Closed) contact, 4–20mA, or 2.8K or 10K thermistor (temperature sensor). The unit will also monitor AC power, online status, and battery backup condition. On the front of the unit are LED indicators to show the operating status. Each zone (including power, online status and standby mode) has a status LED indicating the alarm status of the Zone. Multiple devices may be programmed from one powerful web-based interface. All programming and device data is stored in the cloud so that it is retained even without power. The unit is capable of performing alarm event logging of the twelve universal Zones, battery and power. A battery-backed real-time clock is also included to time-stamp logged events. Alarm notification can occur via voice call, e–mail or SMS (text message), however voice calls and text messages require a premium subscription plan. The unit comes in an attractive metal enclosure with tabs for wall or panel mounting. Terminal connections for Zones, the relay output and power are easily accessible from the front of the unit. The Sentinel is powered by a plug-in adapter and has a rechargeable backup battery that will power the device for up to 8 hours in the event of a power failure. Circuitry in the unit will maintain precise charging of the battery system.

Features

Twelve sensor inputs to monitor environmental conditions and/or alarm contacts from other equipment.

Cloud–based user interface for programming, data storage, and alarm delivery

Battery backup for uninterrupted performance

Relay output capable of automatic or manual control

Notification via e–mail, text message (optional) and voice call (optional)

Includes

An internal rechargeable battery-backup system will provide 8 hours of continuous remote monitoring and alerting in the event of a power outage and power, as well as power failure monitoring.

Product Specifications
