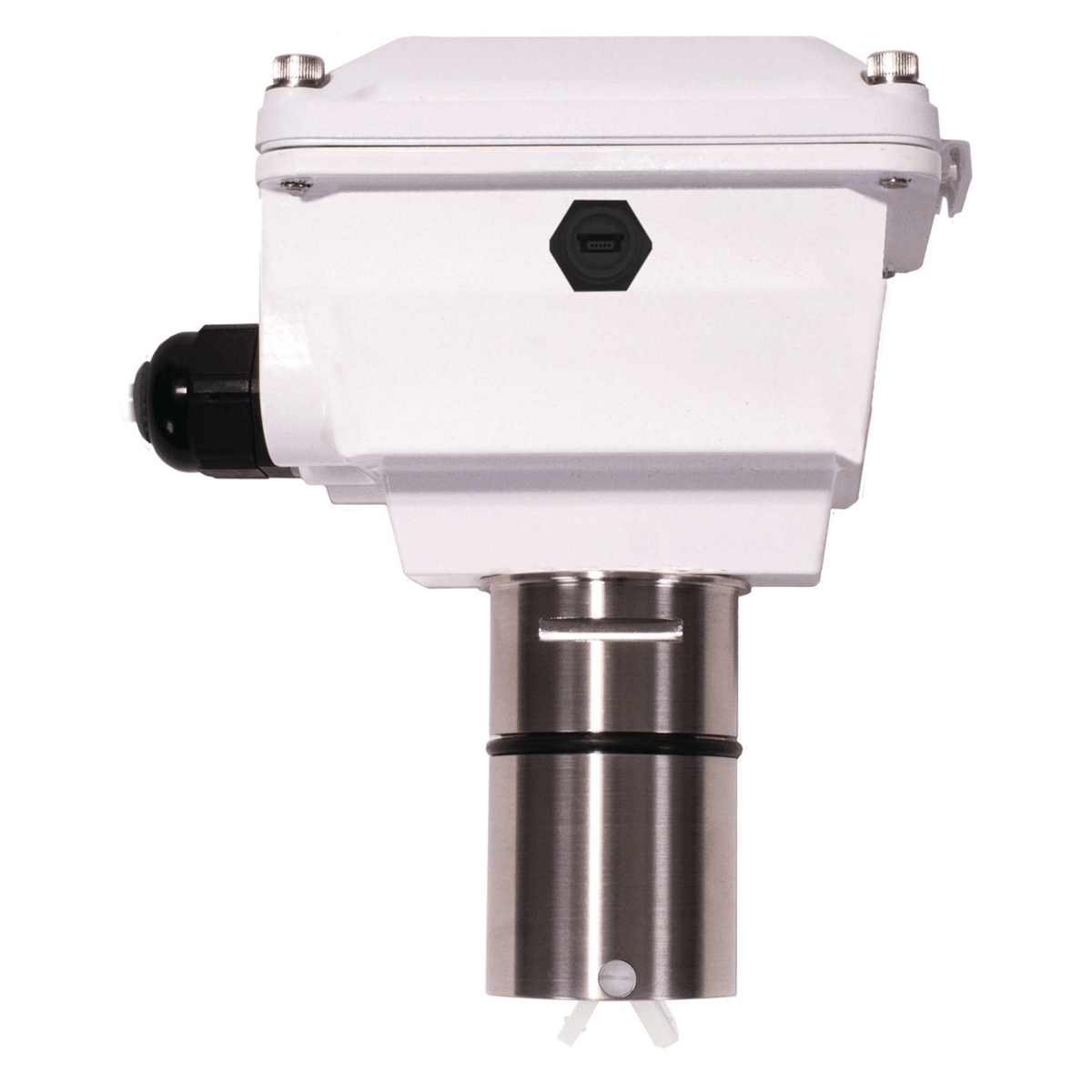

Seametrics® Tee-Mount Paddlewheel Flow Sensor, SS, 4"-8"(Spec Fitting Reqd), use w/FT450, IP820S-04

Description

The Seametrics IP820S-04 Series are SS paddlewheel insertion meters designed for use with a wide variety of clean liquids in pipe sizes 4” to 8”. Bodies are machined from a solid rod for maximum precision. Highquality jewel bearings and nickel-bound tungsten carbide shafts are used for extreme low friction and long life. The rotation of the rotor is detected by a non-drag Hall-effect sensor. Output is a current-sinking pulse, which can be sent long distances (up to 2,000 feet) without a transmitter. This signal can be connected directly to PLC’s and computer cards, as well as a variety of Seametrics controls and displays. For rate and total display, use the FT450 indicator. Electronic modules can be wall- or meter- mounted. The IP800-Series require special fittings that ensure correct depth placement in the pipe. Fittings come in a variety of materials for compatibility with specific applications. Tee fittings are individually wetcalibrated at the factory and marked with the K-factor (pulses per gallon). Saddle fittings must be field-installed on the pipe and do not come wet-calibrated. K-factors for saddles are based on factory-testing.

Features

Low-friction, long-life jewel bearings

Fixed depth in fitting ensures proper placement in pipe

One moving part

Micro-Power sensor ideal for remote locations without AC power

Use with FT450 Flow monitor/totalizers. FT450 internal battery supplies power to the sensor
