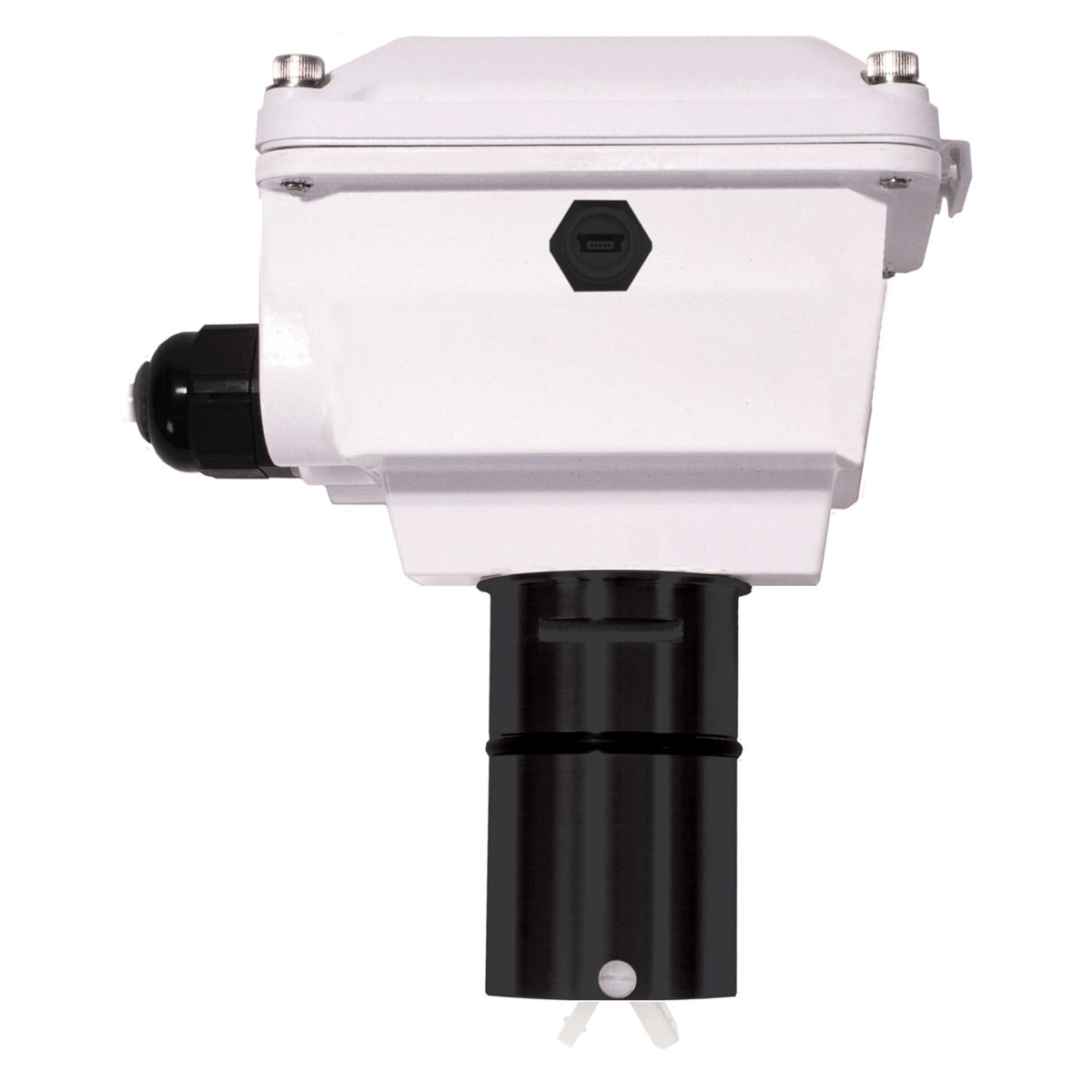

Seametrics® Tee-Mount Paddlewheel Flow Sensor, PVC, 1/2"-3"(Specific Fitting Required), IP810P

Description

The Seametrics IP810P-Series are PVC paddlewheel insertion meters designed for use with a wide variety of clean liquids in pipe sizes 1/2 to 3. Bodies are machined from a solid rod for maximum precision. Highquality jewel bearings and nickel-bound tungsten carbide shafts are used for extreme low friction and long life. The rotation of the rotor is detected by a non-drag Hall-effect sensor. Output is a current-sinking pulse, which can be sent long distances (up to 2,000 feet) without a transmitter. This signal can be connected directly to PLC’s and computer cards, as well as a variety of Seametrics controls and displays. For rate and total display, use the FT430 (externally powered with pulse) or FT440 (loop powered), they all provide digital rate and total displays, as well as a programmable pulse; the FT440 also provides a 4-20 mA analog output. Electronic modules can be wall- or meter- mounted. The IP800-Series require special fittings that ensure correct depth placement in the pipe. Fittings come in a variety of materials for compatibility with specific applications. Tee fittings are individually wetcalibrated at the factory and marked with the K-factor (pulses per gallon). Saddle fittings must be field-installed on the pipe and do not come wet-calibrated. K-factors for saddles are based on factory-testing.

Features

• Low-friction, long-life jewel bearings


• Fixed depth in fitting ensures proper placement in pipe


• One moving part


• Use with FT430 or FT440 Monitor/Totalizers
