Seametrics® Paddlewheel Insertion Flow Sensor, Brass, 12"-40", for use w/FT450 Indicator

Description

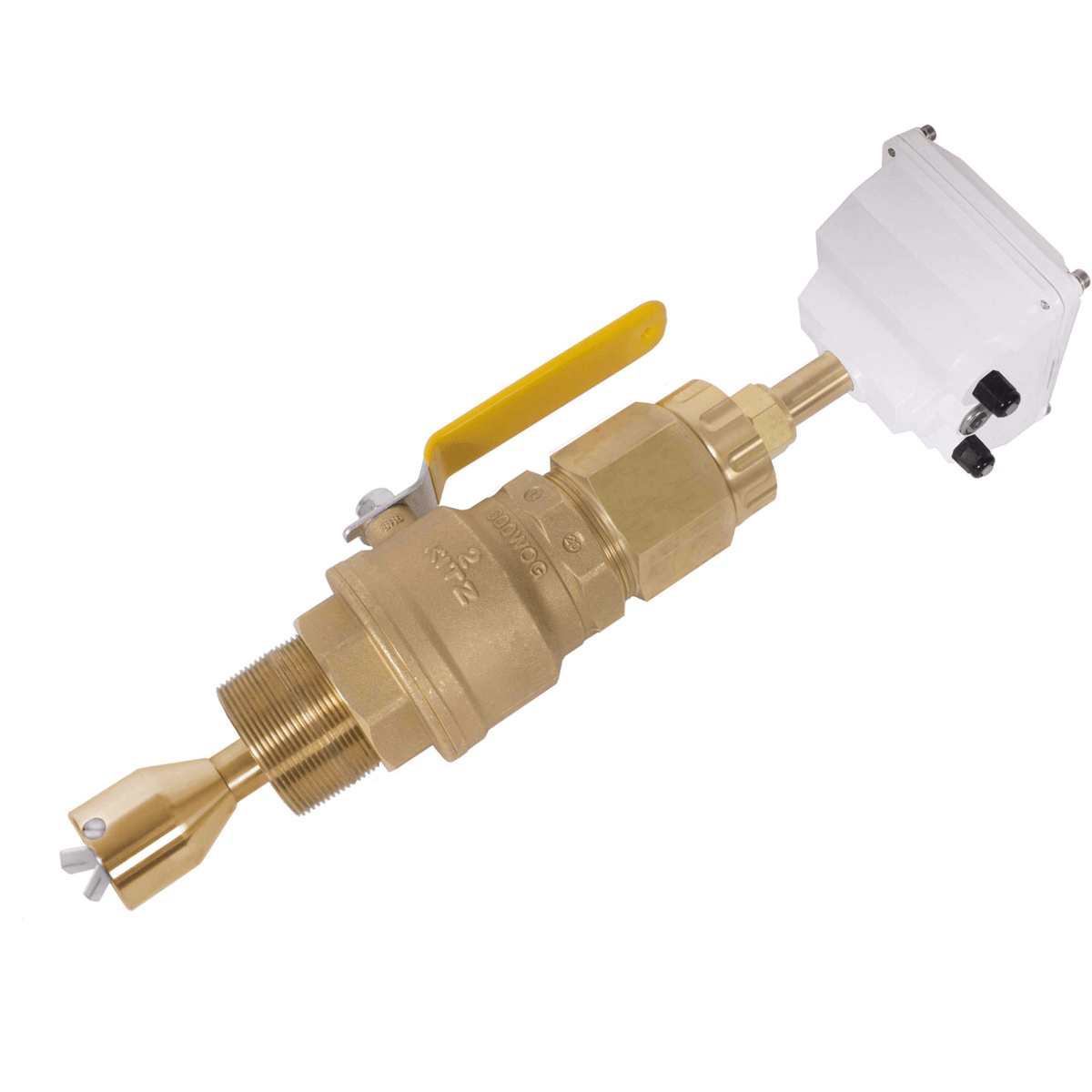

The Seametrics IP210B-04 -Series flow sensors are brass, adjustable depth insertion paddlewheels that fit 12” to 40” pipe. Adapters mate with standard 1-1/2” FNPT threaded fittings such as saddles and weldolets. High-quality jewel bearings and nickelbound tungsten carbide shafts are used for extreme low friction and long life. Ruby bearings and a non-drag Hall-effect sensor give these meters the widest flow range of any paddlewheel on the market. A sensor detects the passage of miniature magnets can be sent for hundreds of feet over unshielded cable without a transmitter and connected directly to many PLC’s and other controls without any additional electronics. A modular system of electronics can be installed directly on the flow sensor or mounted remotely. The IP110B-04 Sensor comes with the Micropower Pickup Option which allows it to be used with the FT450 (battery powered) rate/flow indicator.

Features

Low-friction, long-life jewel bearings

Wide flow range

One moving part

Micro-Power sensor ideal for remote locations without AC power

Use with FT450 Flow monitor/totalizers. FT450 internal battery supplies power to the sensor

Product Specifications
