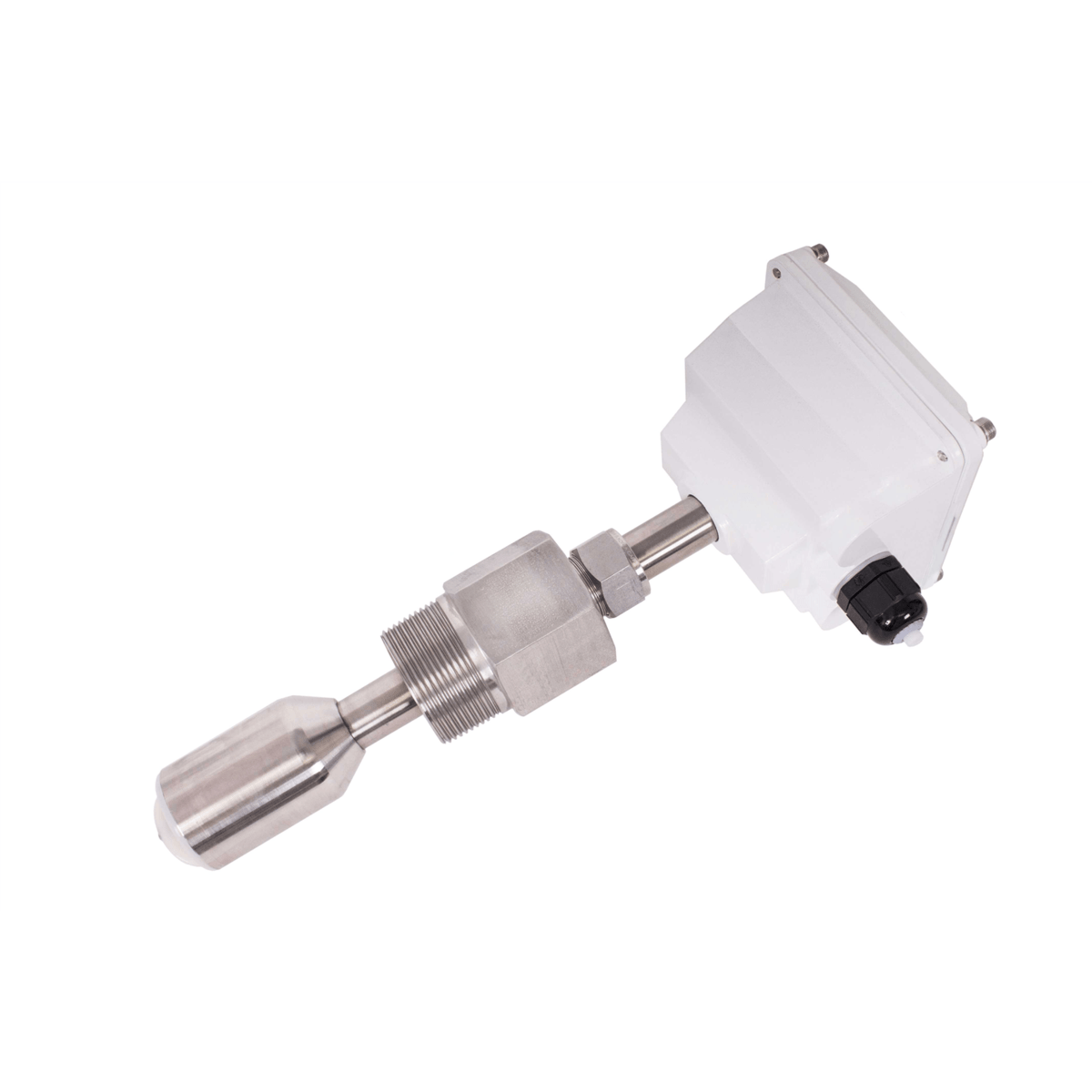

Seametrics® Insertion Electromagnetic Standard Flow Sensor, SS, 10"-48" pipe, EX210S

By Seametrics
$1,916.00 | EA
Product #: 401342
Mfr. Part #: EX210S

This item is in stock

Back

Description

The Seametrics® EX210S adjustable depth insertion magmeter flow sensor can measure clean or turbid water. The complete lack of moving parts make it very reliable. Installation requires 1-1/2" FNPT threaded fitting such as a pipe saddle. Pulse output can interface with PLC or use with a Seametrics FT-Series Flow Monitor/Totalizer for flow rate/total display and optional 4-20mA output.

Features

    Reliable, no moving parts

    Depth adjustable sensor

    Meter extends only about 1/8 of pipe diameter, minimizing potential clogging with debris

    Use SS model for potable water applications

    Use for "full pipe" applications

    Use with FT430 or FT440 Monitor/Totalizers

Product Specifications

Sensor Cable Length UOMFT
Input5V pulse or contact closure
Power12-25 VDC, 250 mA minimum
Fitting Size1-1/2"
Conductivity20
Output(2) Pulse Outputs, Opto-Isolated
Pressure Max (PSI)200
BrandSeametrics
Conductivity UOMuS
Fitting Size TypeFNPT
Empty Pipe DetectionY
Accuracy1% of full scale
Sensor Cable Length18
Pulse Output(2) Pulse Outputs, Opto-Isolated
