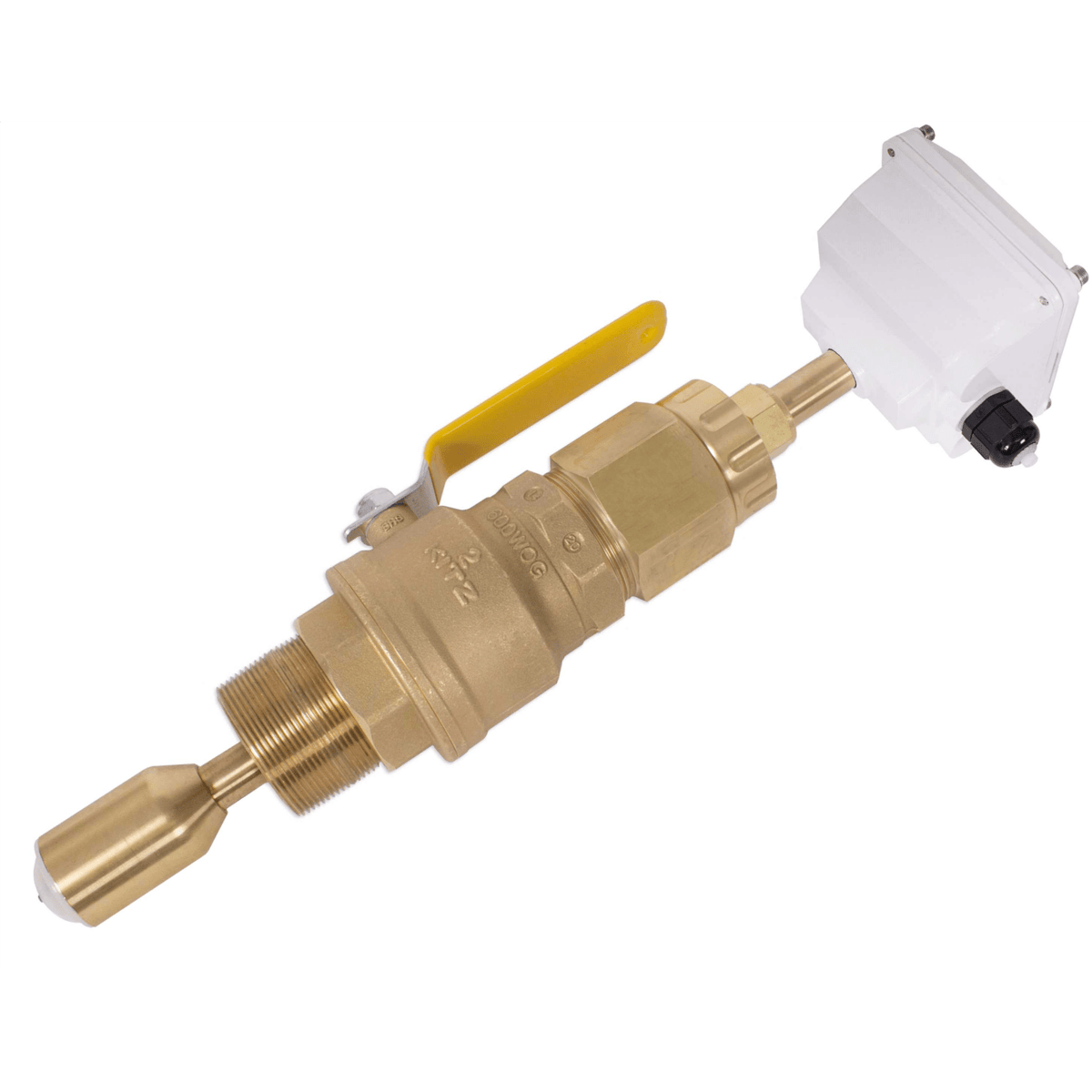

Seametrics® Insertion Electromagnetic Standard Flow Sensor, Brass, 3"-10" pipe, EX110B

By Seametrics
$1,891.00 | EA
Product #: 401336
Mfr. Part #: EX110B

This item is in stock

Back

Description

The Seametrics® EX110B adjustable depth insertion magmeter flow sensor can measure clean or turbid water. The complete lack of moving parts make it very reliable. Installation requires 1-1/2" FNPT threaded fitting such as a pipe saddle. Pulse output can interface with PLC or use with a Seametrics FT-Series Flow Monitor/Totalizer for flow rate/total display and optional 4-20mA output.

Features

  • Reliable, no moving parts

  • Depth adjustable sensor

  • Meter extends only about 1/8 of pipe diameter, minimizing potential clogging with debris

  • Use Brass model for non-potable water applications

  • Use for "full pipe" applications

  • Use with FT430 or FT440 Monitor/Totalizers

Product Specifications

Sensor Cable Length UOM FT
Input 5V pulse or contact closure
Power 12-25 VDC, 250 mA minimum
Fitting Size 1-1/2"
Conductivity 20
Output (2) Pulse Outputs, Opto-Isolated
Pressure Max (PSI) 200
Brand Seametrics
Conductivity UOM uS
Fitting Size Type FNPT
Empty Pipe Detection Y
Accuracy 1% of full scale
Sensor Cable Length 18
Pulse Output (2) Pulse Outputs, Opto-Isolated
