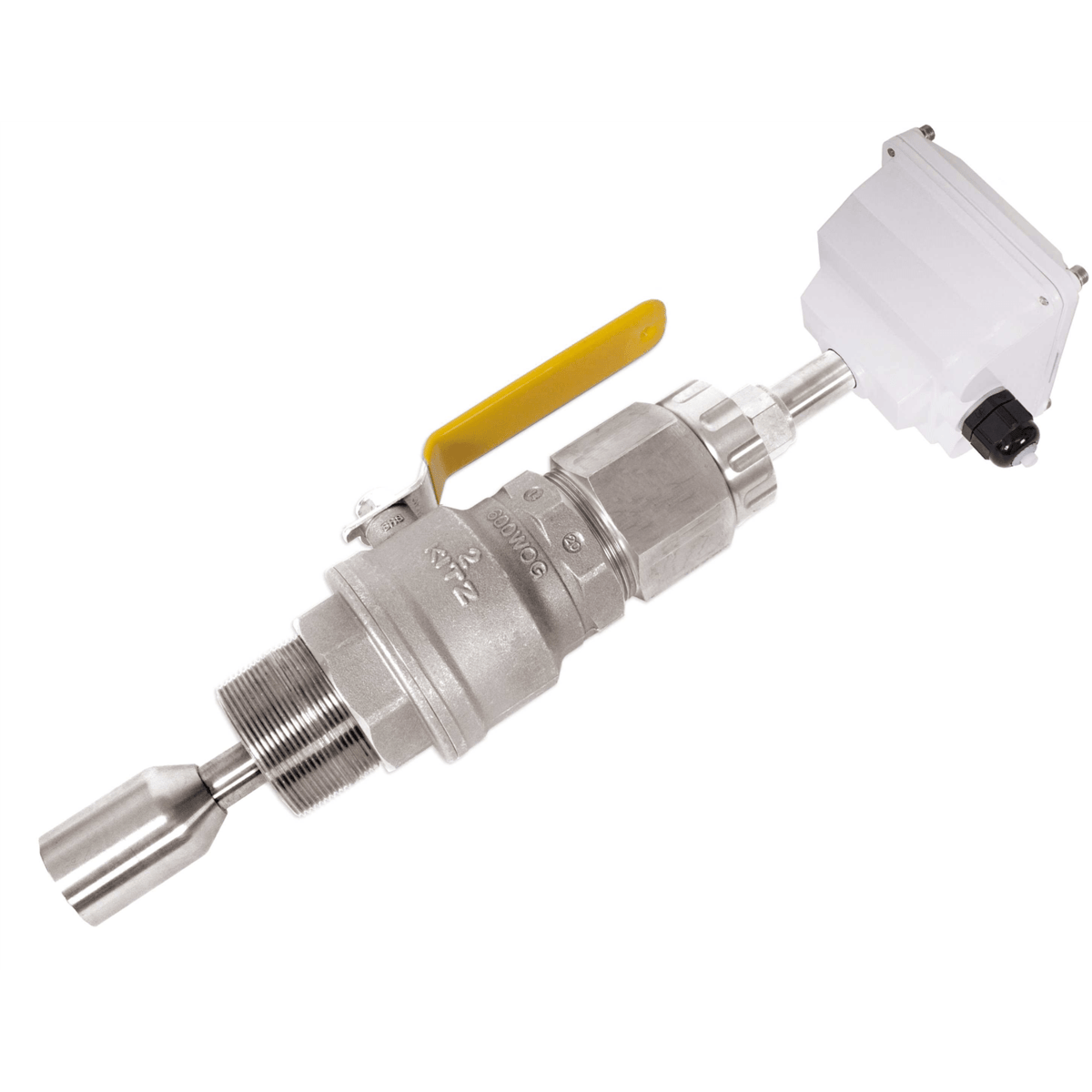

Seametrics® Insertion Electromagnetic Flow Sensor, Bronze Hot Tap, SS Body, 10"-48" pipe, EX250S

Description

The Seametrics® EX250S hot tap, adjustable depth insertion magmeter flow sensor can measure clean or turbid water. The complete lack of moving parts make it very reliable. Installation requires 2" FNPT threaded fitting such as a pipe saddle. Includes a 2" MNPT Bronze isolation valves for hot-tap applications for installation and removal under pressure. Pulse output can interface with PLC or use with a Seametrics FT-Series Flow Monitor/Totalizer for flow rate/total display and optional 4-20mA output.

Features

Reliable, no moving parts

Depth adjustable sensor

Meter extends only about 1/8 of pipe diameter, minimizing potential clogging with debris

Use SS model for potable water applications

Use for "full pipe" applications

Use with FT430 or FT440 Monitor/Totalizers

Product Specifications
