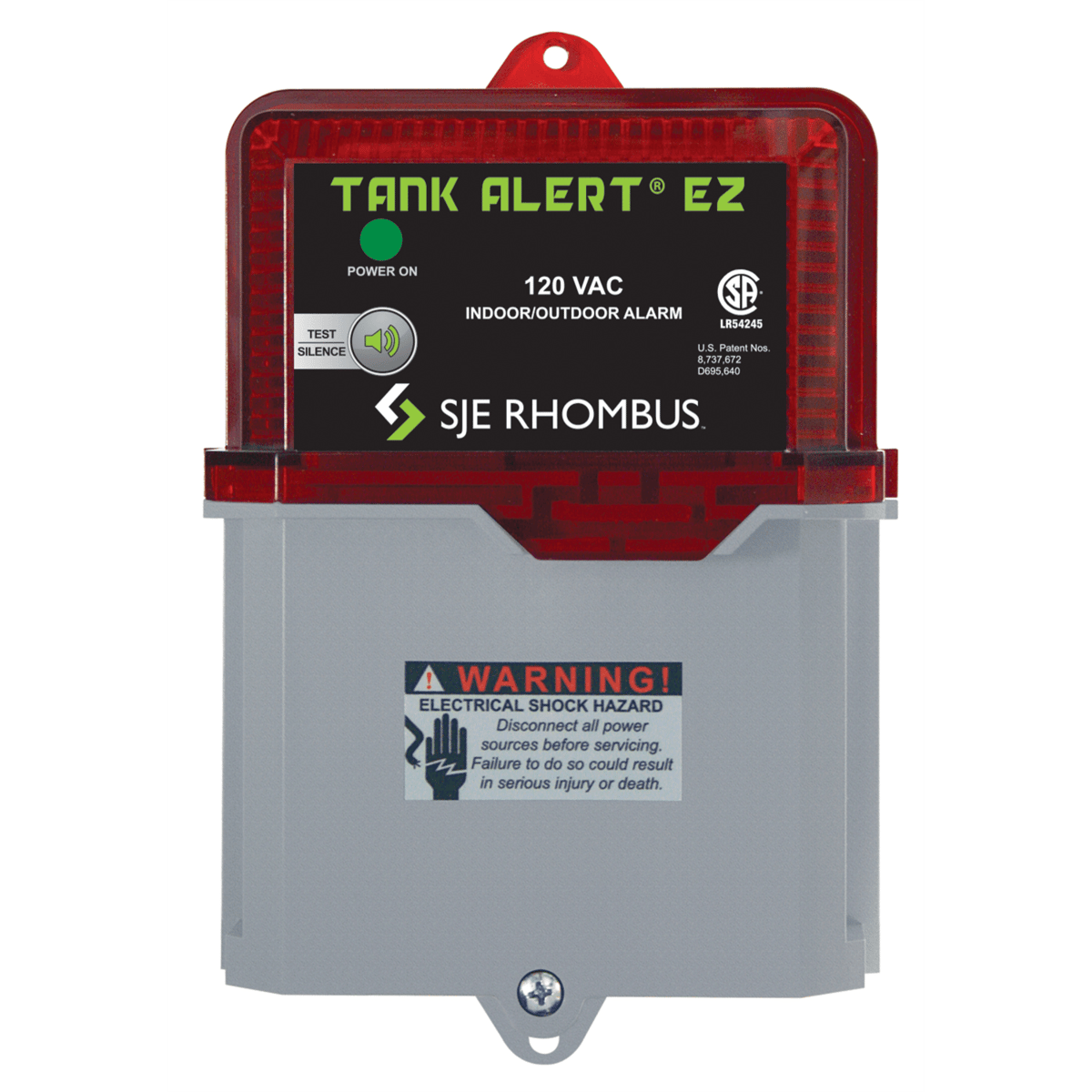

SJE Tank Alert® EZ, TAEZ-01H (120 VAC w/15’ SJE SignalMaster® High Level)

Description

The SJE Tank Alert® Alarm System monitors liquid levels in lift stations, sump pump basins, holding tanks, sewage, agricultural and other water applications. The indoor/outdoor alarm is easy to install and features an innovative, sleek 2-color molded enclosure which integrates the red LED translucent beacon. The alarm sounds and the upper housing half illuminates when a liquid level condition occurs. The audible alarm can be silenced be pressing the Test/Silence button, but the alarm light will remain on until the condition is remedied. Once the condition is cleared, the alarm will automatically reset. A green "Power On" light indicates power to the alarm panel.

Features

Type 3R Enclosure, Water-tight, external mounting tabs

Removable lower cover provides easy access for field wiring

Includes 15' Normally Open, SJE SignalMaster® Float Switch

Alarm horn sounds at 82 decibels at 10 FT

Includes Auxiliary alarm contacts for easy attachment to remote devices

Automatic alarm reset, horn silence switch, alarm test switch

Enclosure has indicator marks on bottom for easy placment of cord entry locations

Interlocking enclosure features unique sound chamber to amplify the horn while helping to prevent moisture from entering
