REED FEED TAP DRILLING MACHINE COMPLETE KIT 3/4-2"

Description

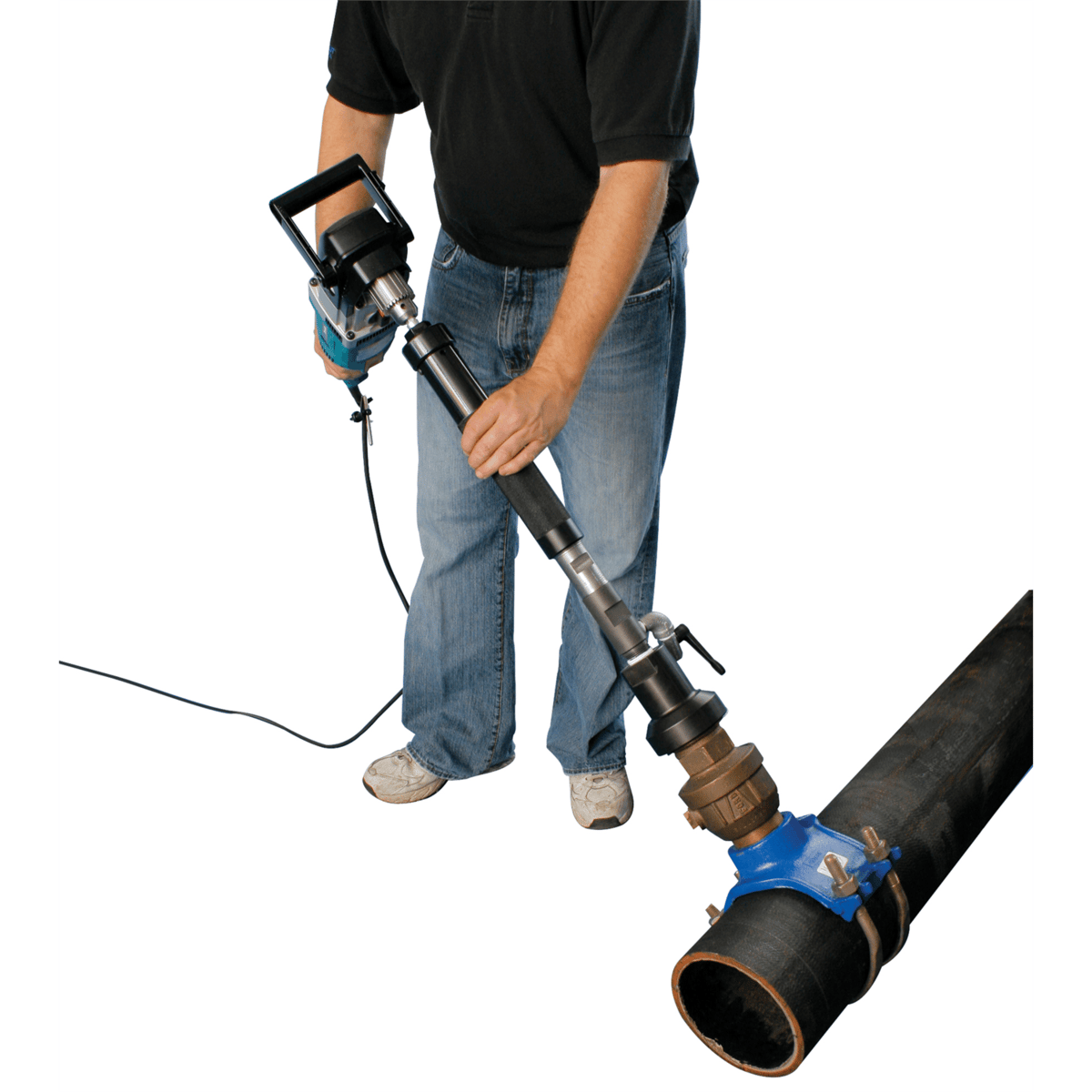

REED’s Feed Tap™ is a great waterworks tool that drills through PVC, PE, cast iron and ductile iron pipe while under pressure using a corporation stop inserted into a service saddle. The compact design, featuring a separate, independent feed control for advancing the heavy-duty shell cutter into the pipe, allows the user to easily complete the tap using a drill (not included) for cast and ductile iron, or manual power (7/16 wrench) for PVC/PE and other plastic pipe. The independent feed control advances the shell cutter for tapping PVC pipe as recommended by Uni-Bell PVC Pipe Association. This kit comes complete with all corporation adapters, shell cutters, shell cutter adapters, and a ratchet wrench with socket to cover ¾ to 2 services in PVC and PE. Each machine ships with a sturdy carrying case.

Features

• FT2000UNIV kit contains machine, corp adapters and cutters to saddle tap ¾ – 2 for flare, compression and NPT applications


• Compact design, featuring a separate, independent feed control for advancing the heavy-duty shell cutter into the pipe, allows the user to easily complete the tap using a drill


• To saddle tap cast/ductile iron pipe, use drill power


• According to Uni-Bell PVC Pipe Association recommendations, PVC and other plastic pipe must be tapped manually. Add on Reed's #04428 and #48206 as the ratchet wrench and socket to fit the Feed Tap machine

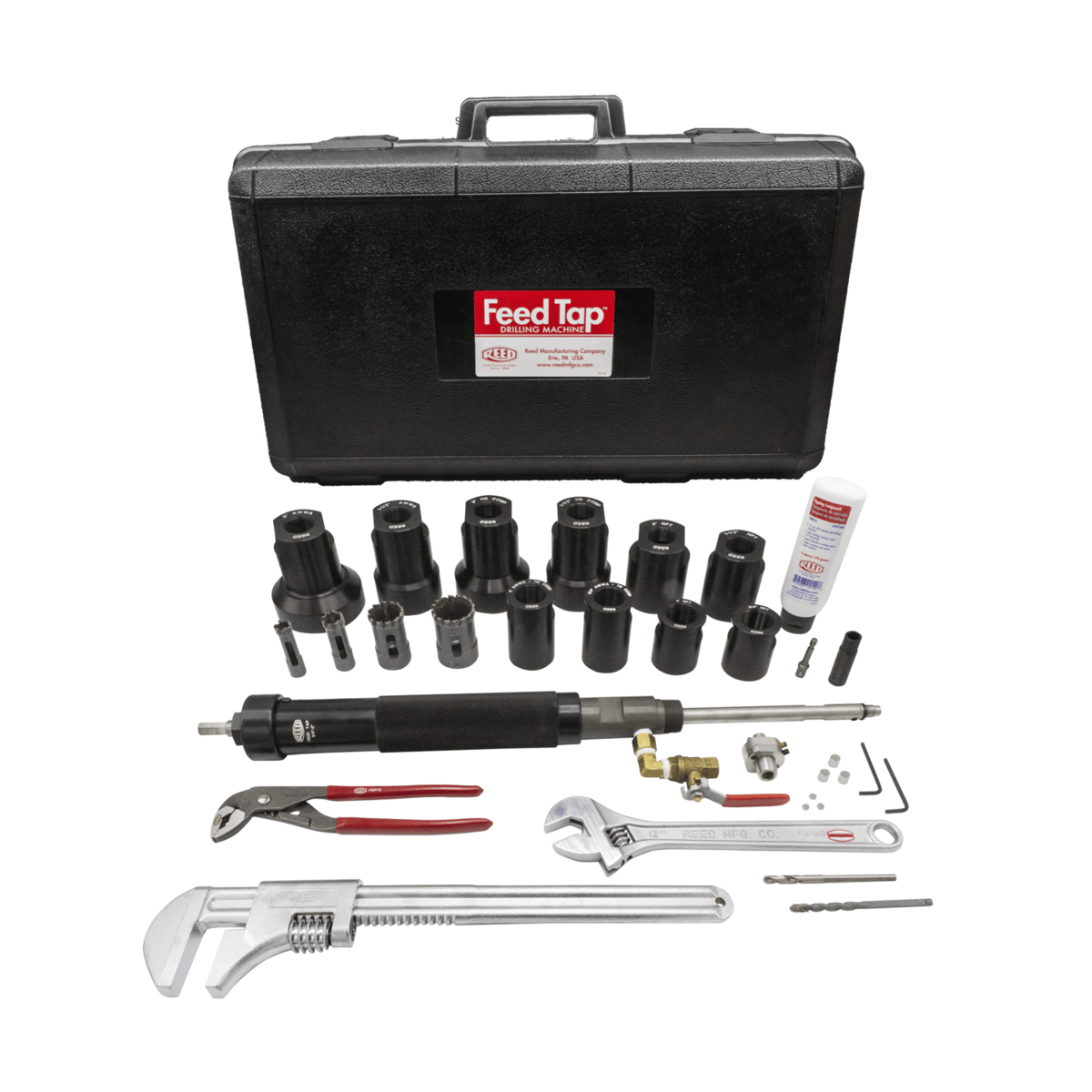

Includes

machine, corp adapters and cutters to saddle tap ¾ – 2 for flare, compression and NPT applications

Product Specifications
