Raven SID Rotary Sludge Interface Detector, 50' Cable

$1,846.46 | EA
QuantityPrice
1 – 2$1,846.46
3 +$1,754.14
Product #: 700437
Mfr. Part #: S-40100-50

This item is in stock

Description

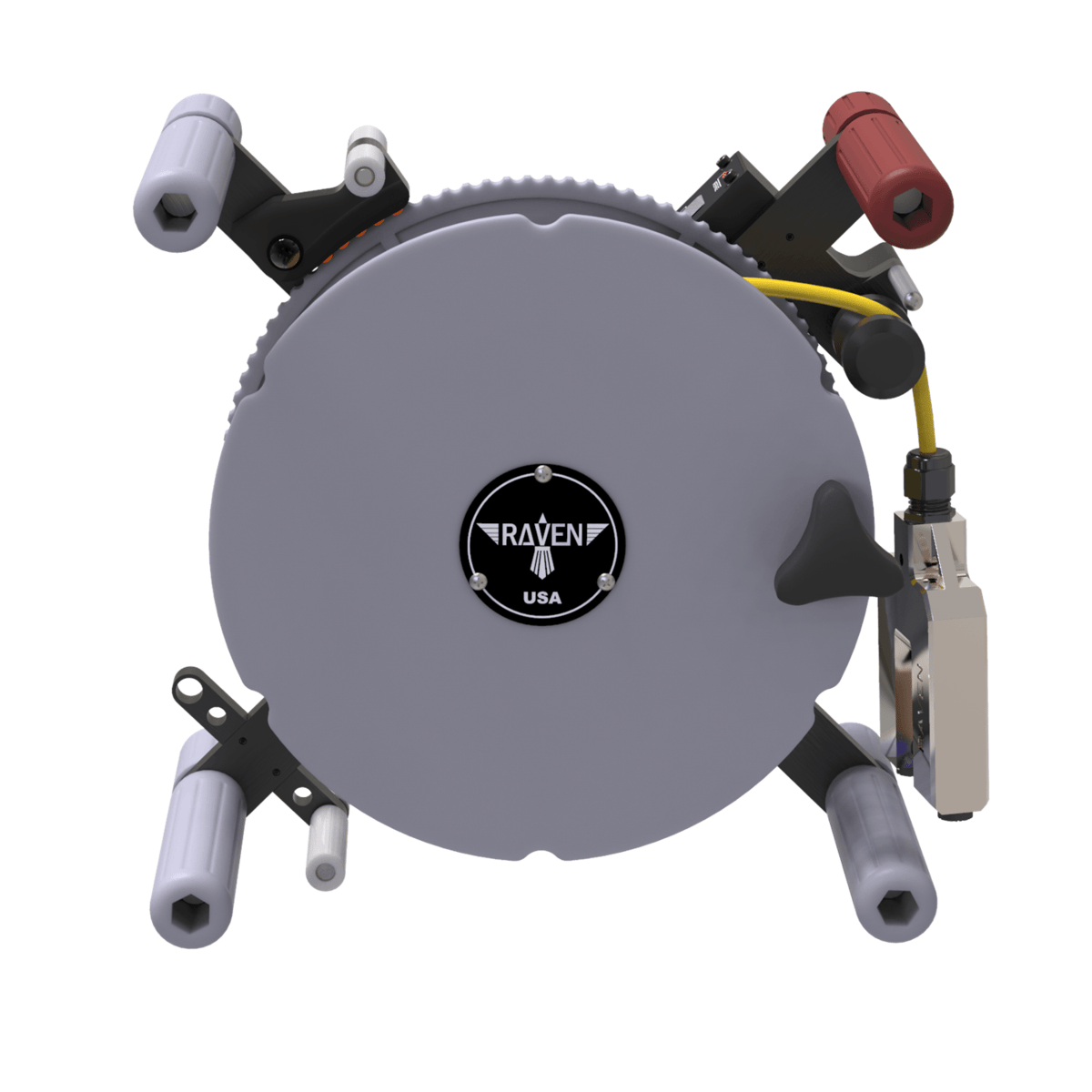

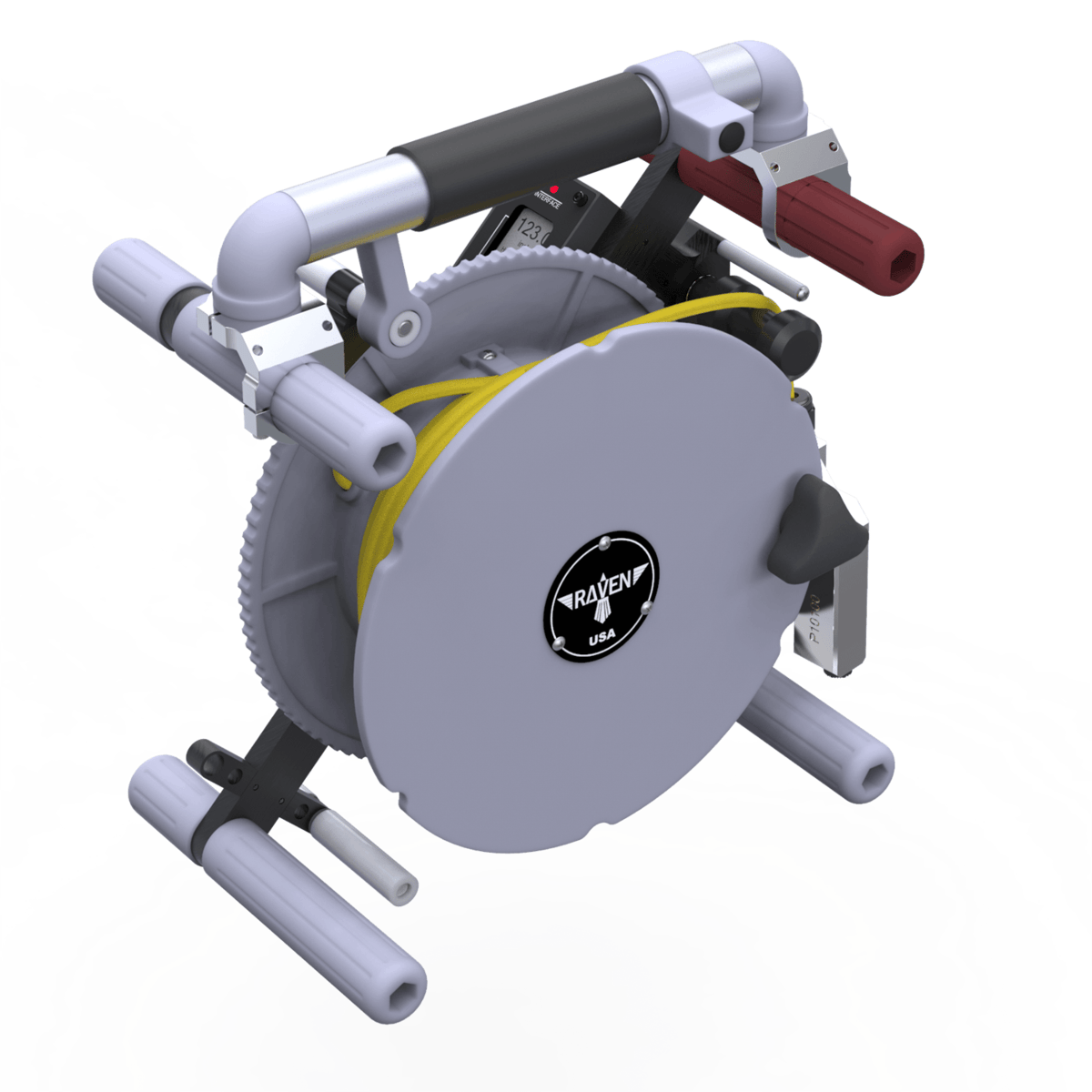

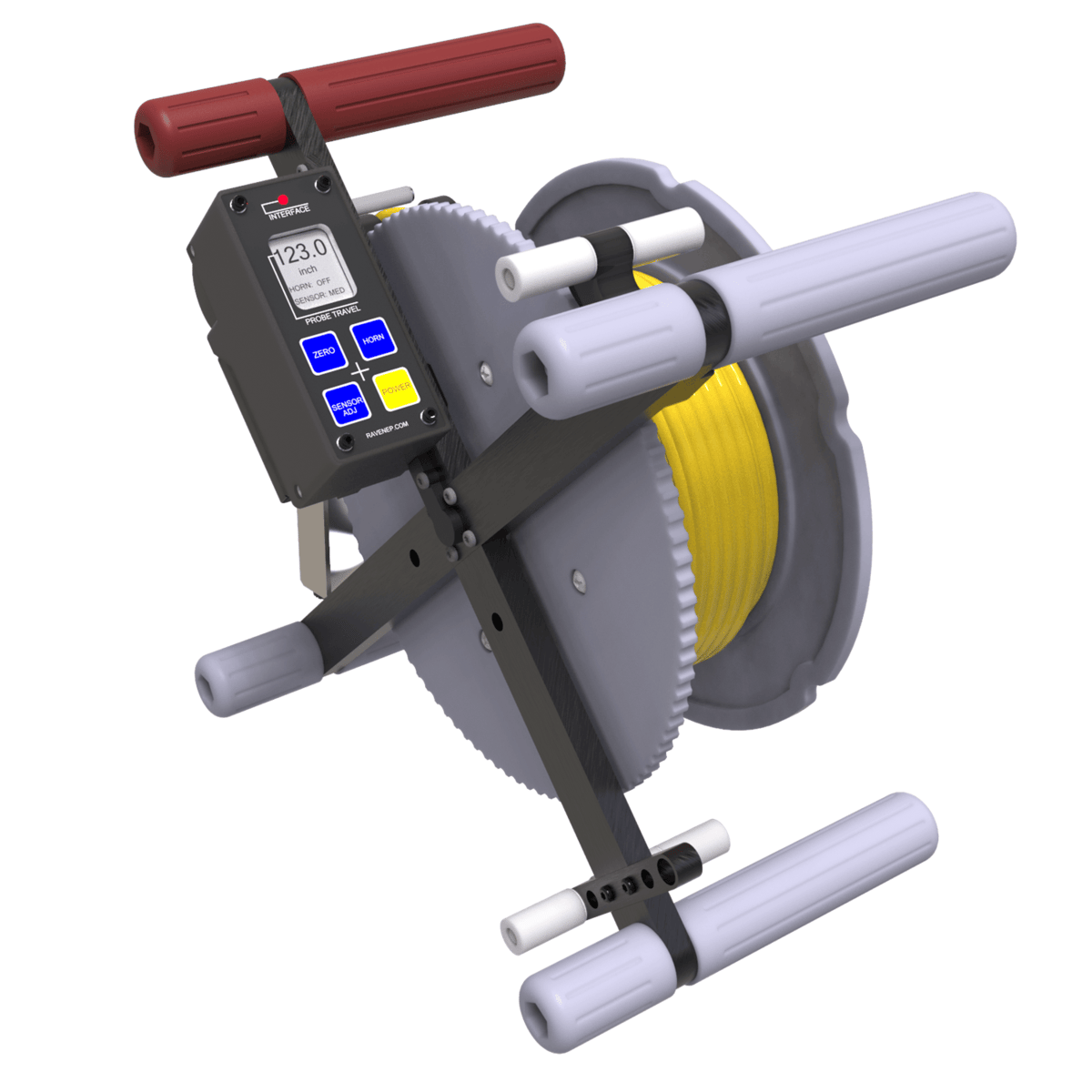

The Raven SID Rotary Portable Sludge Interface Detector is a portable instrument designed specifically to detect the sludge blanket interface and display the interface elevation with a precision depth counter. A robust protective cage, IP67 sealed electronics, modular components, and a solid stainless steel sensor probe ensures reliability and durability. Base Stations (sold separately) mounted on guard railings ensure accurate and repeatable measurements while operators remain contact-free and clear of the fluid medium. Base Stations are available in multiple configurations and will mount or adapt to any fixture or guard rail. With a single SID Rotary, an operator can service multiple tanks equipped with Base Stations.

Features

  • Release the probe and reel it in like a fishing reel

  • No touching wet surfaces; operators will appreciate this benefit

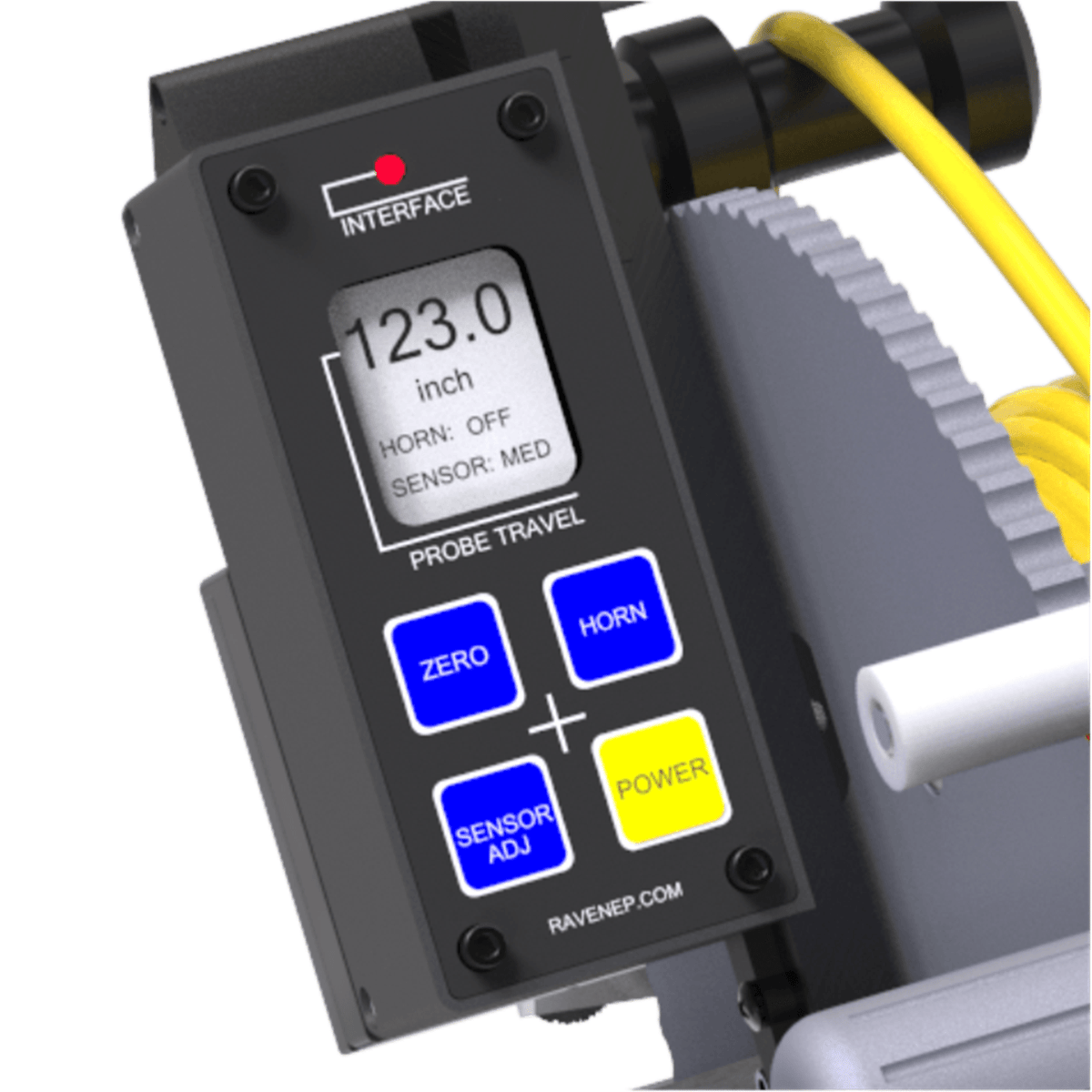

  • Digital counter shows sludge elevation in inches or centimeters

  • Backlit display

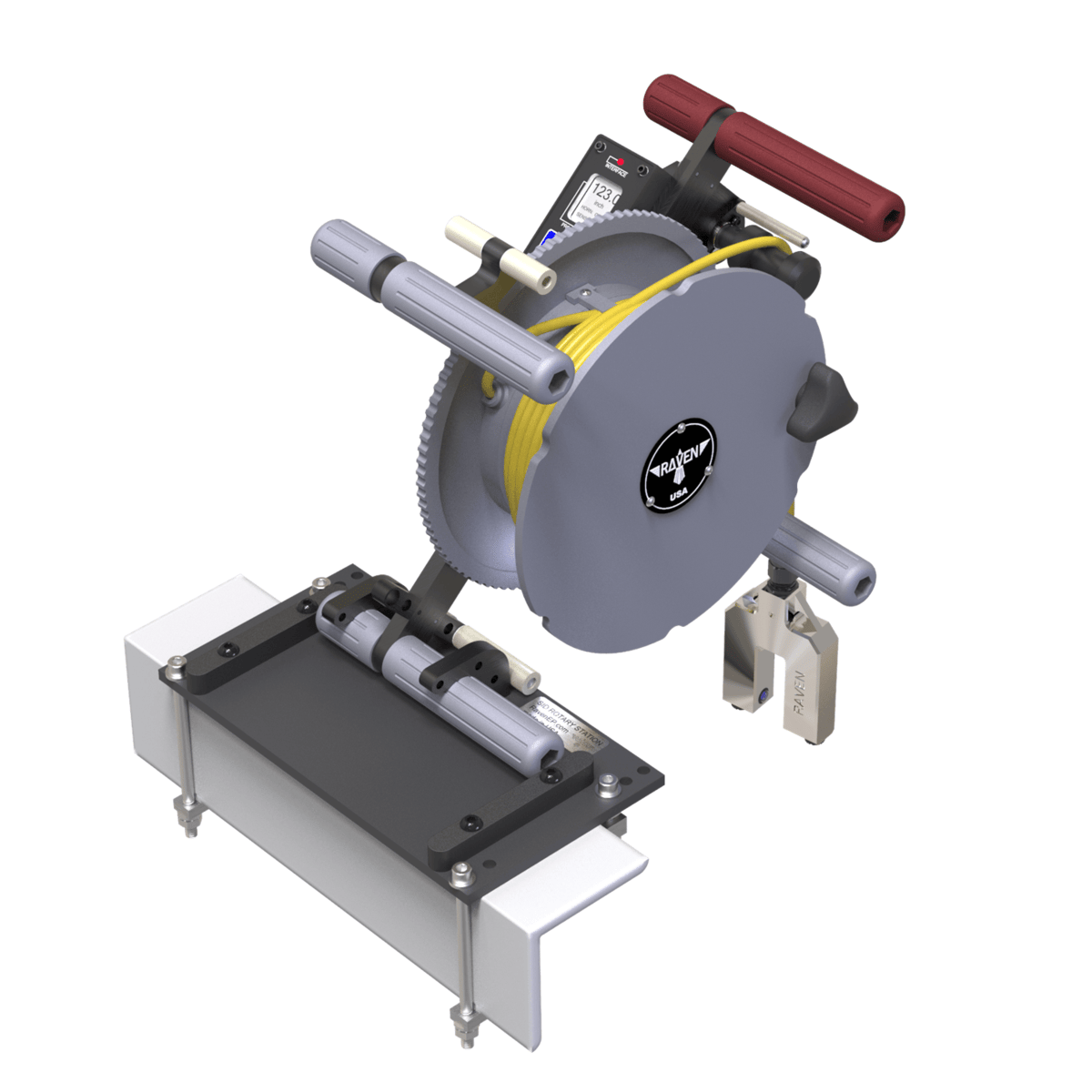

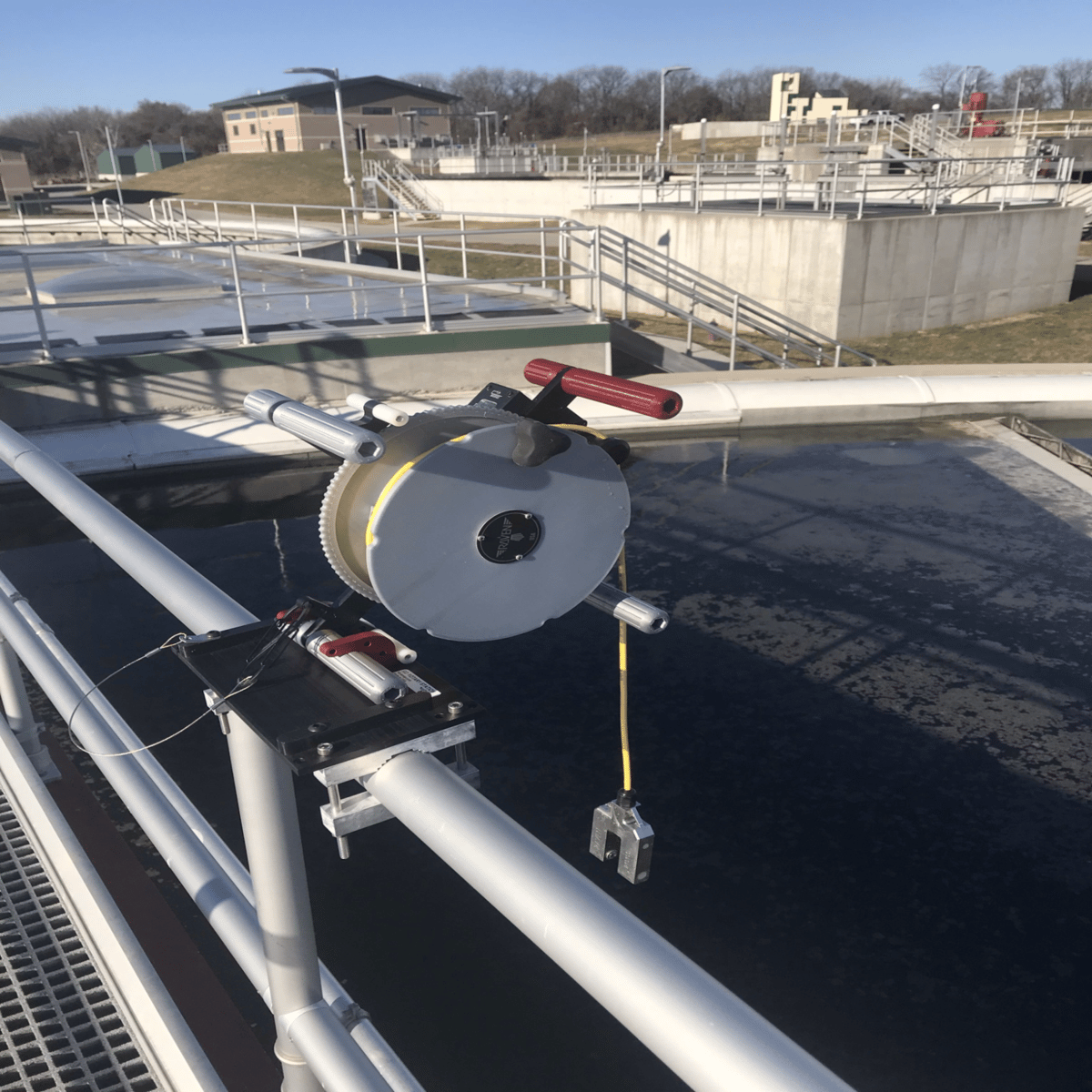

  • Rail-mounted Base Stations ensure accurate measurements

  • Lightweight and compact to service multiple tanks

  • Stainless steel infrared sensor for long-lasting performance

Product Specifications

Weight 7.0000
