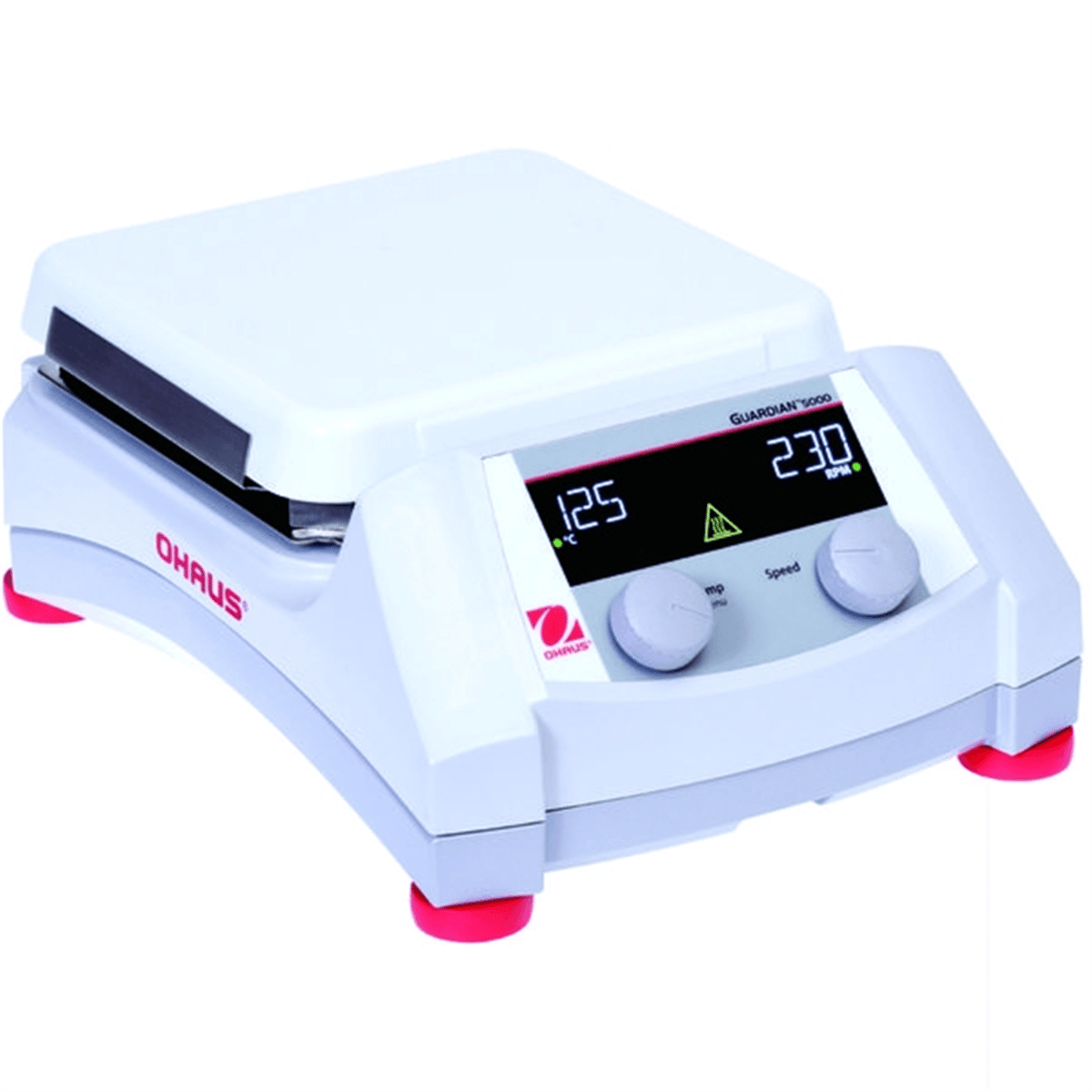

Ohaus Guardian 5000 Hotplate Stirrer, 7" x 7" Plate, 15 L Capacity, 30500520

By OHAUS
$702.95 | EA
Product #: 706072
Mfr. Part #: 30500520

This item is in stock

Back

Description

OHAUS Guardian 5000™ Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Select from five models with three plate sizes for your everyday heating and stirring applications.

Features

  • Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples

  • Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon

  • Stirring from 60 to 1600 rpm, Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 1.5 (3.8 cm) PTFE coated stir bar

  • Probe connection, SmartHousing™ stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops

  • Hot top indicator light, audible alarm, SafetyHeat™ protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints

Product Specifications

Function Heating and Stirring
Power Consumption 1,080W
Calibration Temperature Calibration 3 Plate/3 Probe
Power 120V; 10A; 50/60Hz
Speed Range 60 to 1600 rpm
Speed Stability +/-2%
Net Weight (LB) 5.7
Brand Ohaus Corporation
Dimensions 12.2" x 4.8" x 8.8"
Display Custom Backlit LCD
Operating Conditions 41°F – 104°F (5°C – 40°C)
Plate Construction Ceramic
Temperature Stability +/-3% Plate, below 100°C +/-2°C and +/-1% Probe, below 100°C +/-1°C
Plate Size 7" x 7"
