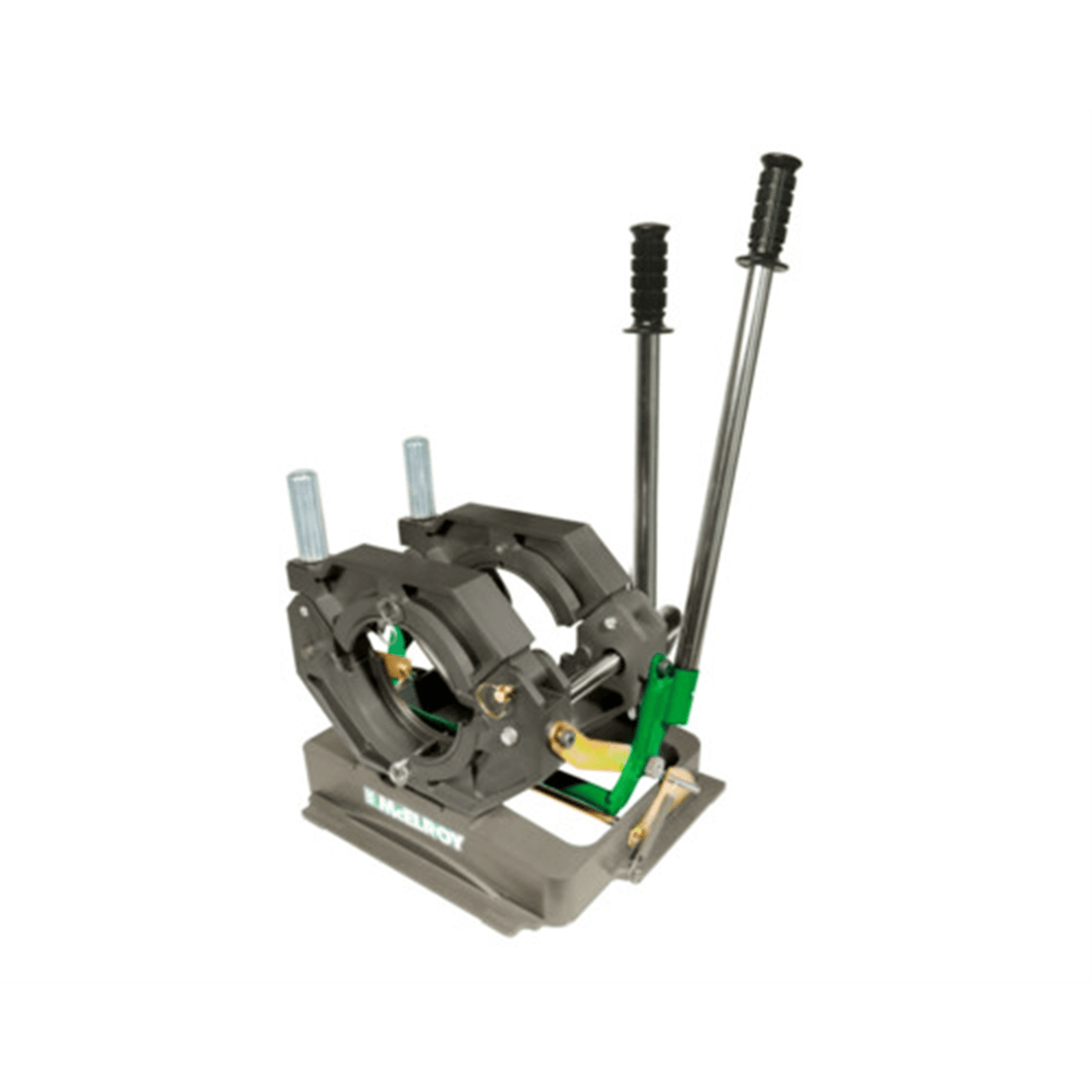

McElroy A708502 Pit Bull 26 DIPS Fusion Machine Package

Description

The McElroy Pit Bull 26 is a compact, lightweight, highly reliable and rugged fusion machine that fuses 2" IPS to 6" DIPS pipe. The Pit Bull 26 incorporates McElroy's patented Centerline Guidance System, a semi automatic locking cam system that maintains force during the cooling cycle, and the ability to fit on the Manual Fusion Machine Stand (106377). The 26 fusion unit has a greater mechanical advantage ratio than the Pit Bull 14, as well as an electric facer with balance point handle for fast facing pipe.

Features

• Hand-operated


• Compact and durable


• 17-to-1 mechanical advantage


• Patented Centerline Guidance System for equal distribution of force around the joint


• Semi-automatic locking mechanisms to maintain force furing the cooling cycle


• Hard-anodized clamp knobs to minimize force required to clamp and round pipe


• Serrated jaws and inserts keep pipe from slipping during fusion


• Narrow clamp design for precise pipe alignment


• Conventional facer design features ball-bearing construction and gear drive for long life


• Reversible jaws, clamp knobs, levers and facer allow operator to fuse from either side of the machine


• Thrust bearing equipped clamp knobs to minimize torque required to clamp and round the pipe


• Thermostatically-controlled heater to provide constant fusion temperature


• ISO-compliant industrial Teflon-coated heater plates

Includes

Fusion machine, heater, facer, insulated heater stand, facer stand, 6" IPS/DIPS Master insert set, and screw/driver kit
