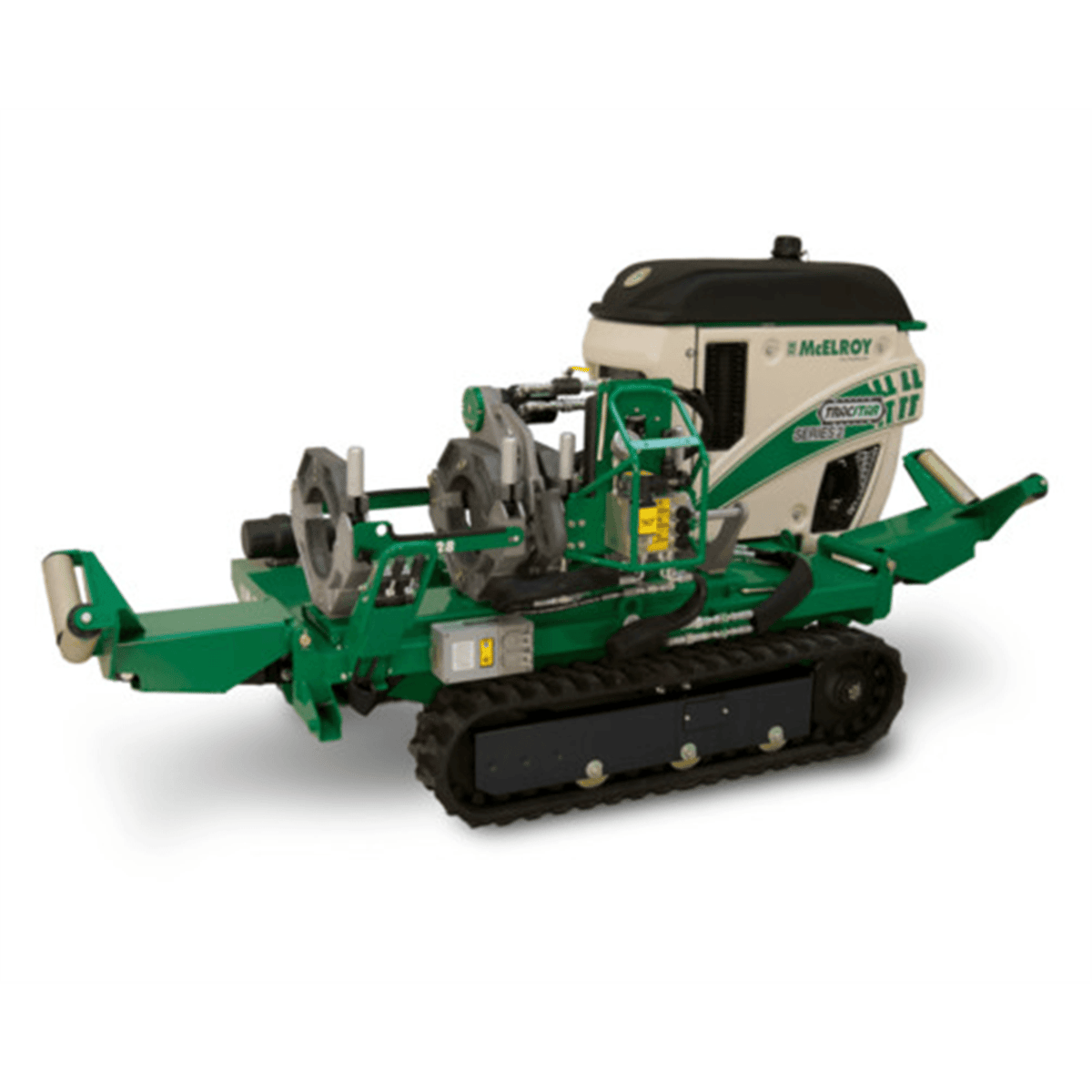

McElroy AT812101 TracStar® 28 Series 2 Butt Fusion Machine Package

Product #: 400216
Mfr. Part #: AT812101

Drop Ship - Lead Times May Vary

Ships via Motor Freight

Description

The TracStar® 28 Series 2 has been completely redesigned based on feedback that came directly from the field. The new machine now shares a common vehicle with the 250, 412, and 618 range of TracStars and is powered by a diesel engine - which is especially useful on jobsites where gasoline is not permitted. Designed to butt fuse pipe sizes 2" IPS to 8" DIPS (63mm to 225mm), the TracStar 28 Series 2 offers a self-contained, self-propelled, track-mounted vehicle that can handle grades up to 30 percent. A new cowling design aids in heat dissipation while providing easier access when machine maintenance is required. An updated electrical system increases the circuit protection and a standard battery disconnect is now incorporated for easy lockout. The TracStar 28 Series 2 fusion machines incorporate an interchangeable 4-jaw carriage that can be easily removed for in-ditch fusions. For tight installations, the outer fixed jaw and skid can be removed from the carriage converting it to a 3-jaw carriage for an even more compact fusion unit. The 28 can also be ordered as a combination unit (CU) that allows fusion of branch saddles with a maximum base diameter of 9.63" onto any size main.

Features

    Patented Centerline Guidance System for equal distribution of force around the joint

    Self-contained, self-propelled, all-terrain

    Powered by a diesel engine

    On-board generator for powering heater and other devices

    Thrust-bearing equipped clamp knobs to minimize force required to clamp and round pipe

    Battery disconnect for easy lockout

Includes

Fusion machine, 8" IPS inserts, facer, heater, insulated heater stand, and lifting assembly

Product Specifications

Weight2395.0000
