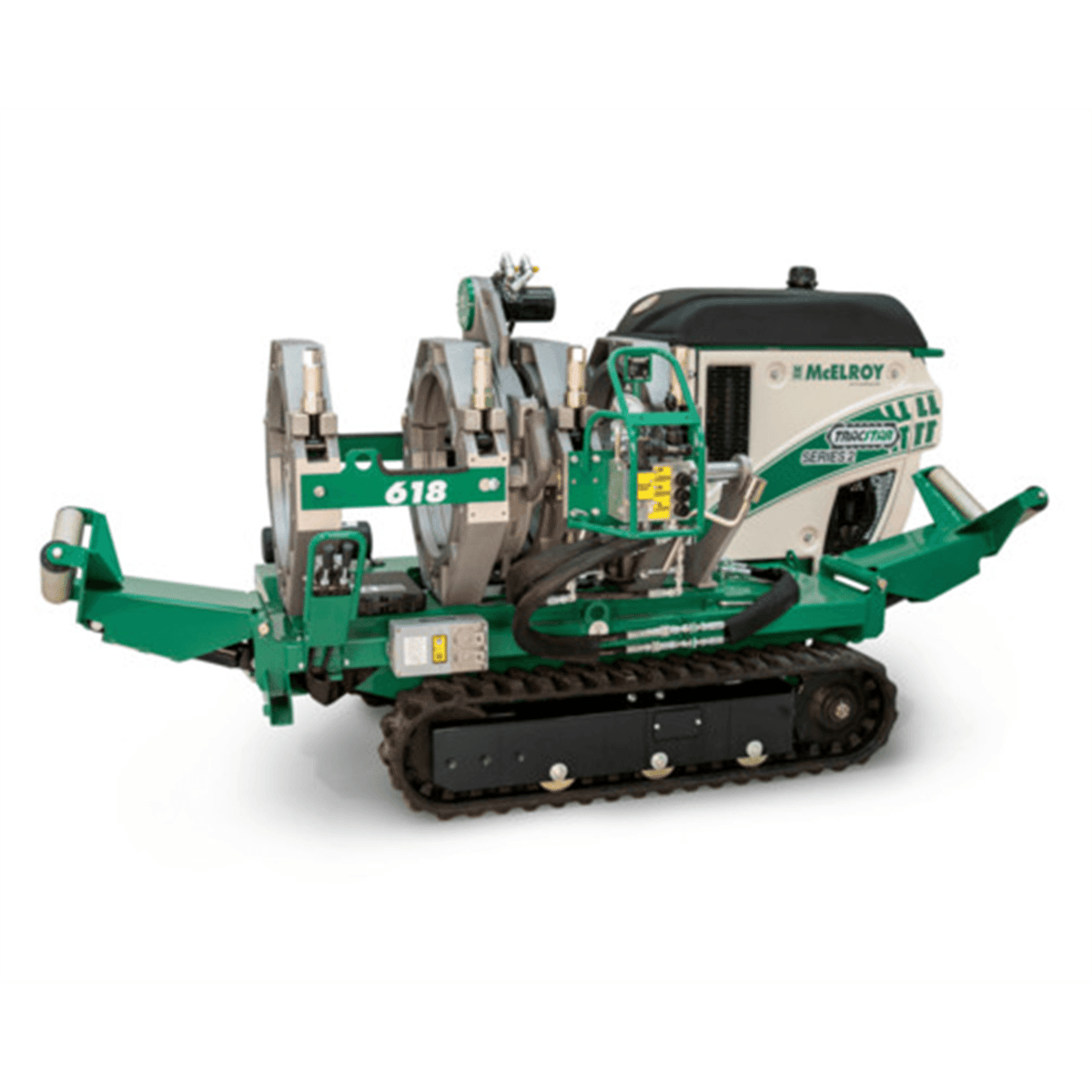

McElroy AT1830002 TracStar® 618 Series 2 Butt Fusion Machine Package

Description

The TracStar® 618 Series 2 has been completely redesigned based on feedback that came directly from the field. The new machine now shares a common vehicle with the 28, 250, and 412 range of TracStars and is powered by a diesel engine which is especially useful on jobsites where gasoline is not permitted. Designed to butt fuse pipe sizes from 6" IPS to 18" OD (180mm to 450mm), the TracStar 618 Series 2 offers a self-contained, self-propelled, track-mounted vehicle that can handle grades up to 30 percent. A new cowling design aids in heat dissipation while providing easier access when machine maintennance is required. An updated electrical system increases the circuit protection and a standard battery disconnect is now incorporated as an easy lockout. The TracStar® 618 Series 2 fusion machines incorporate an interchangeable 4-jaw carriage that can be easily removed for in-ditch fusions. For tight installations, the outer fixed jaw and skid can be removed from the carriage converting it to a 3-jaw carriage for an even more compact fusion unit.

Features

• Patented Centerline Guidance System for equal distribution of force around the joint


• Self-contained, self-propelled, all-terrain


• Powered by a diesel engine


• On-board generator for powering heater and other devices


• Thrust-bearing equipped clamp knobs to minimize force required to clamp and round pipe


• Battery disconnect for easy lockout

Includes

Fusion machine, facer, 12" DIPS - 18" OD heater, insulated heater stand, and lifting assembly

Product Specifications
