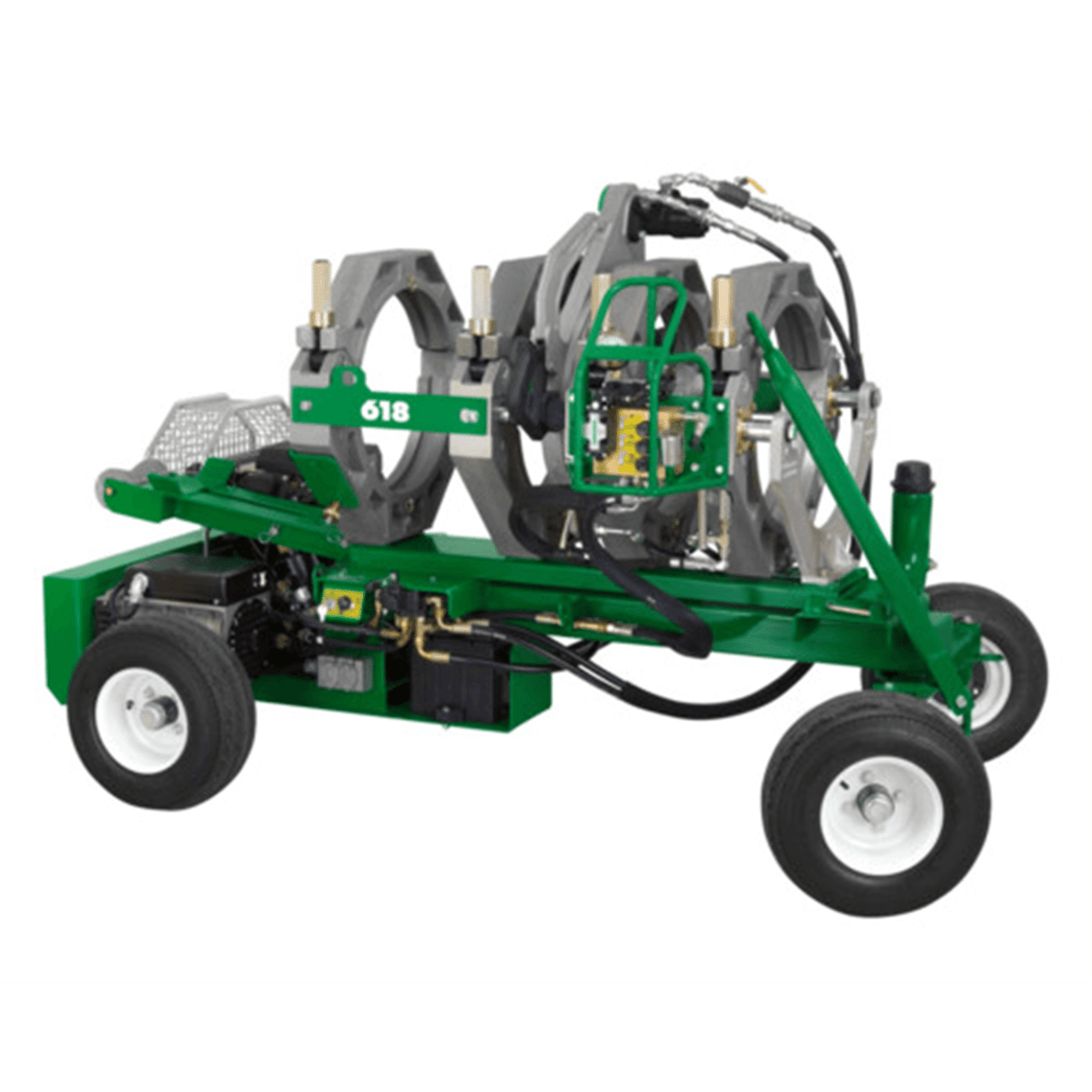

McElroy A1869101 Rolling 618 Butt Fusion Machine Package

Description

One of McElroy's most popular fusion machines, the Rolling 618 bridges the gap between small- and large- diameter fusion. Fusing from 6" IPS to 18" OD (160mm to 450mm), this machine is available in gas or electric models to power the heater, facer, and hydraulic pump. These options allow contractors to choose their preferred power source and meet the specific requirements of each jobsite. The gas models offer a self-contained unit with an on-board generator and 120V and 240V receptacles. The electric model requries a power source from either a separate generator or an indoor outlet and since they do not produce fumes, they are a good option when fusing indoors. A Hydraulic Clamping Kit is also available.

Features

• Patented Centerline Guidance System for equal distribution of force around the joint


• Industry standard semi-automatic hydraulic control system


• ISO-compliant industrial Teflon-coated plates


• On-board generator for powering heater and other devices


• Removable 3- or 4-jaw carriage for in-ditch use


• Dual hydraulic pipe lifts


• Serrated jaws and inserts keep pipe from slipping during fusion


• Hydraulic facer for facing the heaviest wall pipe with ease

Includes

Fusion machine, facer, 12" IPS - 18" OD heater, insulated heater stand, and lifting assembly

Product Specifications
