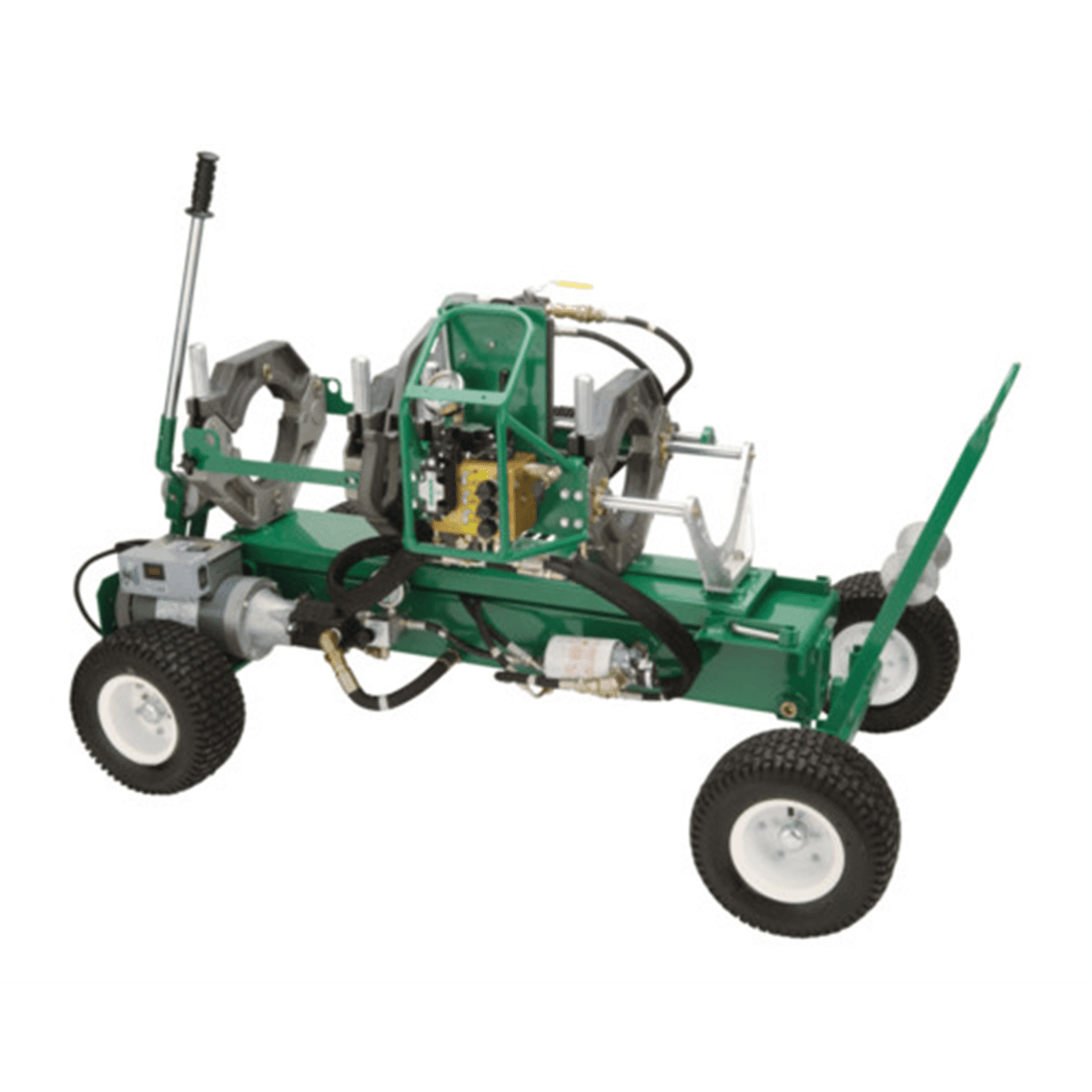

McElroy A860805 Rolling 28 High Force Fusion Machine Package

Product #: 106570
Mfr. Part #: A860805

Drop Ship - Lead Times May Vary

Ships via Motor Freight

Description

The McElroy Rolling machines staked their claim as the industry standard when they were first introduced in 1975. Their rugged quality construction opened the door to the most extensive line of fusion machines on the market with pipe sizes ranging from 2” IPS up to 65” OD. Wheeled for easy maneuvering and portability on the job, the Rolling machines can be towed to each fusion area where they remain stationary as sticks of pipe are fused and pulled through. The Rolling machines are versatile and will adapt to many jobsite applications. They incorporate an interchangeable 4-jaw carriage that is easily removable for in-ditch fusions. For tight installations, the outer fixed jaw and skid can be removed from the carriage converting it to an even more compact 3-jaw unit. The Rolling machines are compatible with the McElroy DataLogger® to verify that proper fusion procedures have been followed prior to installation. Joint records from the DataLogger can be stored and analyzed in the Vault™, a secure server on the internet. This allows quick and easy sorting, tagging sharing of joint records by machine, joint, operator, device or job. The Rolling 28, which fuses pipe from 2” IPS to 8” DIPS (63mm to 225mm), is also available as a Combination Unit (CU) for sidewall fusions. Low and high force cylinders are available with fusion pressures up to 1,200 PSI. It comes with a lightweight 1,750-watt heater designed with a 45-degree handle to prevent overheating and a powerful hydraulic facer for fast and efficient facing of pipe ends. Its robust cast aluminum jaws are hard anodized for durability and corrosion resistance. The jaws as well as the inserts are serrated to prevent pipe slippage, while a Centerline Guidance System delivers equal distribution of force around the pipe to produce an even, continuous bead formation and quality joint.

Features

  • Patented Centerline Guidance System for equal distribution of force around the joint

  • Industry standard semi-automatic hydraulic control system

  • Removable 3- or 4-jaw carriage for in-ditch use

  • Combination unit available for sidewall fusion

  • Hard-anodized aluminum wear surfaces for corrosion resistance

  • Serrated jaws and inserts keep pipe from slipping during fusion

  • Available in Combination Unit (CU) for sidewall fusion

  • Hydraulic facer for facing the heaviest wall pipe with ease

  • Thrust-bearing-equipped clamp knobs minimize force required to clamp and round pipe

  • Advanced Blade Design for smooth face and long life

  • Microprocessor-controlled heater

  • ISO-compliant industrial Teflon-coated heater plates

  • High-force cylinder machine available

  • Low-force cylinder machine available

  • DataLogger compatible

Includes

Fusion machine, 8" IPS Master Inserts, facer, heater and insulated heater stand

Product Specifications

Length (IN) 53.75
Height (IN) 31.5
Fits Pipe Size (IN) 2.375 - 9.05
Voltage (VAC) 120
Product Type Fusion Machine
Brand MCELROY
Weight (LB) 855
Width (IN) 35.75
