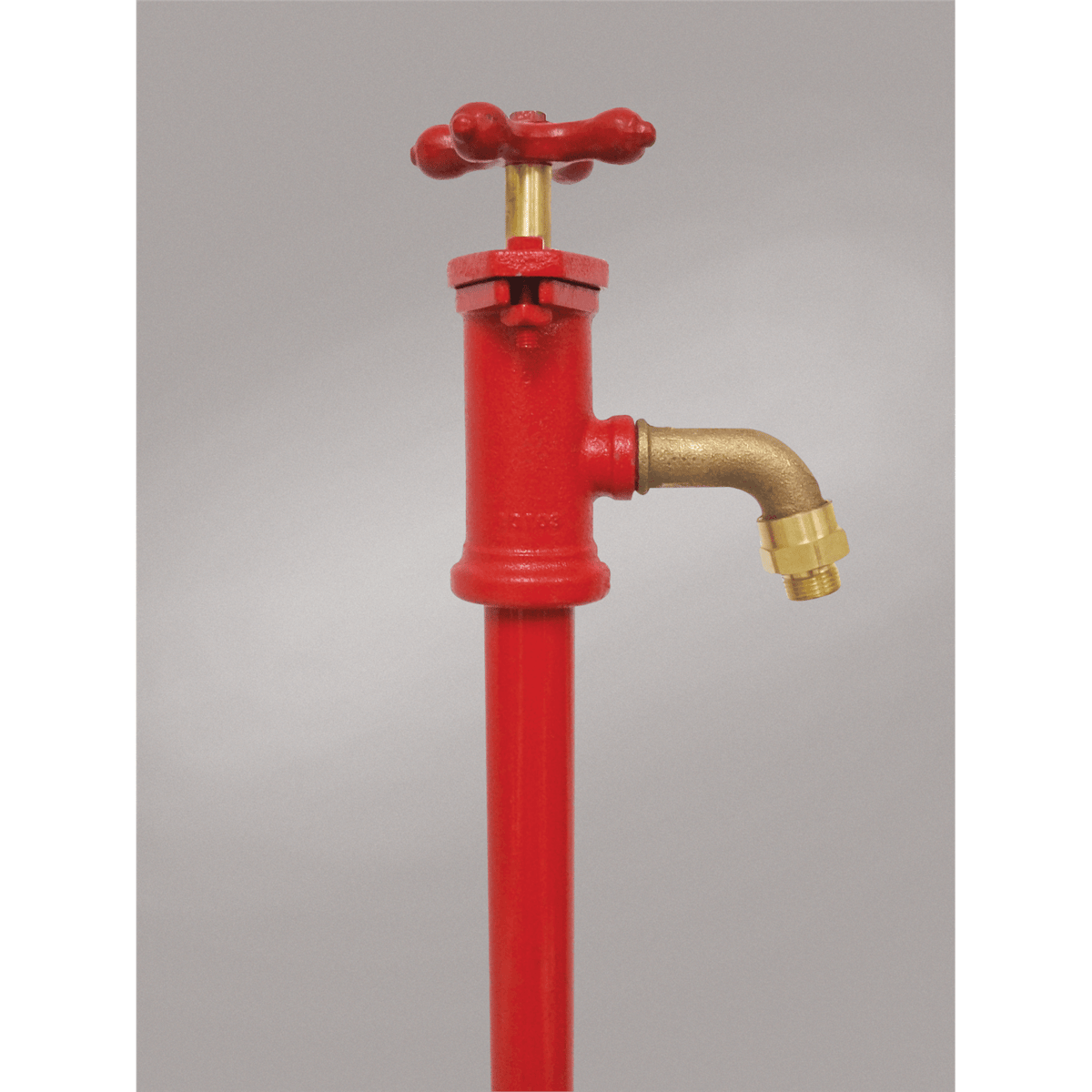

Kupferle Trulfo #TF100-B Yard Hydrant, 1" MNPT Outlet, Standard Depth of Bury 3', Vertical Inlet

By Kupferle Foundry Company
Kupferle Trulfo #TF100-B Yard Hydrant, 1" MNPT Outlet, Standard Depth of Bury 3', Vertical Inlet
$582.50 | EA
Product #: 105337
Mfr. Part #: Trulfo #TF100-B (1")

Drop Ship - Lead Times May Vary

Add to
Or:
Create a New List
Back

Description

The Truflo #TF100-B Yard Hydrant with 1" MNPT Outlet is an excellent choice for wash down and general use applications at water and wastewater treatment plants. The Truflo #TF100-B comes standard with a 1″ FIP vertical/straight inlet, 1″ MNPT outlet, 4-spoke handle, casing guard, and is self-draining/non-freezing. The Truflo #TF100-B is fully serviceable from above ground. Certified to NSF/ANSI 372.

Features

  • 1" MNPT outlet

  • Unique valve design allows for higher flow rates

  • All brass principle working parts

  • Fully serviceable from above ground

Product Specifications

Inlet Size (IN) 1
Outlet Size (IN) 1
Bury Depth (FT) 3
Barrel Size (IN) 1
Inlet Connection FEMALE IRON PIPE THREAD
Features ¾ or 1 Plant Washdown Hydrant. Unique valve design allows for higher flow rates. All brass principle working parts. Fully serviceable from above ground – no digging.
Outlet Connection Male National Pipe Thread
Barrel Material STEEL
