Kupferle MainGuard #78 Below Grade Blow-off

By Kupferle Foundry Company
$931.25 | EA
Product #: 105318
Mfr. Part #: MainGuard #78

This item is in stock

Back

Description

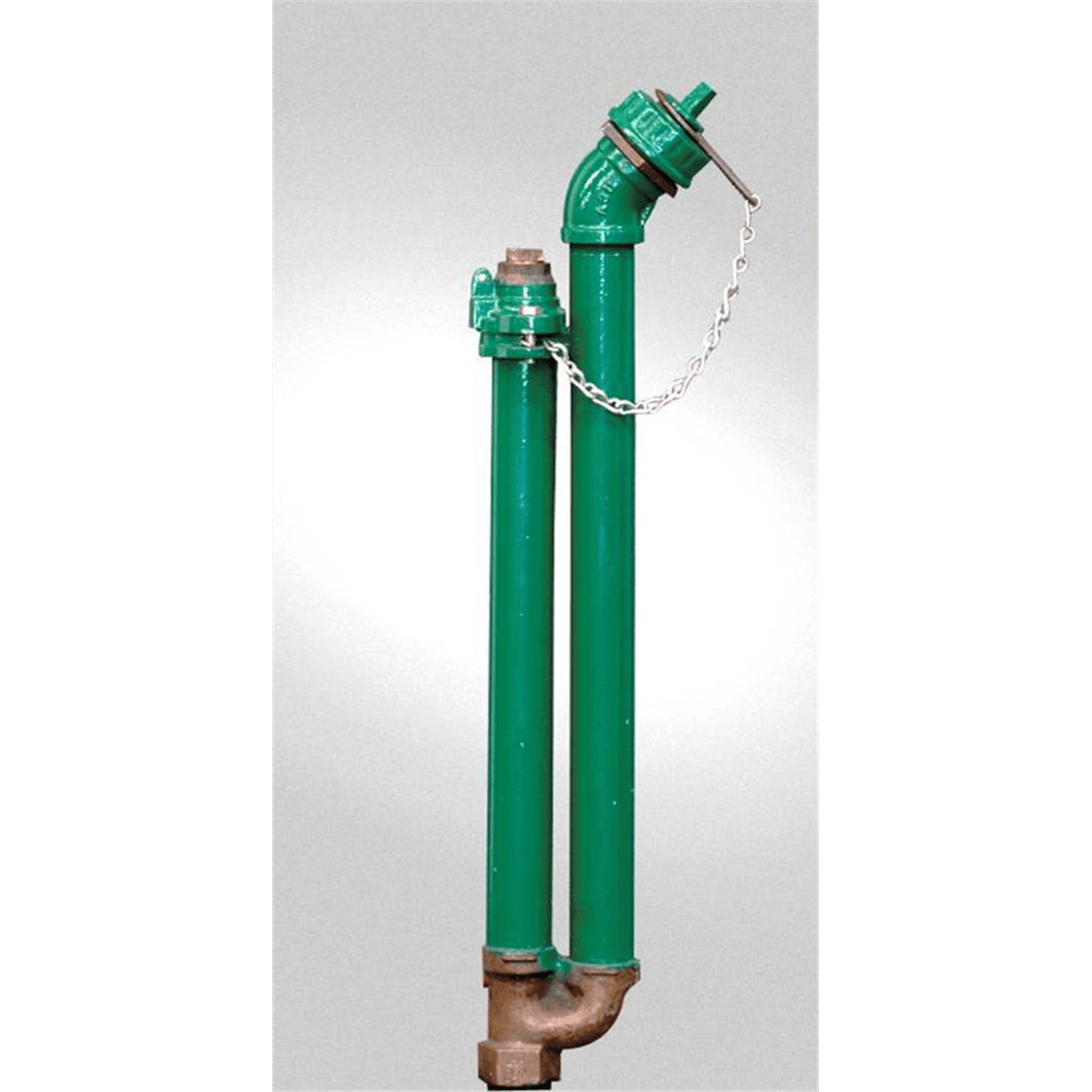

The MainGuard #78 Blow-Off installs underground in a standard meter box. Designed and engineered specifically for flushing, the #78 provides excellent flow rates for improving chlorine residual levels and flushing disinfection byproducts (DBPs) to keep water safe for consumers. Its unique valve design allows for a full clear-channel flow that is superior to other blow-offs for moving water and passing debris easily.

Features

  • Below-grade blow-off for dead end water mains

  • Installs below ground inside a standard meter box

  • Unique two-pipe design allows for easy passage of debris

  • Self-draining, non-freezing, and fully serviceable from above ground

Product Specifications

Inlet Connection FEMALE IRON PIPE THREAD
Features Below-grade blow-off for dead end water mains. Installs below ground inside a standard meter box. Unique two-pipe design allows for easy passage of debris. Self-draining, non-freezing, and fully serviceable from above ground.
Outlet Size (IN) 2-1/2
Inlet Size (IN) 2
Above or Below Ground BELOW GROUND
Outlet Connection MALE NATIONAL STANDARD THREAD
Certifications NSF/ANSI 372

Certifications

  • NSF/ANSI 372
