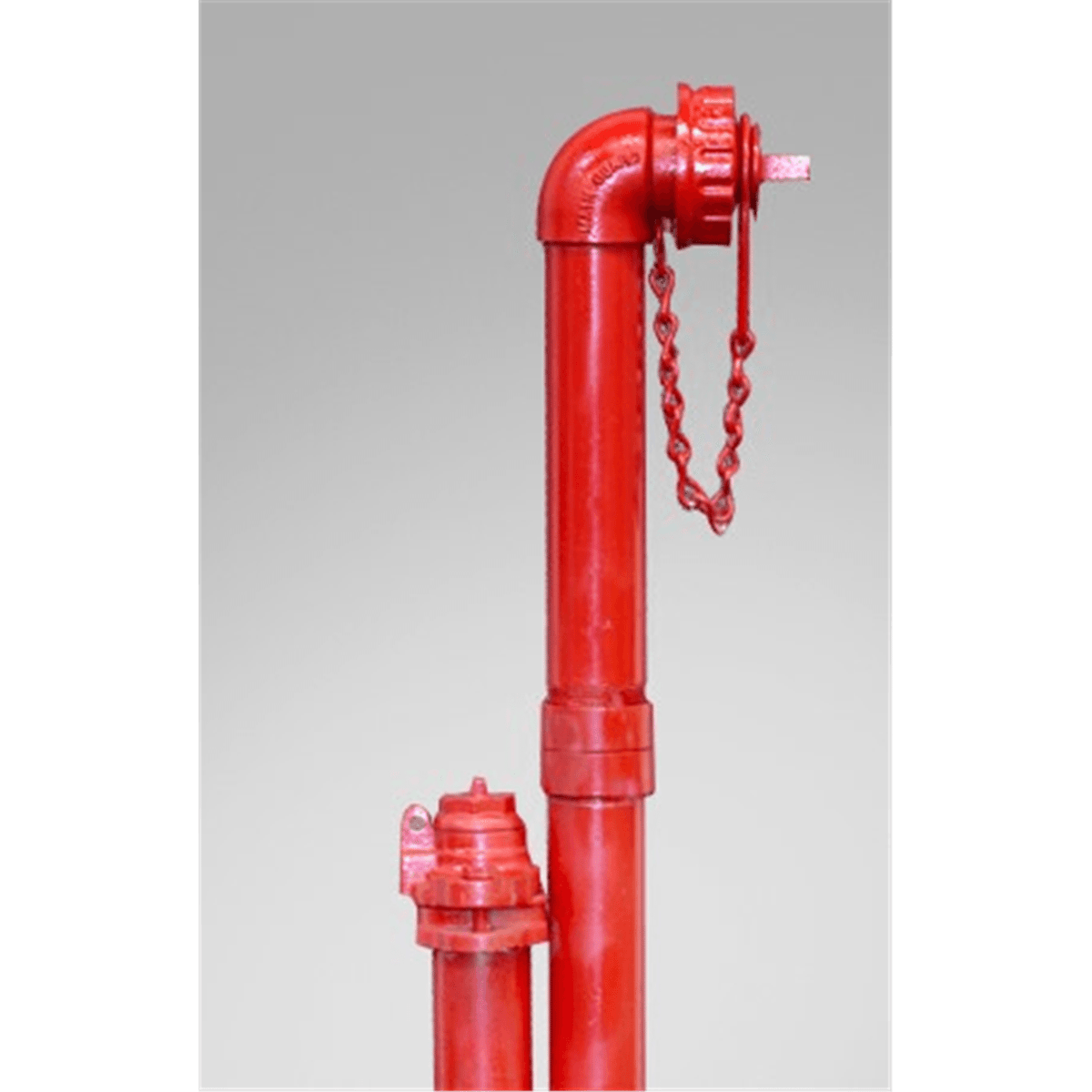

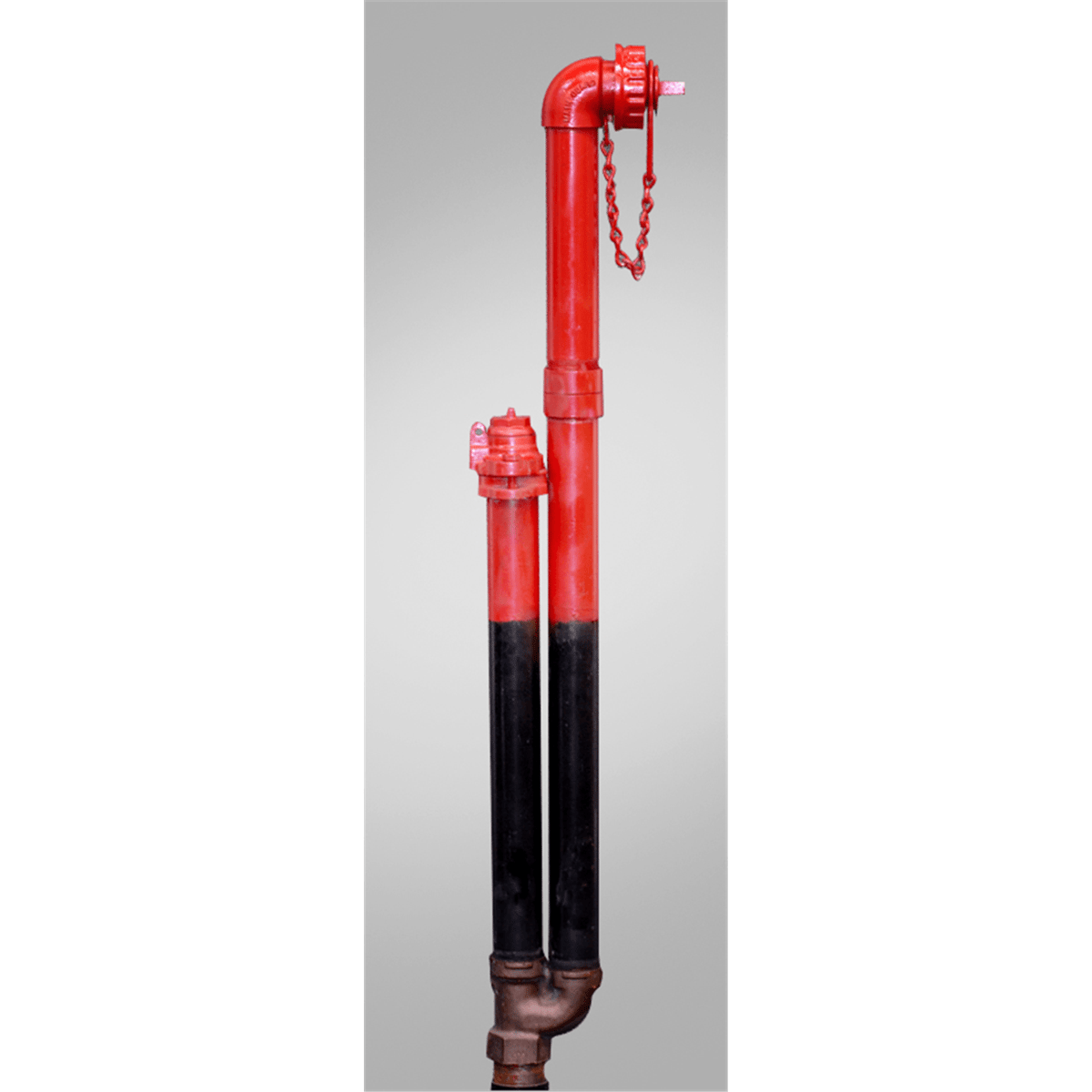

Kupferle MainGuard #77 Post Flushing Hydrant with Vertical Inlet, Standard 3' Depth of Bury

By Kupferle Foundry Company
$937.50 | EA
Product #: 105317
Mfr. Part #: MainGuard #77

This item is in stock

Back

Description

The MainGuard #77 Post Hydrant provides the best in performance and value. Designed and engineered specifically for flushing, the #77 provides excellent flow rates for improving chlorine residual levels and flushing disinfection byproducts (DBPs) to keep water safe for consumers. The unique valve design allows for a full clear-channel flow that is superior to other blow-offs for moving water and passing debris easily. The #77 plunger is also designed to allow for throttling the flow of water while at the same time covering the drain hole to avoid unnecessary erosion. The MainGuard #77 comes standard with all brass principle working parts, 2″ FIP vertical inlet, 2 ½” NST outlet, traffic break-away, and locking security cover.

Features

  • Above ground post flushing hydrant for dead end mains

  • Unique two-pipe design allows for easy passage of debris

  • Cost-effective alternative to unneeded fire hydrants on dead ends

  • Self-draining, non-freezing, and fully serviceable from above ground

Product Specifications

Features Above ground post flushing hydrant for dead end mains. Unique two-pipe design allows for easy passage of debris. Cost-effective alternative to unneeded fire hydrants on dead ends. Self-draining, non-freezing, and fully serviceable from above ground.
Outlet Size (IN) 2-1/2
Bury Depth (FT) 3
Inlet Size (IN) 2
Outlet Connection MALE NATIONAL STANDARD THREAD
Certifications NSF/ANSI 372
Inlet Connection FEMALE IRON PIPE THREAD

Certifications

  • NSF/ANSI 372
