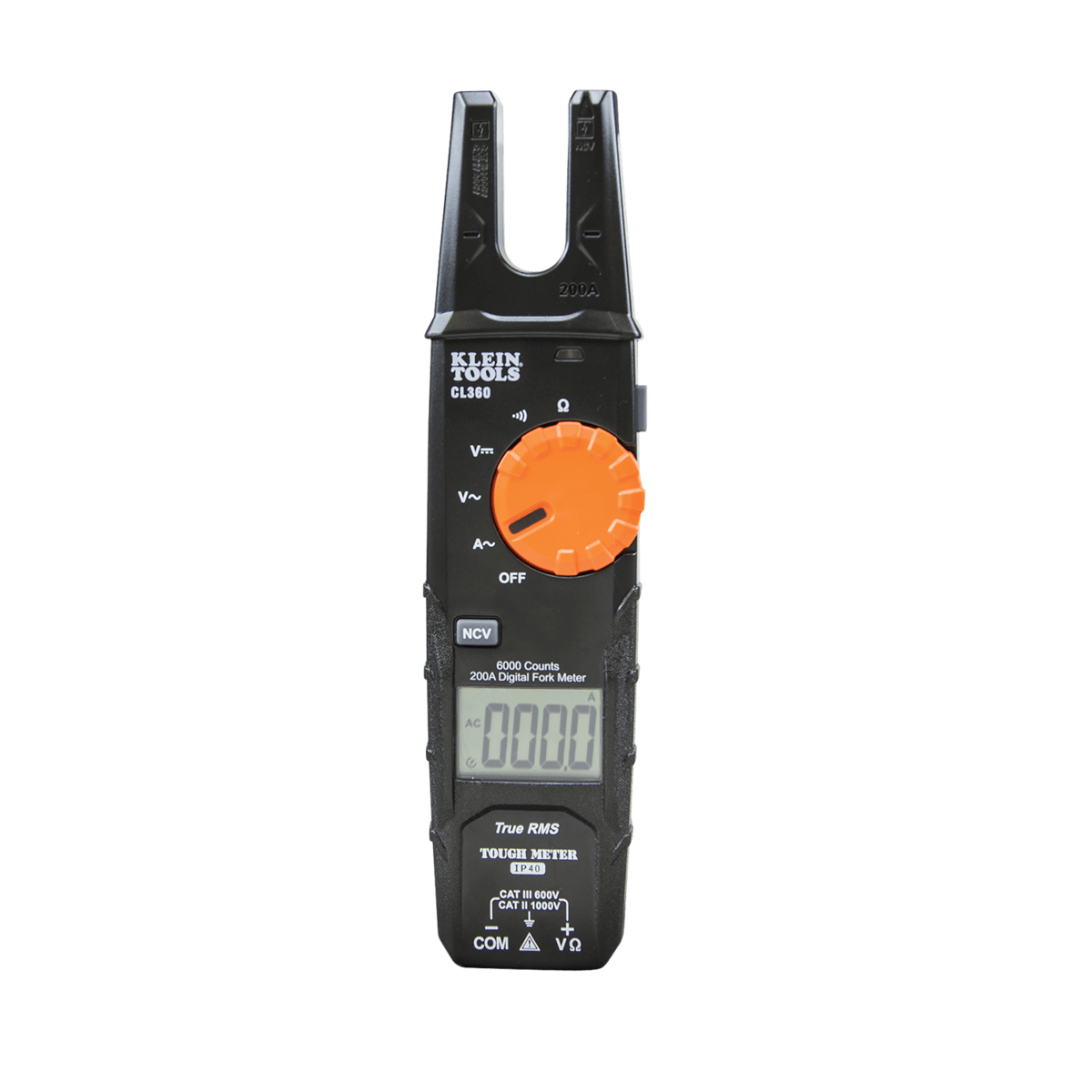

Klein Tools Electrical Tester, Open Jaw Fork Meter, AC Auto-Ranging, 200 Amp

By Klein Tools
$93.95 | EA
Product #: 110302
Mfr. Part #: CL360

This item is in stock

Back

Description

The CL360 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester. It includes a carrying case, test leads and 2 x AAA batteries.

Features

  • Open Fork Meter with automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy

  • Tester measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads

  • Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (1.5 cm)

  • Non-contact voltage tester integrated into the jaw

  • Includes a carrying case, test leads and 2 x AAA batteries

  • Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation

  • Backlit display for clear readings

  • Powers off automatically after 15 minutes of non-use to conserve battery life

Includes

Carrying Case, Instruction Manual, Straight Input Test Leads, and 2 x 1.5V AAA Batteries

Product Specifications

Resistance 60Omhs
Safety Rating CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insul.
Jaw Opening 0.58'' (1.5 cm) Opening
AC Voltage 600V
TRUE RMS Auto-Ranging
DC Voltage 1000V
Power 2 AAA Alkaline Batteries (Included)
Brand Klein Tools
Type Open Jaw Fork Current Meter
AC Current 200A
Backlit Display 6000 Count LCD
