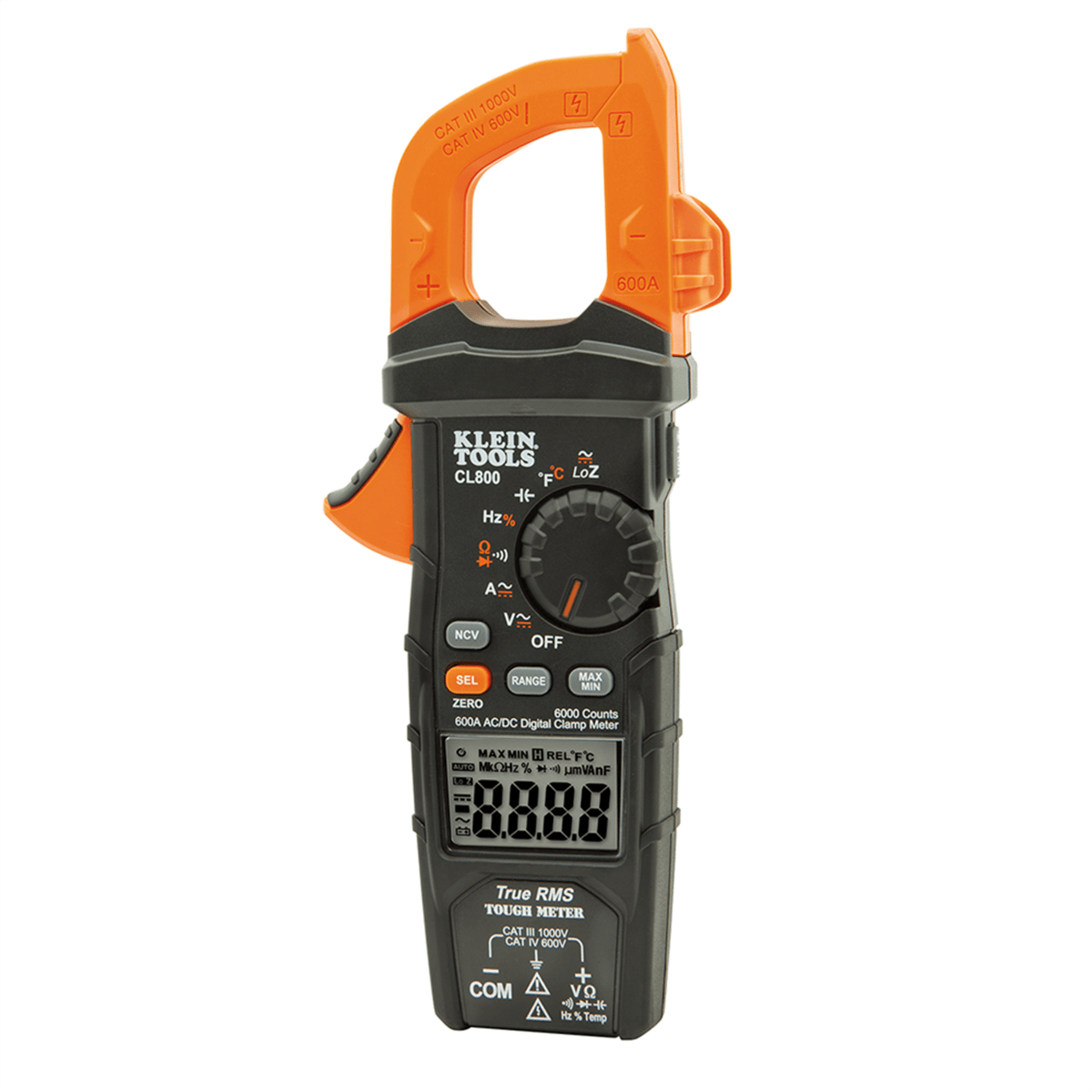

Klein Tools Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), Auto Off

By Klein Tools
$144.95 | EA
Product #: 110307
Mfr. Part #: CL800

This item is in stock

Back

Description

Klein Tools CL800 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Features

  • Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy

  • Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes

  • Thermocouple probe measures temperature

  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages

  • CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating

  • Built to withstand a 6.6-Foot (2m) drop

  • Low battery indicator and easily accessible battery compartment

  • Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)

Includes

Carrying Case, 41" (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries

Product Specifications

Resistance 60MOhms
Safety Rating CAT IV 600V, CAT III 1000V, Class 2, Double Insulation
Jaw Opening 1.38'' (3.5 cm)
AC Voltage 1000V
TRUE RMS Auto-Ranging
DC Voltage 1000V
Frequency 1Hz - 500kHz
Temperature -14° - 1000°F (-26° - 538°C)
Power 2 AAA Alkaline Batteries (Included)
Brand Klein Tools
Type Digital Clamp Meter
AC Current 600A
DC Current 600A
Backlit Display 6000 Count LCD
