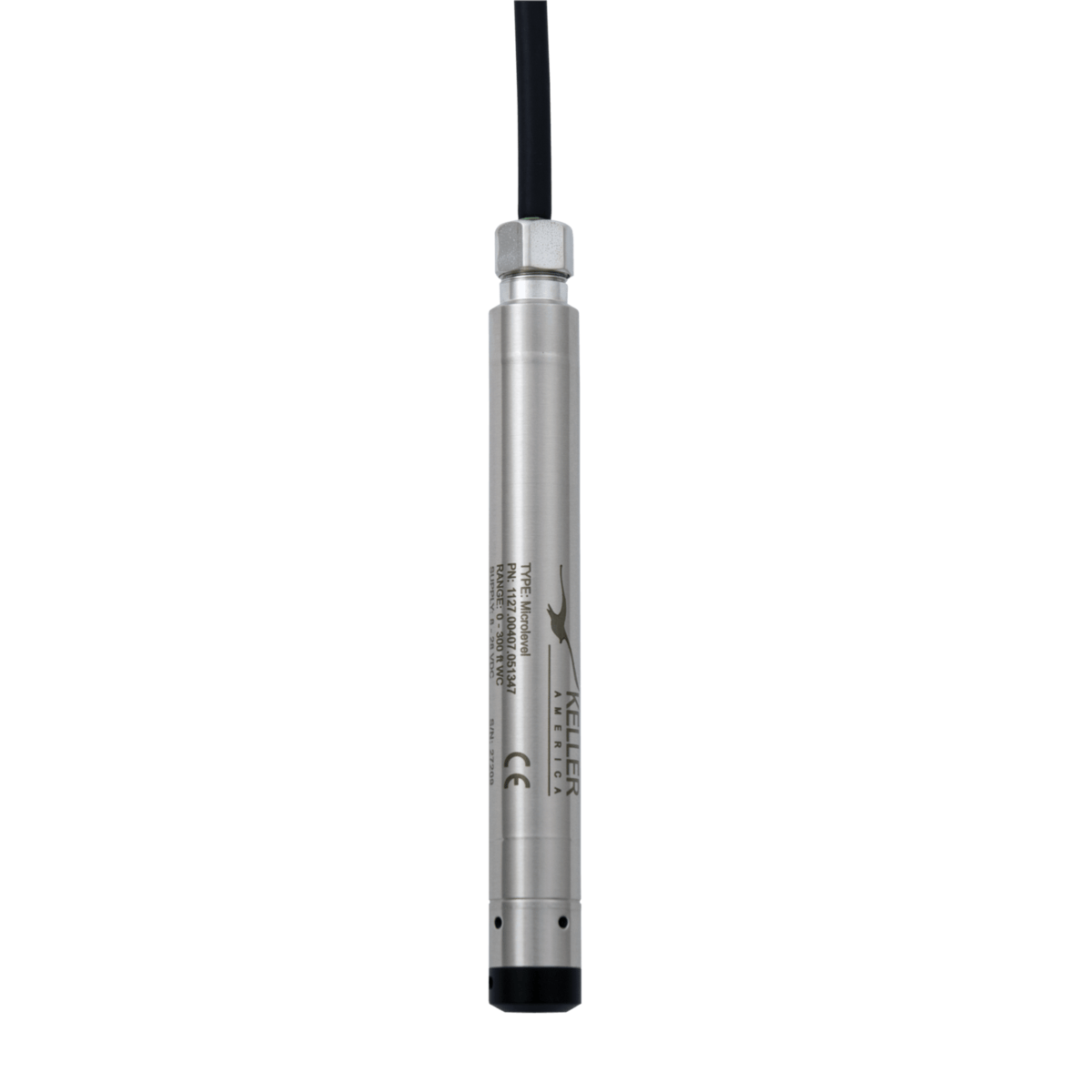

KELLER Microlevel Microbore Submersible Level Transmitter, Titanium, 0-8.67 PSI, 0-20ft H2O, 4-20mA+RS485, 40'PE cable, 0.25%

By KELLER America
$866.00 | EA
Product #: 104912
Mfr. Part #: 1127.01607.051309.17

This item is in stock

Accessories
Drying Tube Assembly
$28.50
Bellows Assembly
$45.00
Hubbell Cable Hanger
$30.50
Termination Enclosure - Drying Tube included
$268.50
Zinc Anode/Stabilizing Weight
$28.00
Termination Enclosure - Bellows included
$285.00
Termination Enclosure - Universal for Drying Tube or Bellows
$240.00
Bourns Signal Line Protector
$149.00
Back

Description

The Mircolevel provides you with high accuracy in a class-leading housing diameter of only 0.63". It incorporates Keller's proven microprocessor-controlled signal conditioning to provide outstanding accuracy. Use them for small bore applications such as ground water monitoring, well monitoring, environmental remediation, surface water monitoring, downhole and water tanks.

Features

  • The Microlevel by KELLER America is the smallest diameter in its class, specifically designed for applications that demand small size and high performance.

  • KELLER America's guaranteed lightning protection included at no additional cost

  • Ideal for areas prone to chronic damage due to transients caused by lightning

Product Specifications

Cable Length UoM FT
Accuracy 0.25 Percent
Lightning Protection Y
Power Required 11-32 VDC
Output 4-20mA+RS485 OUTPUT
Pressure Range (FT H2O) 0-20
Application WATER
Brand KELLER AMERICA
Wetted Material (Cable) POLYETHYLENE
Wetted Material (Body) TITANIUM
Pressure Range (PSI) 0-8.67
