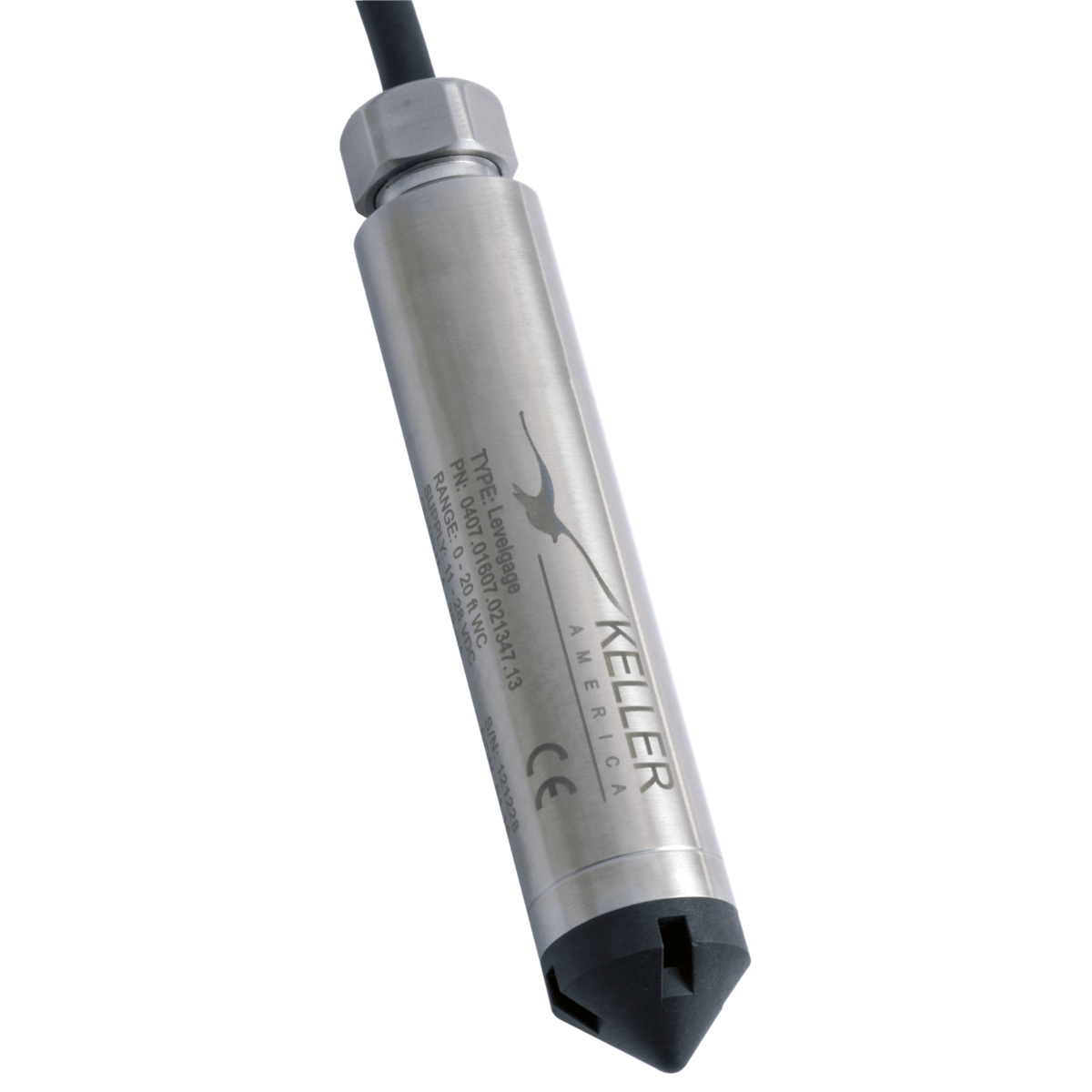

KELLER Levelgage General Purpose Submersible Level Transmitter, 0-20 PSI, 0-46.20 ft H2O, 60'PE cable, 4-20mA, 1%

By KELLER America
$484.00 | EA
Product #: 104907
Mfr. Part #: 0407.01602.021312.13

This item is in stock

Accessories
Drying Tube Assembly
$28.50
Bellows Assembly
$45.00
Hubbell Cable Hanger
$30.50
Termination Enclosure - Drying Tube included
$268.50
Zinc Anode/Stabilizing Weight
$28.00
Termination Enclosure - Bellows included
$285.00
Termination Enclosure - Universal for Drying Tube or Bellows
$240.00
Bourns Signal Line Protector
$149.00
Back

Description

The LevelGage submersible level transmitter is certified to NSF/ANSI 61 and 372 standards for use in drinking water applications in addition to the outstanding performance it provides in a wide array of applications, from water storage and distribution to wastewater.

Features

  • General purpose submersible transmitter provides standard features that far exceed those of comparably priced instruments

  • KELLER America's guaranteed lightning protection included at no additional cost

  • Ideal for areas prone to chronic damage due to transients caused by lightning

Product Specifications

Cable Length UoM FT
Accuracy 1 Percent
Lightning Protection Y
Power Required 11-32 VDC
Output 4-20mA+RS485 OUTPUT
Pressure Range (FT H2O) 0-46.20
Application WATER
Brand KELLER AMERICA
Wetted Material (Cable) POLYETHYLENE
Wetted Material (Body) 316 STAINLESS STEEL
Pressure Range (PSI) 0-20
