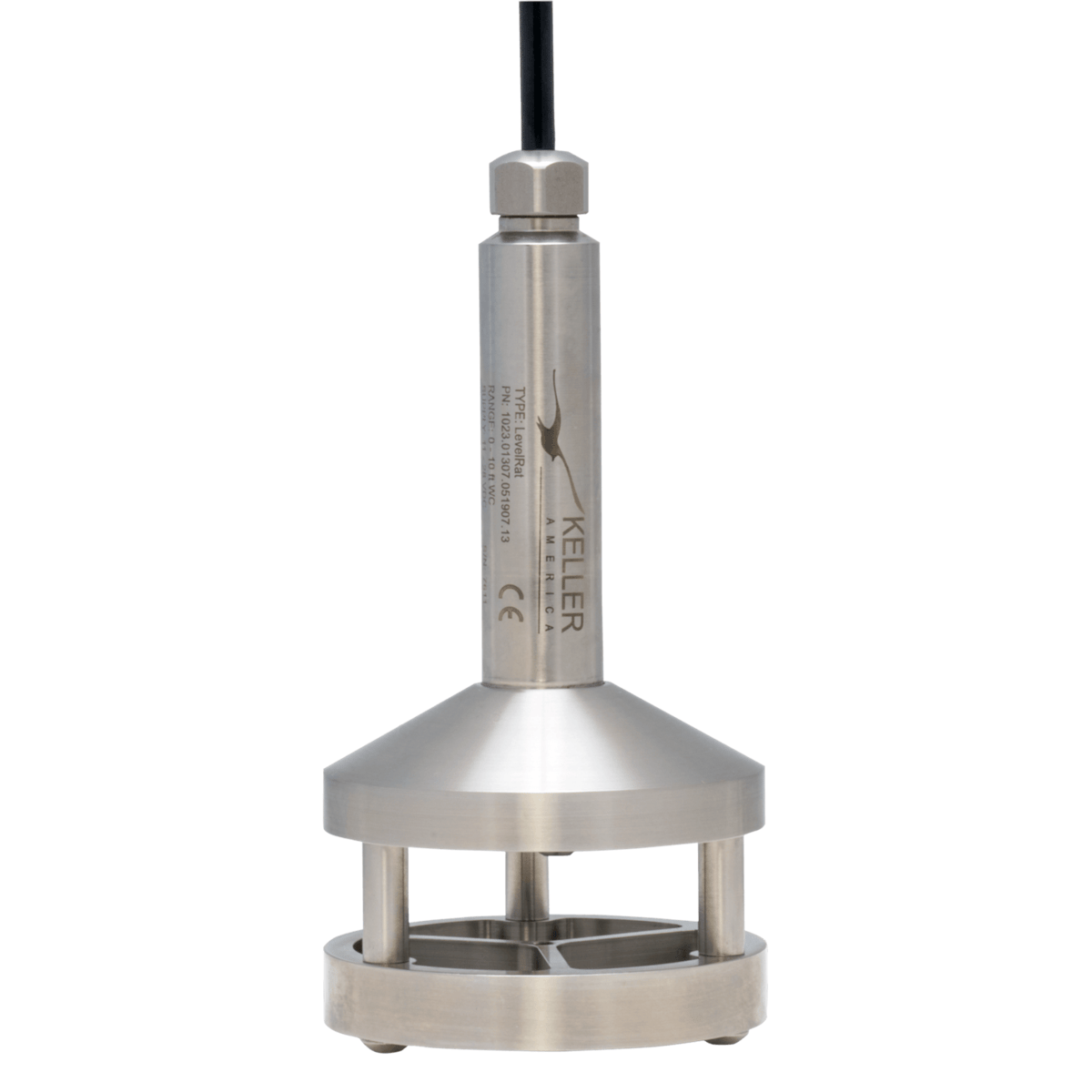

KELLER LevelRat Lift Station Submersible Level Transmitter, 0-10 PSI, 0-23.10 ft H2O, 30' PE cable, 4-20mA+ RS485 , 1%, 1/2 in. NPT conduit fitting

By KELLER America
$859.50 | EA
Product #: 104897
Mfr. Part #: 1071.01302.051907.13

This item is in stock

Accessories
Drying Tube Assembly
$28.50
Bellows Assembly
$45.00
Hubbell Cable Hanger
$30.50
Termination Enclosure - Drying Tube included
$268.50
Zinc Anode/Stabilizing Weight
$28.00
Termination Enclosure - Bellows included
$285.00
Termination Enclosure - Universal for Drying Tube or Bellows
$240.00
Bourns Signal Line Protector
$149.00
Back

Description

Specifically designed for extended service in sewage lift station environments, the LevelRat by KELLER America features a wide sensing diaphragm yet small overall size. The LevelRat incorporates a monolithic diaphragm which combines the non-stick quality of Teflon with superior toughness and abrasion resistance.

Features

  • Perfectly suited for pump control applications

  • KELLER America's guaranteed lightning protection included at no additional cost

  • Ideal for areas prone to chronic damage due to transients caused by lightning

  • Protective spacer provides additional protection for sensing element in harsh conditions

  • Unit includes 1/2" NPT conduit fitting

Product Specifications

Cable Length UoM FT
Accuracy 1 Percent
Lightning Protection Y
Power Required 11-32 VDC
Output 4-20mA+RS485 OUTPUT
Pressure Range (FT H2O) 0-23.10
Application WASTEWATER
Brand KELLER AMERICA
Wetted Material (Cable) POLYETHYLENE
Wetted Material (Body) 316 STAINLESS STEEL
Pressure Range (PSI) 0-10
