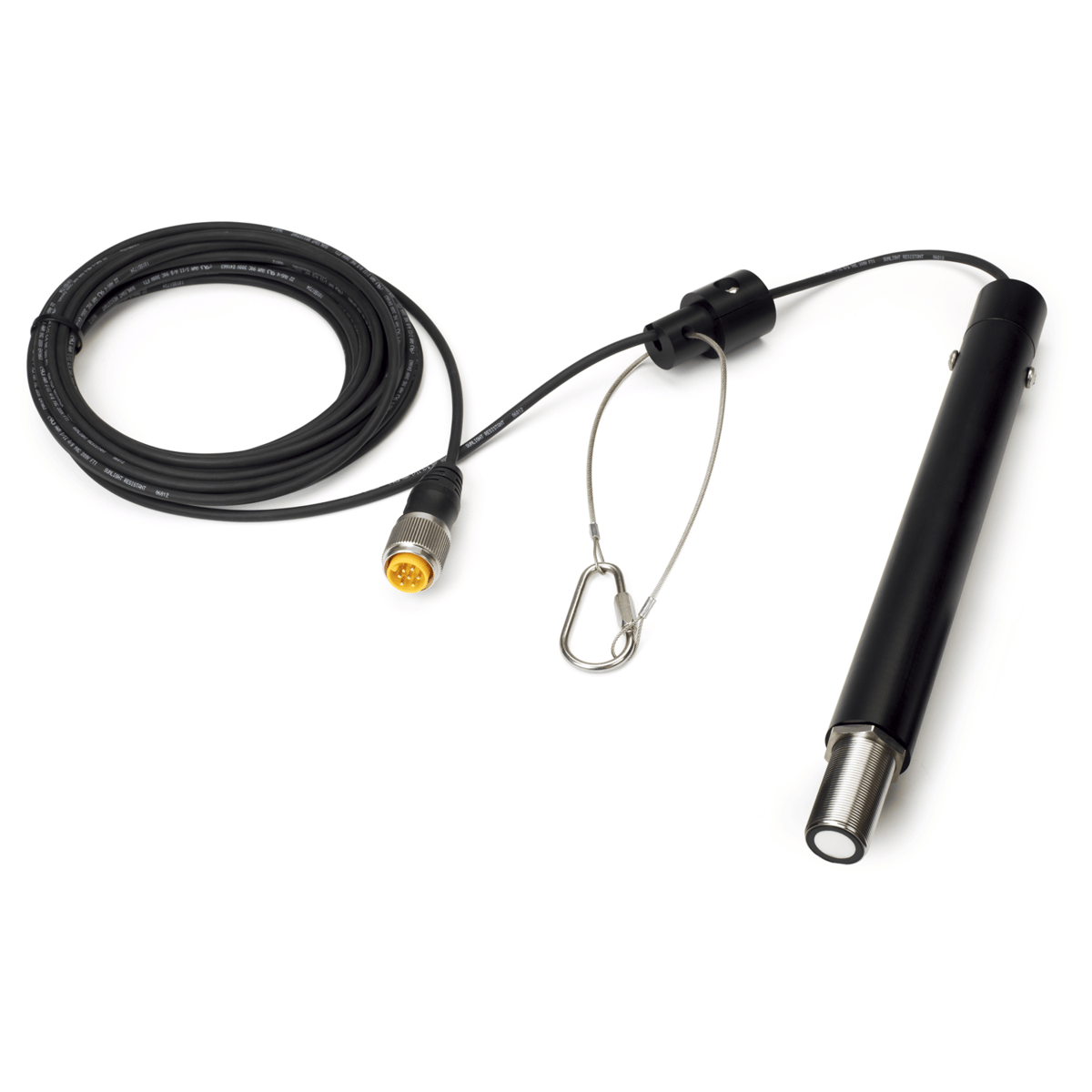

The US9001B resourcefully takes the Down-Looking Ultrasonic Sensor and adds cable-straightening ballast to create a highly reliable SSO and CSO alarming solution when coupled with a wireless Hach FL900 Series Flow Logger. And with highly accessible top-side mounting options that don’t require confined space entry, installation and maintenance is quick and simple, making this an extremely economical approach. So now you can capture data from more sites in your network without crushing your budget. Simply use the proven accuracy of the FLO-DAR® AV Sensor to monitor your critical primary sites, and then employ this more economical alarming option at secondary locations to smartly expand your system awareness and still live within your financial plan. Plus, you can also capture additional flow data using Manning’s equation.
- For use with FL900 Logger
Cable Length UoM | MTR |
Enclosure Construction | 316 Stainless Steel |
Enclosure Rating | IP68 / NEMA 6P |
Accuracy | 0.2 mm/ 25.4 mm |
Power Requirements | 12 VDC, 0.0416 A, 0.5 W |
Frequency | 120 kHz |
Cable Diameter | 6.10 mm |
Cable Jacket Material | Polyurethane |
Resolution | 2.54 mm |
Weight | 1179.3 g (2.6 lb) |
Brand | Hach |
Compatible Instruments | FL900 |
