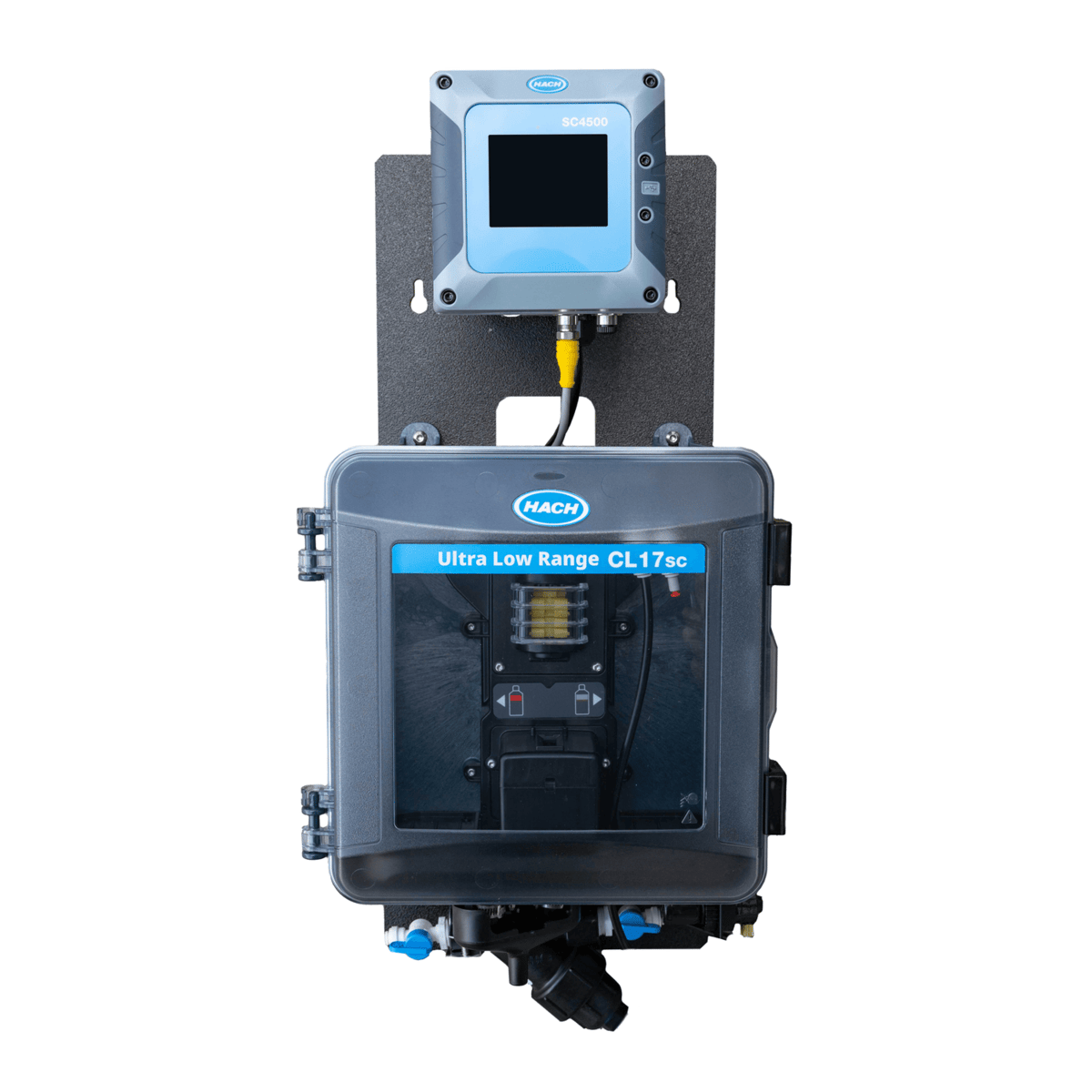

Hach Single Parameter Monitoring Panel for ULR Chlorine with SC4500 and ULR CL17sc, SPMP-ULRCL
Description
The Hach® Single Parameter Monitoring Panel for low range chlorine offers a comprehensive solution for accurate chlorine monitoring and efficient process control. Pre-mounted for effortless installation, this system is engineered to simplify dechlorination, enhance water quality, and safeguard your operations with ease and reliability. With Total Chlorine level detection as low as 0.008 mg/L, efficiently monitor dechlorination agents, assess granular activated carbon (GAC) performance, and prevent chlorine breakthroughs that could disrupt your process.
Features
- Monitor ultra low range, total chlorine from 0.008 to 5 mg/L with ULR CL17sc and SC4500 controller
- Expertly designed, preassembled panels ease purchasing and startup
- Up and running in minutes - wall or rack mount using (4) bolts, a single 1/4" inlet, a single 1/2" drain and one 115V power cord
- Simplify monitoring and maintenance with streamlined layout
Includes
Ultra Low Range CL17sc Colorimetric Chlorine Analyzer with Pressure Regulator Installation Kit (9790300), SC4500 Controller, Claros-enabled, 5x mA Output, 2 digital Sensors, 100-240 VAC, US plug (LXV525.99EA1551). Order reagents separately.
Product Specifications
Wavelength | 510 nm |
Enclosure Rating | IP66 / NEMA 4X |
Max Operating Temperature | 5 - 40 °C (41 - 104 °F) |
Accuracy | ± 5% or ± 0.01 mg/L (whichever is greater) from 0 - 4 mg/L; ± 10% from 4 - 5 mg/L |
Light source | LED, measurement at 510 nm, 1 cm light pathlength |
Max Operating Humidity | 0 - 90% relative humidity, non-condensing |
Instrument | ULR CL17sc & SC4500 |
Weight (LB) | 20.3000 |
Sample Requirements | Y-strainer filtration with 40-mesh screen or higher; instrument flow rate of 60 - 200 mL/min |
Power Requirements | 100-240 VAC ±10%, 50/60 Hz; 1 A |
Method Type | DPD |
Parameters | ULR Chlorine |
Display | 3.5-inch TFT color display with capacitive touchpad (SC4500) |
Range 1 | 0.008 - 5 mg/L Cl₂ |
Air Purge | Optional with 3/8-inch quick-connect fitting and tubing; 0.003 m3/min at 1.38 bar (20 psig) maximum |
