Hach Single Parameter Monitoring Panel for Turbidity with SC4500 and TU5400sc, SPMP-TU5400

By Hach
$14,935.00 | EA
Product #: 707836
Mfr. Part #: SPMP-TU5400

Out of Stock - Ships in 30 Days

Back

Description

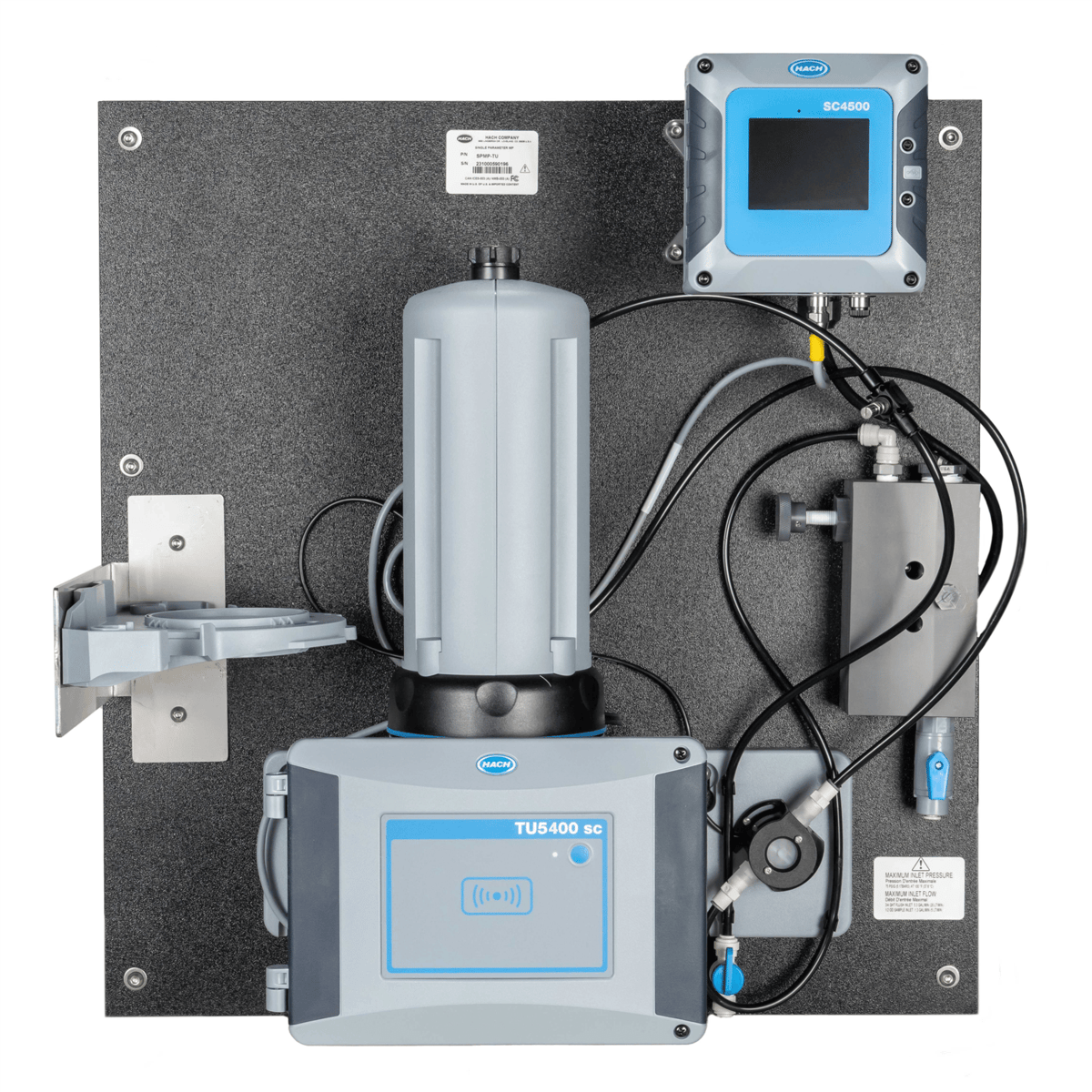

The Hach® single parameter turbidity panel offers the TU5400sc Ultra-High precision Low Range Laser Turbidimeter and SC4500 controller in the convenience of one panel. These panel configurations are pre-engineered, ready to install, simple solutions that are designed to work together.

Features

  • Monitor ultra-high precision low turbidity with automatic cleaning module and SC4500 controller

  • Expertly designed, preassembled panels ease purchasing and startup

  • Up and running in minutes - wall or rack mount using (4) bolts, a single 1/4" inlet, a single 1/4" drain and one 115V power cord

  • Simplify monitoring and maintenance with streamlined layout

Includes

TU5400sc Turbidimeter (LXV445.53.B3212), SC4500 Controller, Smart Monitoring-enabled, 5x mA Output, 2 digital Sensors, 100-240 VAC, US plug (LXV525.99EA1551), Flow Sensor for TU5300sc and TU5400sc Laser Turbidimeter (LQV160.99.00002)

Product Specifications

Display 3.5-inch TFT color display with capacitive touchpad (SC4500)
Range 1 0 - 700 NTU/FNU/TE/F/FTU
Calibration For Formazin and Stablcal: 20 NTU from 0 to 40 NTU; at 20 FNU and 600 NTU for full range
Sensor type Digital output
Custom Calibration Standards Custom calibration for up to 6-point calibrations
Light source Class 2 laser product, with embedded 650 nm (EPA 0.43 mW)
Instrument TU5400sc & SC4500
Weight 35.7500
Stray Light <10 mNTU
Sample Requirements Flow Rate 100 - 1000 mL/min, optimal flow rate: 200 - 500 mL/min, 6 bar (87 psi) maximum
Power Requirements 100-240 VAC ±10%, 50/60 Hz; 1 A
Temperature range 2 to 60 °C (35 to 140 °F)
Parameters Turbidity
Lamp Type Class 2 laser product, with embedded 650 nm (EPA 0.43 mW)
