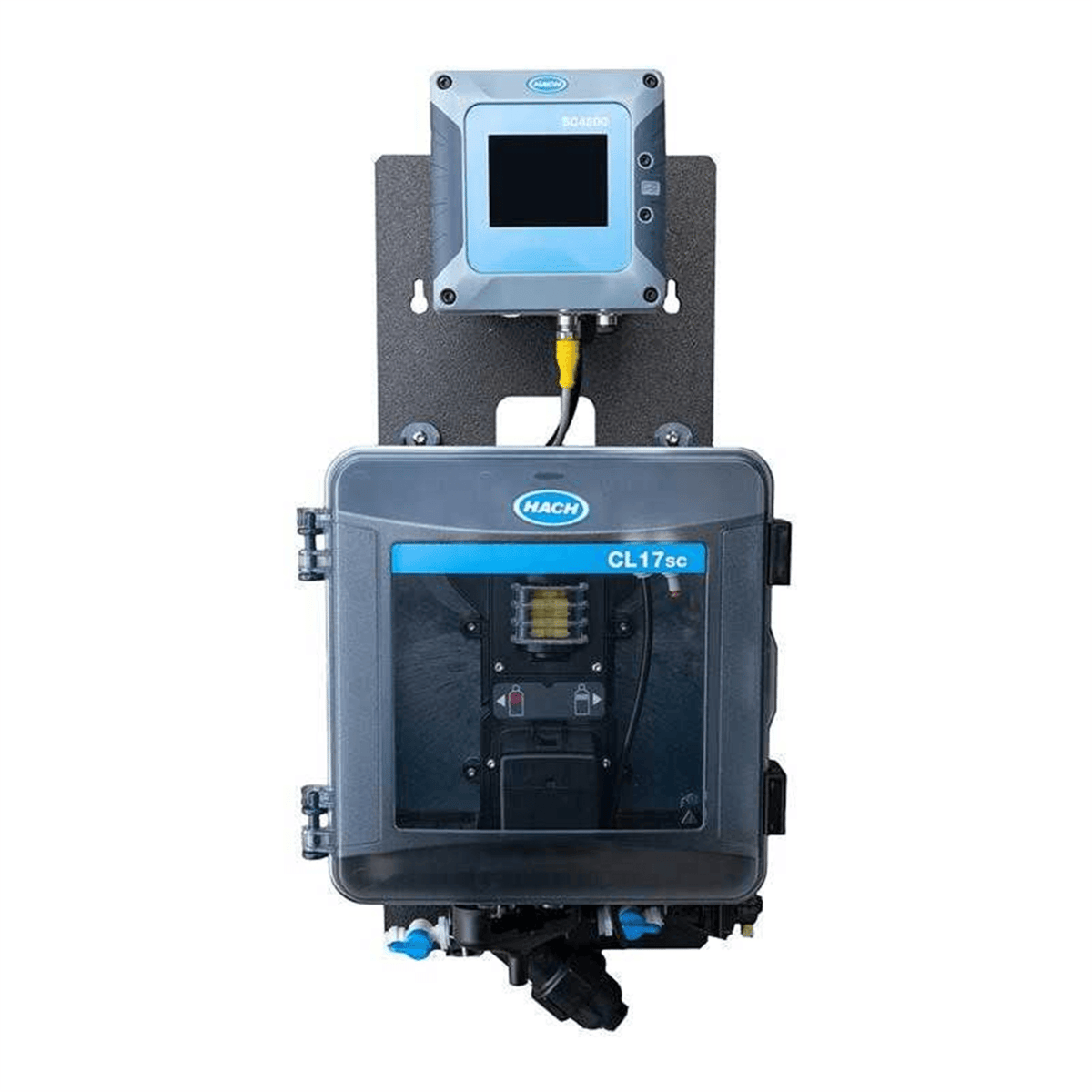

Hach Single Parameter Monitoring Panel for Chlorine with SC4500 and CL17sc, SPMP-CL
Free Ground Shipping On All Orders Over $1500!*
Description
The Hach® single parameter chlorine panel offers the CL17sc Chlorine analyzer and SC4500 controller in the convenience of one panel. These panel configurations are pre-engineered, ready to install, simple solutions that are designed to work together.
Features
- Monitor free or total chlorine residual from 0-10 mg/L
- Expertly designed, preassembled panels ease purchasing and startup
- Up and running in minutes - wall or rack mount using (4) bolts, a single 1/4" inlet, a single 1/2" drain and one 115V power cord
- Simplify monitoring and maintenance with streamlined layout
- Panel mounting holes match older generation CL17 analyzer footprint for easy upgrading
Includes
CL17sc Chlorine Analyzer with Pressure Regulator Installation Kit (8572400), SC4500 Controller, Smart Monitoring-enabled, 5x mA Output, 2 digital Sensors, 100-240 VAC, US plug (LXV525.99EA1551). Order free or total chlorine reagents separately.
Product Specifications
| Air Purge | Optional with 3/8-inch quick-connect fitting and tubing; 0.003 m3/min at 1.38 bar (20 psig) maximum |
| Wavelength | 510 nm |
| Interferences | Other oxidizing agents such as bromide, chlorine dioxide, permanganate, and ozone |
| Enclosure Rating | IP66 / NEMA 4X |
| Max Operating Temperature | 5 - 40 °C (41 - 104 °F) |
| Accuracy | ± 5% or ± 0.04 mg/L (whichever is greater) from 0 - 5 mg/L Cl₂; ± 10% from 5 - 10 mg/L Cl₂ |
| Instrument | CL17sc & SC4500 |
| Weight (LB) | 20.0000 |
| Sample Requirements | Y-strainer filtration with 40-mesh screen or higher; instrument flow 60 - 200 mL/min; 4.5-75 psi |
| Measurement Method | DPD |
| Power Requirements | 100-240 VAC ±10%, 50/60 Hz; 1 A |
| Temperature range | 5 - 40 °C (41 - 104 °F) |
| Parameters | Chlorine |
| Lamp Type | LED |
| Display | 3.5-inch TFT color display with capacitive touchpad (SC4500) |
| Range 1 | 0.03 - 10 mg/L Cl₂ |
