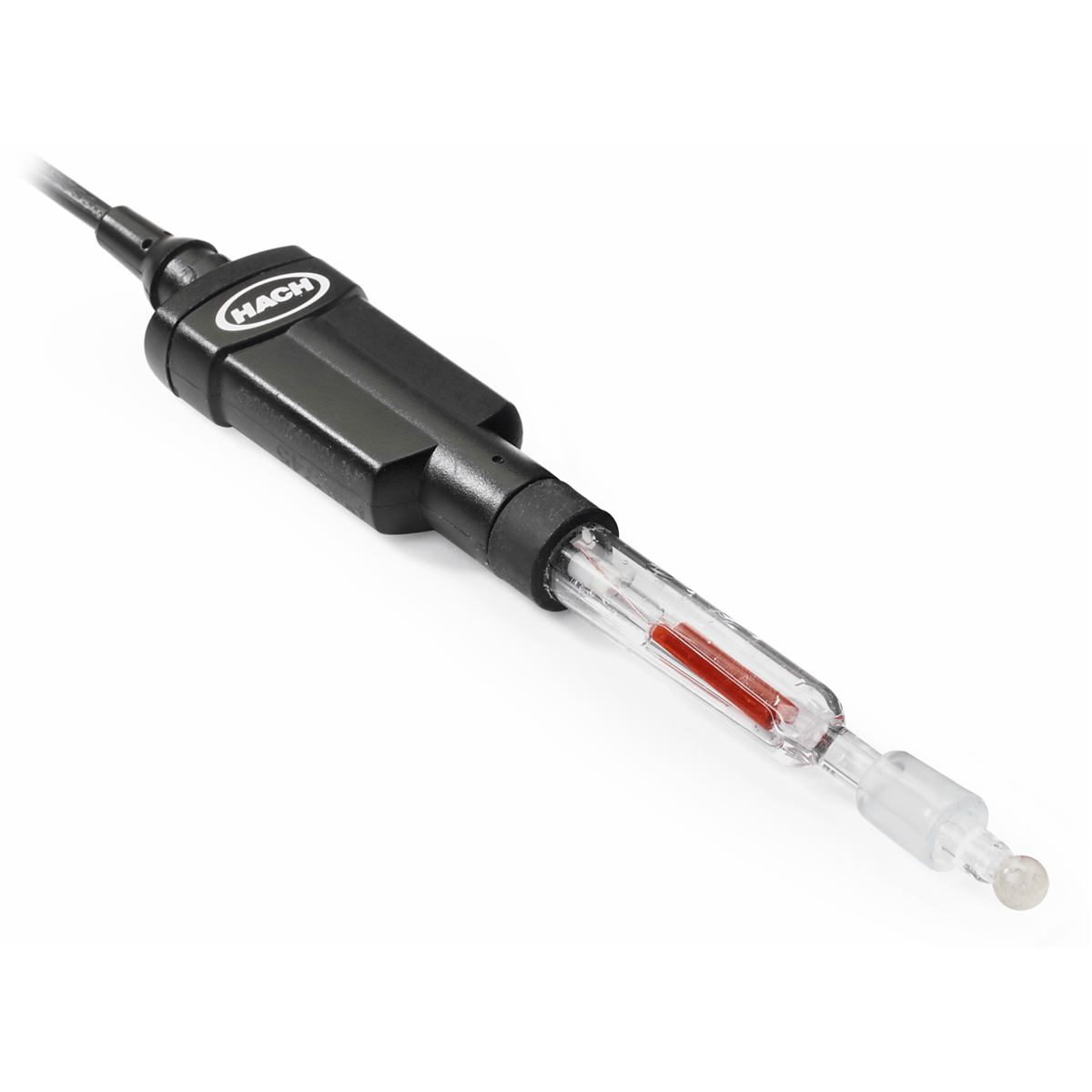

IntelliCALⓇ PHC745 is a digital combination pH electrode with built-in temperature sensor. The PHC745 is a pH refillable electrode with a reverse sleeve reference junction embedding the RedRod technology to deliver exceptionally fast, stable, and accurate response times for accurate measurements within a wide temperature range. Thanks to its easy to clean and high flow reverse sleeve reference junction this high performance laboratory glass pH electrode is ideal for measuring pH in samples prone to clogging traditional reference junctions such as wastewater influents, emulsions and viscous liquids. A 59-mL bottle of saturated KCl Electrode Filling Solution is included with the probe. The PHC745 is not suitable for use with organic solvents or high alkaline sample types.
- Symmetry between internal and external Red Rod reference elements ensures that the iso pH is the same as the zero pH
- Red Rod encapsulation of reference elements means no silver ions and less risk of clogged junctions
- Ideal for a multi-user environment with multiple HQD series laboratory and portable meters.
- Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number.
Temperature range | –10 - 100 °C (14 - 212 °F) |
Special features | Clogging Media |
Junction | Reverse Sleeve Junction |
Parameters | pH |
Sample Depth | 18 mm (0.71 in.) |
Resolution | 0.001/0.01/0.1 |
Warranty | 12 months |
Weight | 1.0300 |
Filling solution | Saturated KCl (#25118026) |
Electrode Type | RedRod / Refillable Reference Element / High Flow |
Sensor Material | Glass |
Reference System | Red Rod |
Temperature Accuracy | ±0.3 °C (±0.54 °F) |
Temperature Resolution | 0.1 °C (0.18 °F) |
Sensor type | pH Glass |
Thermistor | ATC |
Method Type | Laboratory: RedRod / Refillable Reference Element / High Flow |
Accuracy | ±0.01 pH |
Probe type | Standard |
Product Kit | Model: PHC745 Accessories Included: None |
