Hach IntelliCAL PHC705 Lab General Purpose RedRod Refillable Glass pH Electrode, 1 m Cable, PHC70501
Description

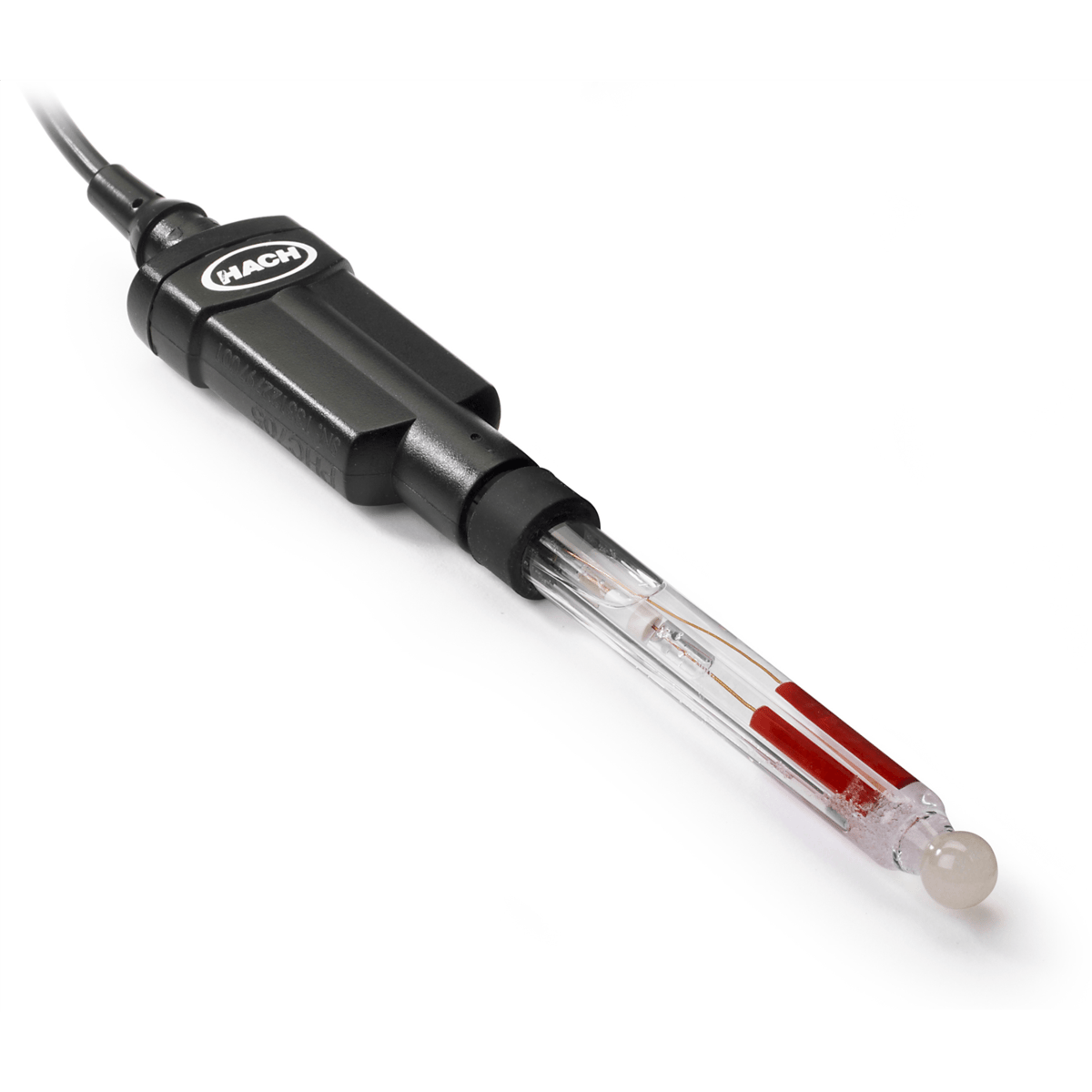

IntelliCAL® PHC705 is a digital combination pH electrode with built-in temperature sensor. The PHC705 is a pH refillable electrode with ceramic porous pin reference junction embedding the RedRod technology to deliver exceptionally fast, stable, and accurate response times for accurate measurements within a wide temperature range. This high performance laboratory glass pH electrode is ideal for measuring pH in a variety of laboratory applications for aqueous samples. A 59-mL bottle of saturated KCl Electrode Filling Solution is included with the probe. The PHC705 is not suitable for use with organic solvents, emulsions, samples with high solids content or high alkaline sample types.
Features

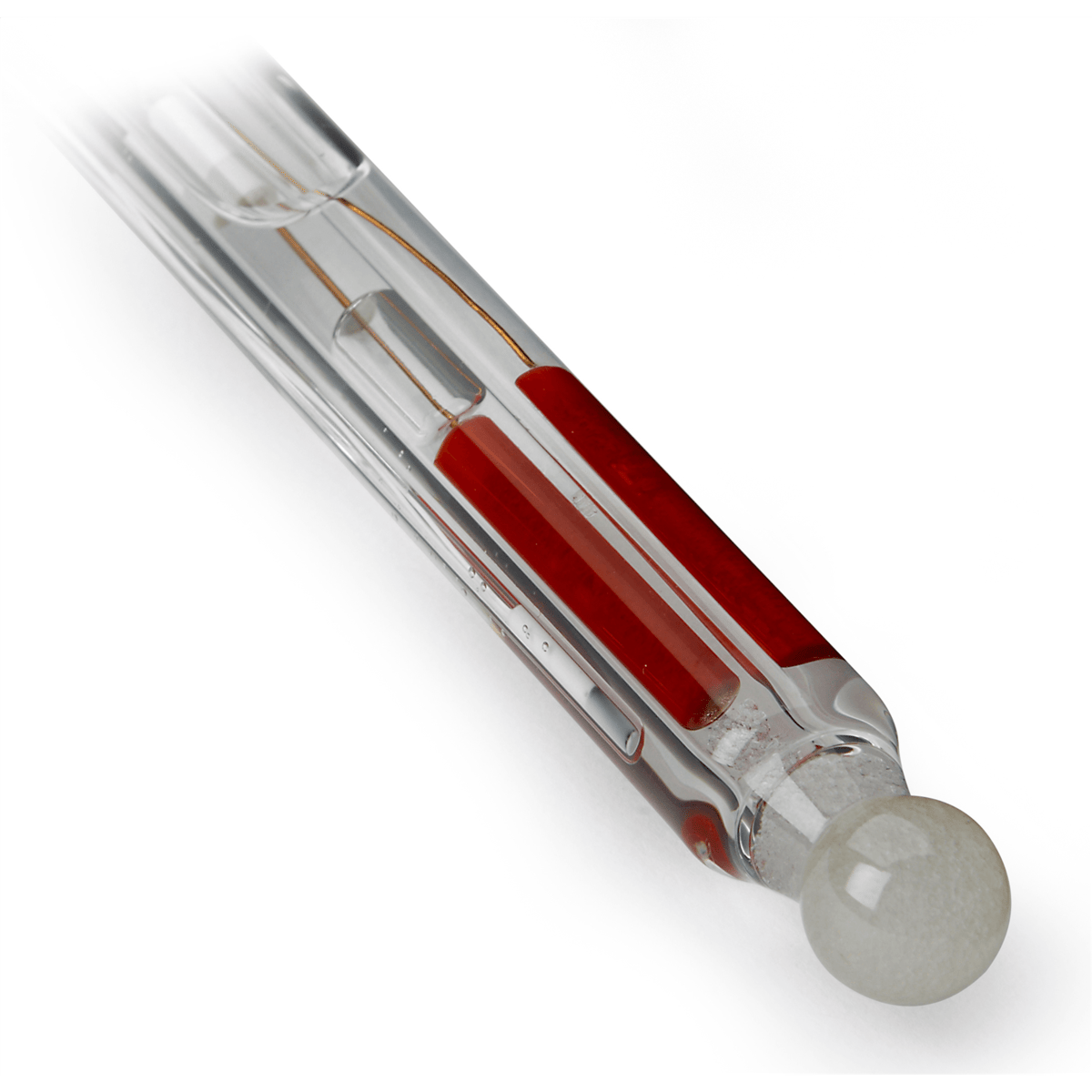

- Symmetry between internal and external Red Rod reference elements ensures that the iso pH is the same as the zero pH, providing highly reproducible results and a fast, accurate response, even in samples with fluctuating temperatures. Red Rod technology also provides a stable signal by protecting the reference elements from light interference, and the saturated KCl salt-bridge aids in creating a stable liquid junction potential.
- Red Rod encapsulation of reference elements means no silver ions and less risk of clogged junctions. It also enables accurate measurements over a broader temperature range than standard electrodes.
- Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters.
- Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number.
Includes
IntelliCAL PHC705 Laboratory pH electrode with storage soaker bottle, 1 m cable, 59-mL bottle reference electrolyte filling solution (Saturated KCl solution), Test certificate, and Basic User Manual.
Product Specifications
Probe type | Standard |
Resolution | 0.001/0.01/0.1 |
Sensor type | pH Glass |
Filling solution | Saturated KCl (#25118026) |
Electrode Type | RedRod / Refillable Reference Element |
Temperature Resolution | 0.1 °C (0.18 °F) |
Thermistor | ATC |
Accuracy | ±0.01 pH |
Junction | Porous Pin Junction |
Sensor Material | Glass |
Sample Depth | 18 mm (0.71 in.) |
Reference System | Red Rod |
Product Kit | Model: PHC705 Accessories Included: None |
Temperature Accuracy | ±0.3 °C (±0.54 °F) |
Method Type | Laboratory: RedRod / Refillable Reference Element |
Temperature range | –10 - 100 °C (14 - 212 °F) |
Parameters | pH |
Warranty | 12 months |
