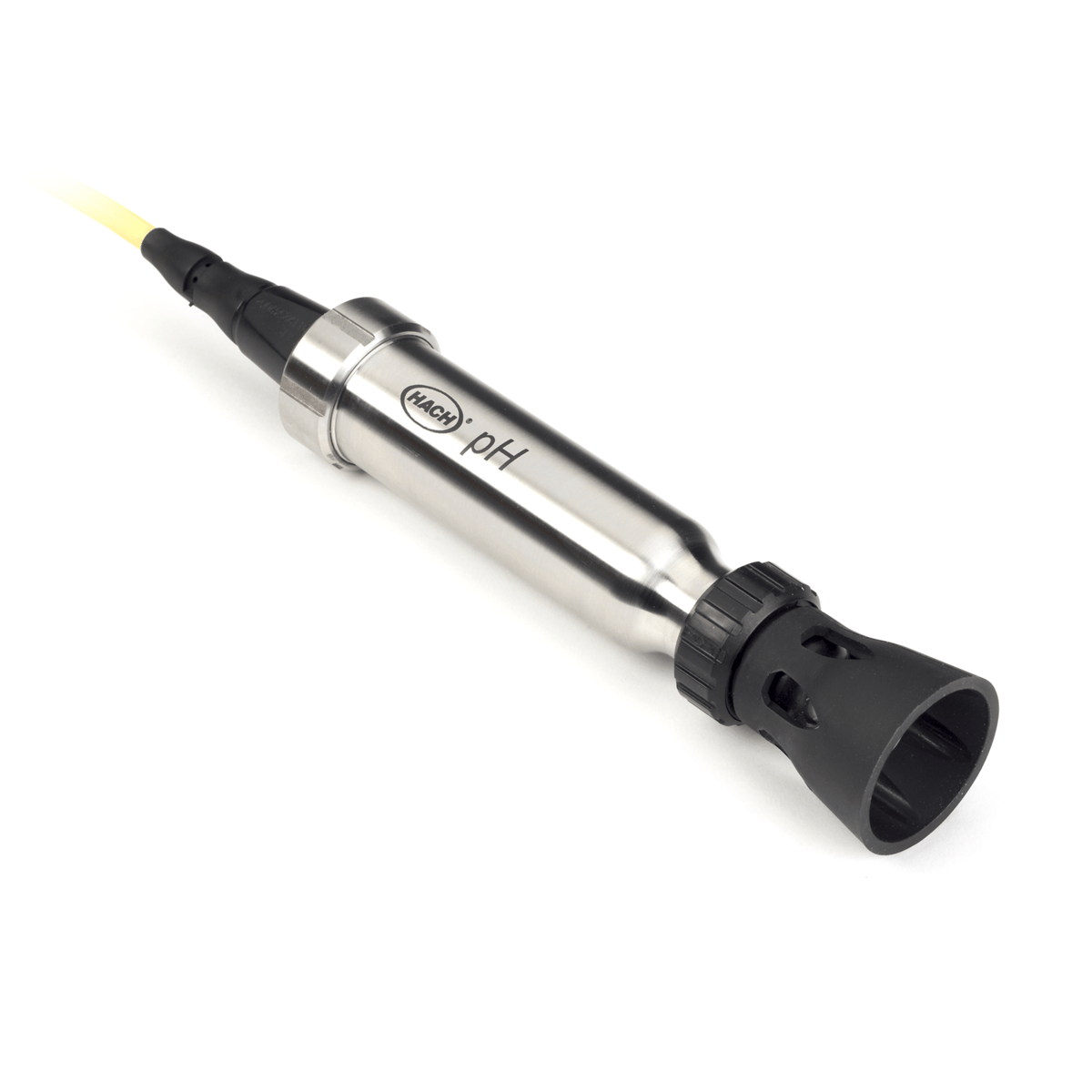

IntelliCALⓇ PHC101 is a digital combination pH electrode with built-in temperature sensor. PHC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction. This Rugged PHC101 version is built with a stainless steel body ensuring sufficient weight to the probe for an easy outside handling, the pH sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow coloured cable onto which you can clip depth markers (optional accessories), making the PHC101 rugged models specially designed for field use. PHC101 Rugged is available with a 5, 10, 15, or 30 meters cable. The PHC101 Rugged is ideal for measuring pH in all types of external environment such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes.
- Stainless steel body, polymer sensor shroud, and reinforced, steel-sheathed cables protect the probe for measurement anywhere in the field.
- Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number.
- No guesswork needed to provide the most reliable and accurate results with each measurement.
- Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters.
Probe type | Rugged |
Resolution | 0.001/0.01/0.1 |
Sensor type | pH Glass |
Water Resistance | IP67, waterproof for 24 hours at a depth of 30 meters |
Special features | Double junction reference |
Electrode Type | Non-Refillable Gel Reference Element |
Temperature Resolution | 0.1 °C (0.18 °F) |
Thermistor | ATC |
Accuracy | ±0.02 pH |
Junction | Open Junction |
Weight | 4.2200 |
Sensor Material | Zeonor™/ Stainless Steel |
Sample Depth | 20 mm (0.79 in.) |
Reference System | Ag/AgCl |
Product Kit | Model: PHC101 Accessories Included: None |
Temperature Accuracy | ±0.3 °C (±0.54 °F) |
Method Type | Field: Non-Refillable Gel Reference Element |
Temperature range | 0 - 50 °C (32 - 122 °F) |
Parameters | pH |
Warranty | 6 months |
