Hach IntelliCAL MTC101 Laboratory Low Maintenance Gel Filled ORP/RedOx Electrode, 3 m Cable,MTC10103
Accessories
Description

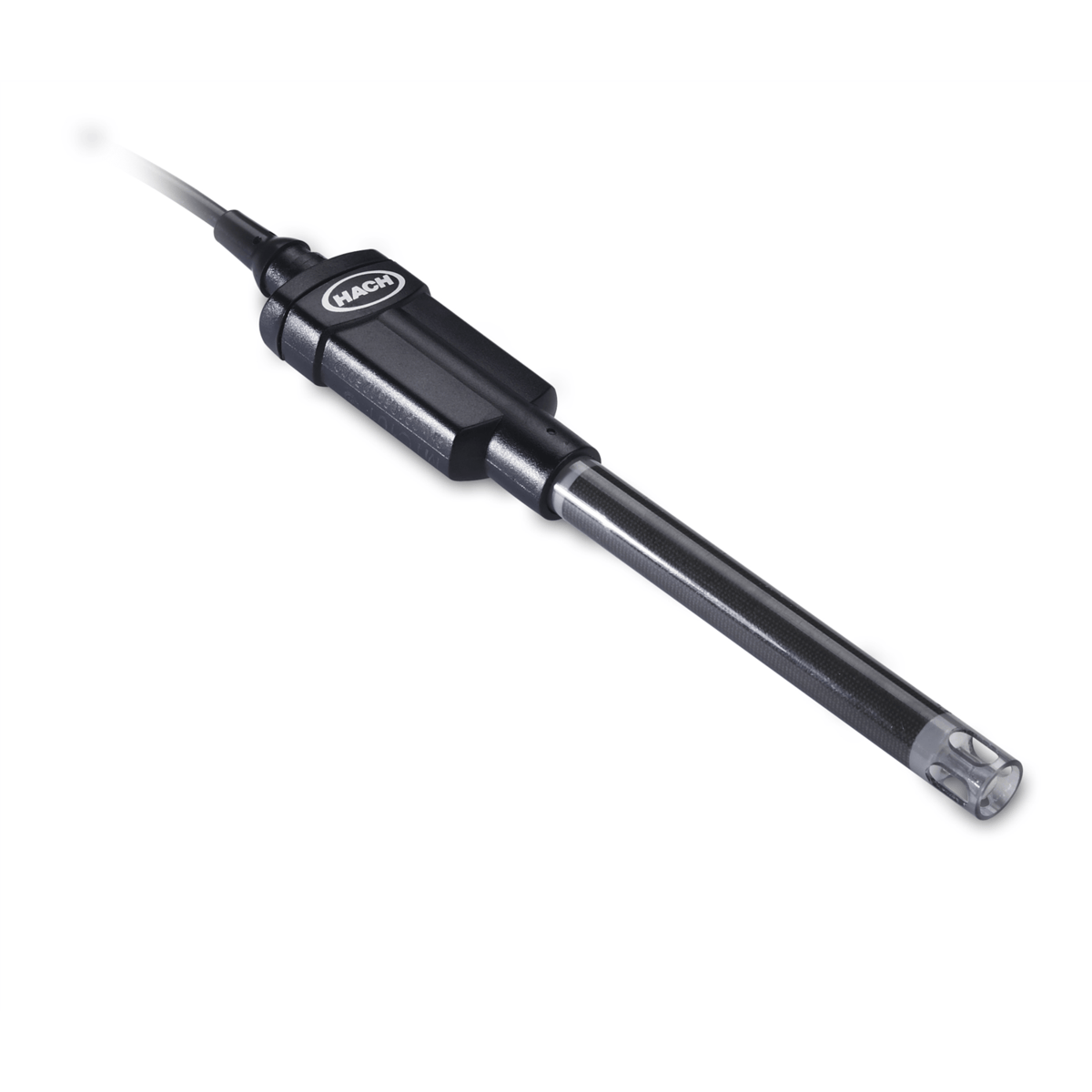

IntelliCALⓇ MTC101 is a digital, combination oxidation reduction potential (ORP/Redox) electrode with a non-refillable, gel-electrolyte reference and built-in temperature sensor. MTC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction. The laboratory version of this metallic electrode is shockproof with its epoxy plastic body protecting down to the platinum sensing element. The Electrode is available with a 3 or 1 m cable. The MTC101 electrode is ideal for measuring ORP/RedOx absolute mV values in wastewater, drinking water and aqueous media applications. The MTC101 is not suitable for use with organic solvents.
Features
- IntelliCAL digital probes lock on the result when the measurement is stable, removing the guesswork in having a moving number
- Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
- No guesswork needed to provide most reliable and accurate results with each measurement.
- Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters
Product Specifications
Warranty | 6 months |
Probe type | Standard |
Resolution | ±0.1 mV |
Sensor type | Platinum disc |
Special features | Flat disc sensor for easy cleaning. |
Electrode Type | Non-Refillable Gel Reference Element |
Temperature Resolution | 0.1 °C (0.18 °F) |
Thermistor | ATC |
Accuracy | ±0.02 mV or 0.05%, whichever is greater |
Junction | Open Junction |
Weight | 2.0900 |
Sensor Material | Epoxy |
Sample Depth | 20 mm (0.79 in.) |
Reference System | Ag/AgCl |
Product Kit | Model: MTC301 Accessories Included: None |
Temperature Accuracy | ±0.3 °C (±0.54 °F) |
Method Type | Field: Non-Refillable Gel Reference Element |
Temperature range | 0 - 80 °C (32 - 176 °F) |
Parameters | ORP |
