Hach IntelliCAL MTC101 Field Low Maintenance Gel Filled ORP/RedOx Electrode, 5 m Cable, MTC10105

By Hach
$991.00 | EA
Product #: 700043
Mfr. Part #: MTC10105

This item is in stock

Back

Description

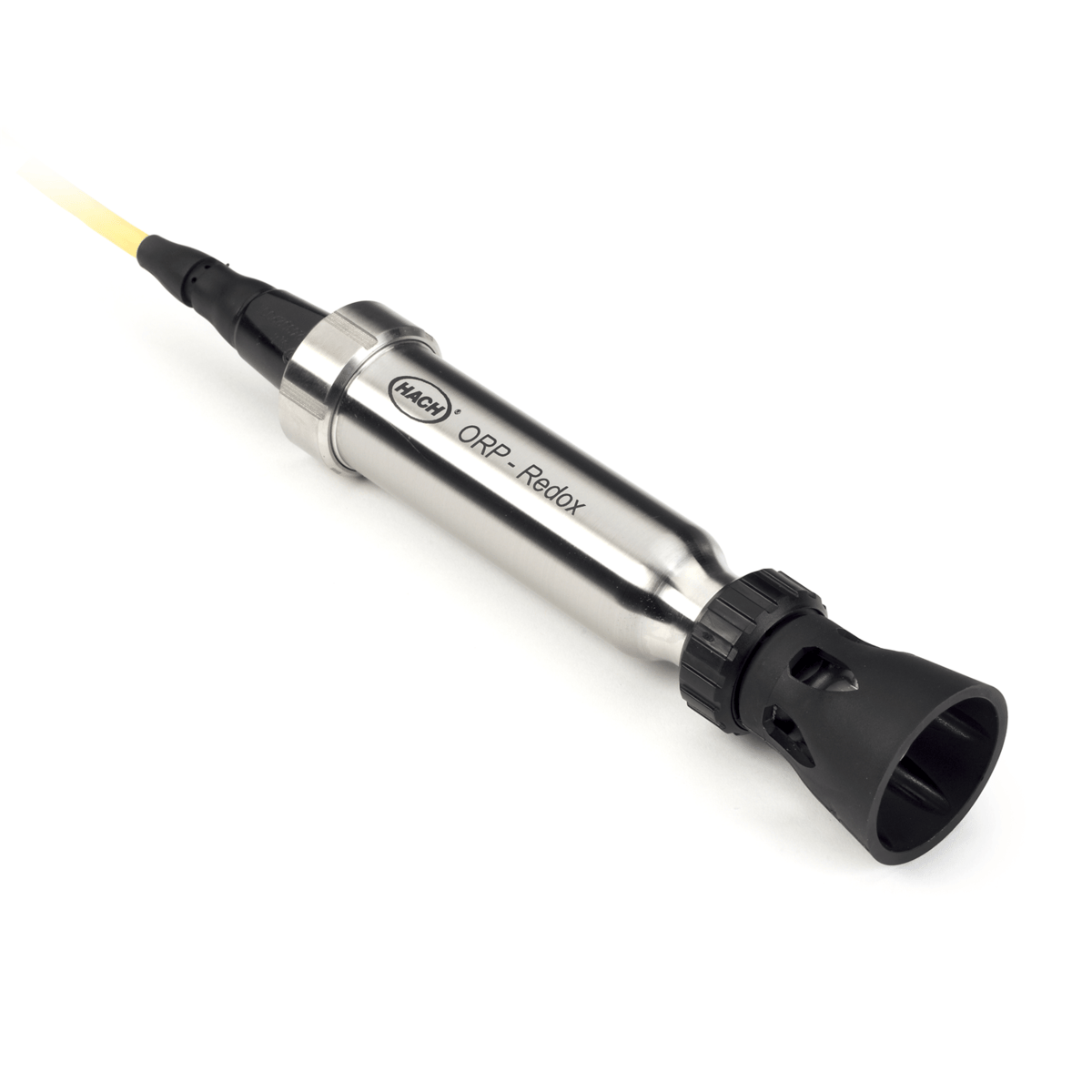

IntelliCAL® MTC101 is a digital combination oxidation reduction potential (ORP/RedOx) electrode with built-in temperature sensor. MTC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction. This Rugged MTC101 version is built with a stainless steel body ensuring sufficient weight to the probe for an easy outside handling, the Metal Platinum sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow coloured cable onto which you can clip depth markers (optional accessories), making the MTC101 rugged models specially designed for field use. MTC101 Rugged is available with a 5, 10, 15, or 30 meters cable. The MTC101 Rugged is ideal for measuring ORP/RedOx absolute mV values in all types of external environment such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes.

Features

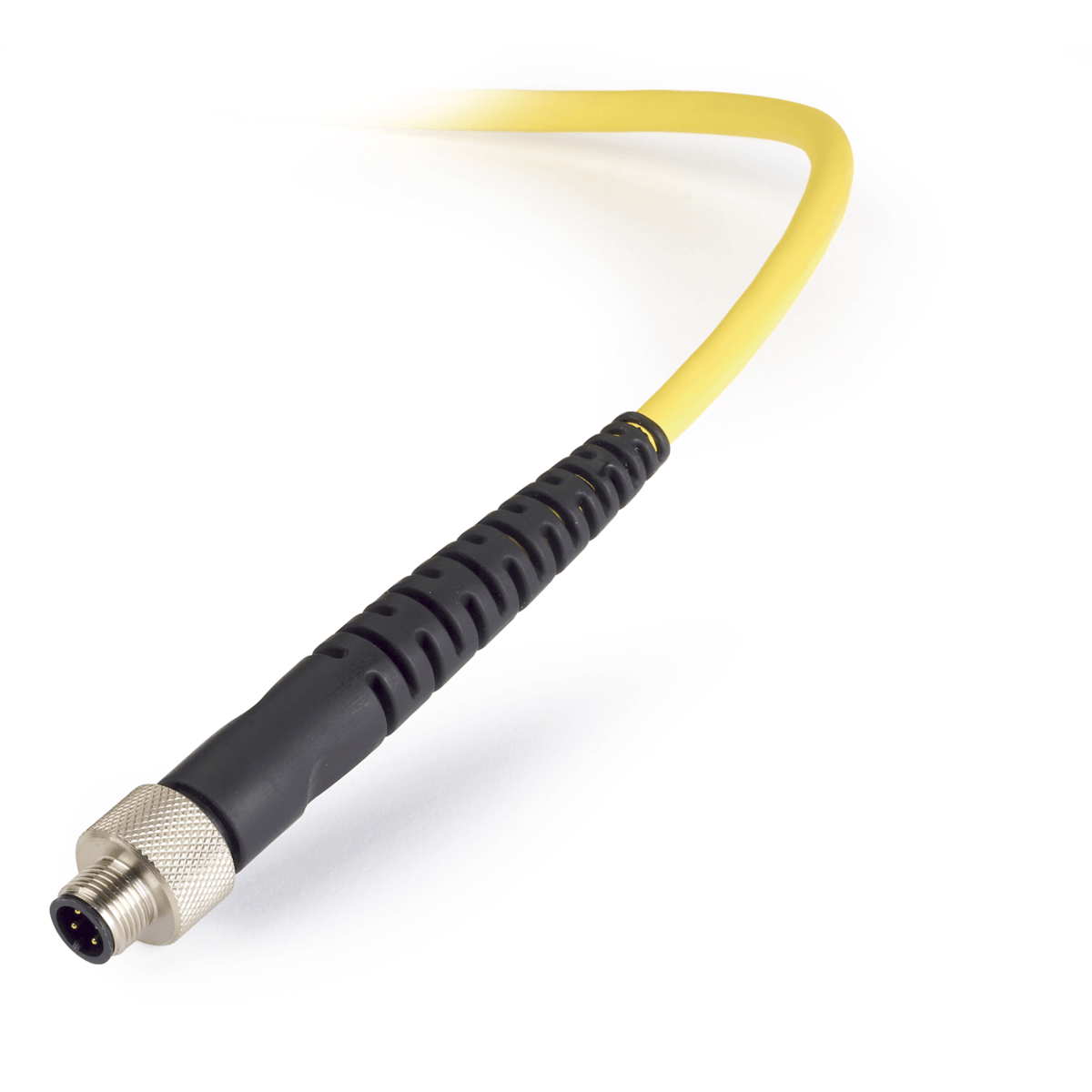

  • Stainless steel body, polymer sensor shroud, and reinforced, steel-sheathed cables protect the probe for measurement anywhere in the field

  • Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number

  • No guesswork needed to provide most reliable and accurate results with each measurement.

  • Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters

Includes

IntelliCAL MTC101 Rugged ORP/RedOx electrode with storage cap, 5 m cable, Test certificate, and Basic User Manual.

Product Specifications

Probe type Rugged
Resolution ±0.1 mV
Sensor type Platinum disc
Water Resistance IP67, waterproof for 24 hours at a depth of 30 meters
Special features Flat disc sensor for easy cleaning.
Electrode Type Non-Refillable Gel Reference Element
Temperature Resolution 0.1 °C (0.18 °F)
Thermistor ATC
Accuracy ±0.02 mV or 0.05%, whichever is greater
Junction Open Junction
Sensor Material Epoxy / Stainless Steel
Sample Depth 20 mm (0.79 in.)
Reference System Ag/AgCl
Product Kit Model: MTC101 Accessories Included: None
Temperature Accuracy ±0.3 °C (±0.54 °F)
Method Type Field: Non-Refillable Gel Reference Element
Temperature range 0 - 80 °C (32 - 176 °F)
Parameters ORP
Warranty 6 months
