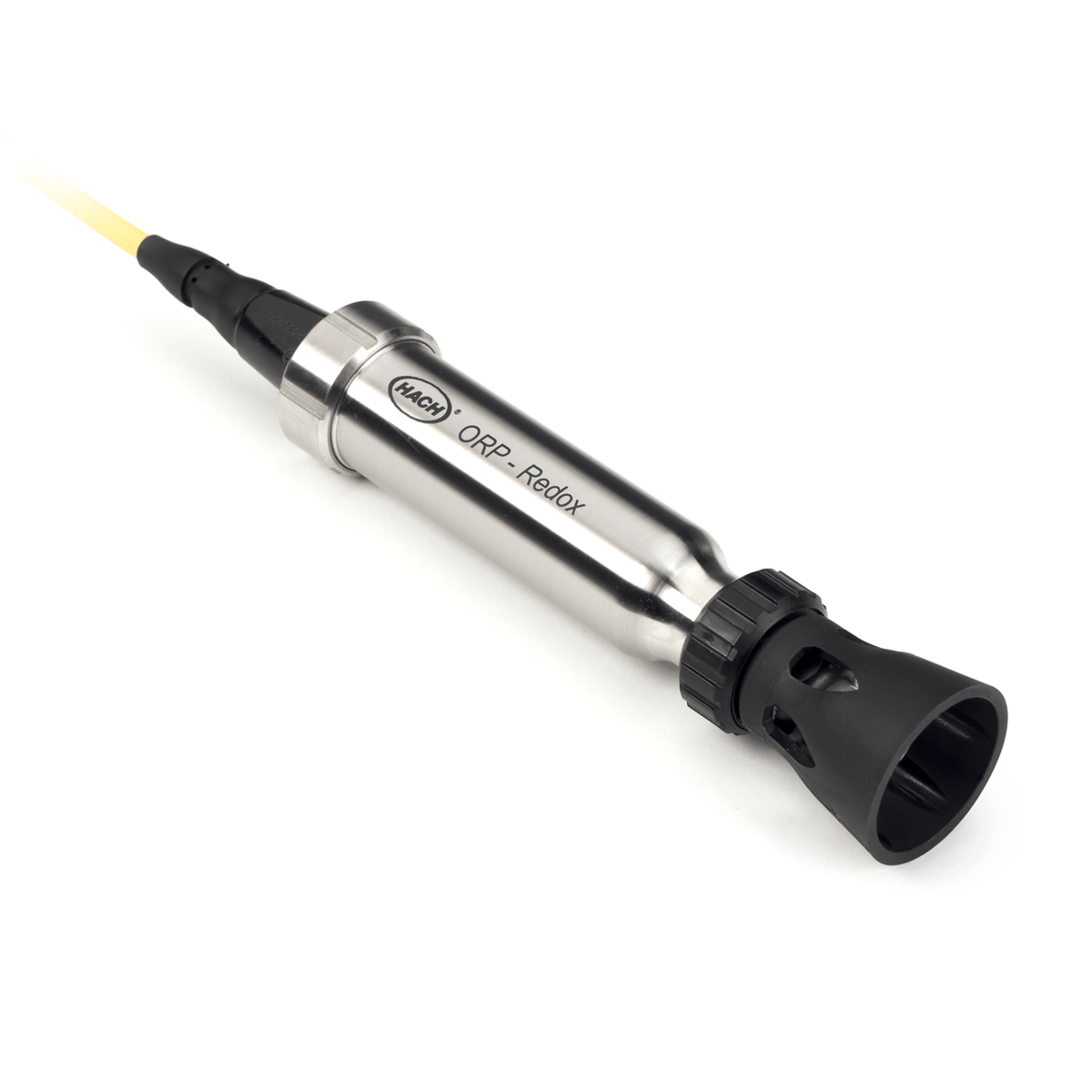

IntelliCALⓇ MTC101 is a digital combination oxidation reduction potential (ORP/RedOx) electrode with built-in temperature sensor. MTC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction. This Rugged MTC101 version is built with a stainless steel body ensuring sufficient weight to the probe for an easy outside handling, the Metal Platinum sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow coloured cable onto which you can clip depth markers (optional accessories), making the MTC101 rugged models specially designed for field use. MTC101 Rugged is available with a 5, 10, 15, or 30 meters cable. The MTC101 Rugged is ideal for measuring ORP/RedOx absolute mV values in all types of external environment such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes.
- Stainless steel body, polymer sensor shroud, and reinforced, steel-sheathed cables protect the probe for measurement anywhere in the field
- Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
- No guesswork needed to provide most reliable and accurate results with each measurement.
- Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters
Probe type | Rugged |
Resolution | ±0.1 mV |
Sensor type | Platinum disc |
Water Resistance | IP67, waterproof for 24 hours at a depth of 30 meters |
Special features | Flat disc sensor for easy cleaning. |
Electrode Type | Non-Refillable Gel Reference Element |
Temperature Resolution | 0.1 °C (0.18 °F) |
Thermistor | ATC |
Accuracy | ±0.02 mV or 0.05%, whichever is greater |
Junction | Open Junction |
Weight | 5.7400 |
Sensor Material | Epoxy / Stainless Steel |
Sample Depth | 20 mm (0.79 in.) |
Reference System | Ag/AgCl |
Product Kit | Model: MTC101 Accessories Included: None |
Temperature Accuracy | ±0.3 °C (±0.54 °F) |
Method Type | Field: Non-Refillable Gel Reference Element |
Temperature range | 0 - 80 °C (32 - 176 °F) |
Parameters | ORP |
Warranty | 6 months |
